Asus ROG STRIX B450-E Gaming - Motherboard Layout Diagram and Connectors

1-2
Chapter 1: Product Introduction
Chapter 1
Referto1.1.8 Internal connectorsand2.2.1 Rear I/O connectionformoreinformation
aboutrearpanelconnectorsandinternalconnectors.

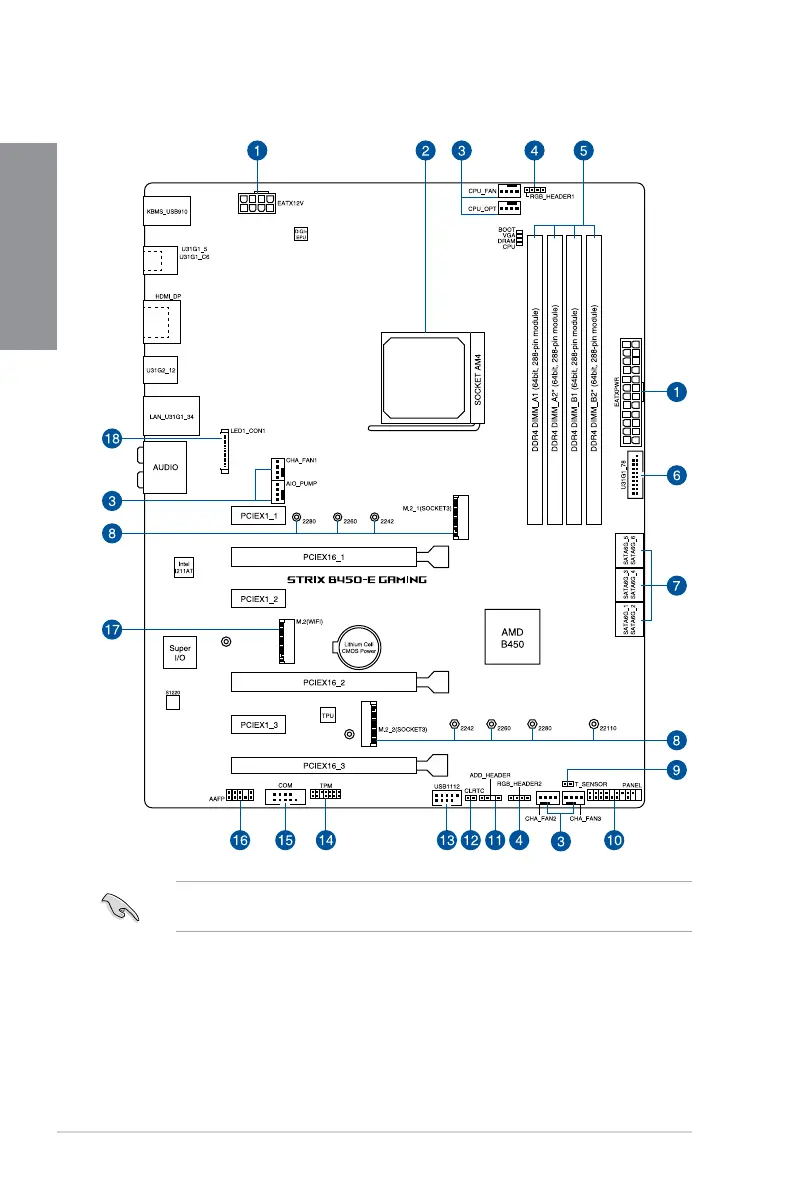

1.1.2 Motherboard layout
