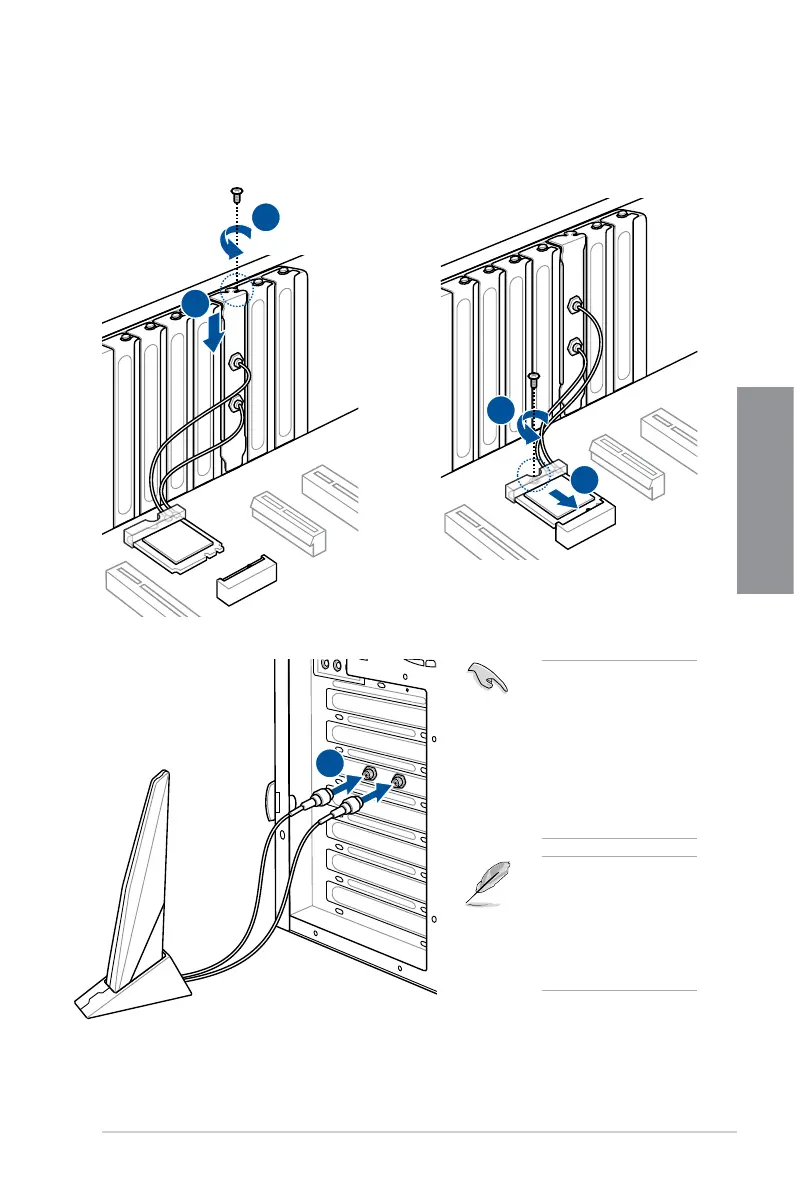

2.1.10 M.2 Wi-Fi module and antenna installation
Installing the M.2 W-Fi Module
1
2
3
4
5
• Ensure that the
ASUS 2x2 dual band
Wi-Fi antenna is
securely installed to
the Wi-Fi ports.
• Ensure that the
antenna is at least
20 cm away from all
persons.
The illustration to the
left is for reference only.
The I/O port layout may
vary with models, but the
Wi-Fi antenna installation
procedure is the same for
all models.
