Chapter 2: Hardware Information
2-12

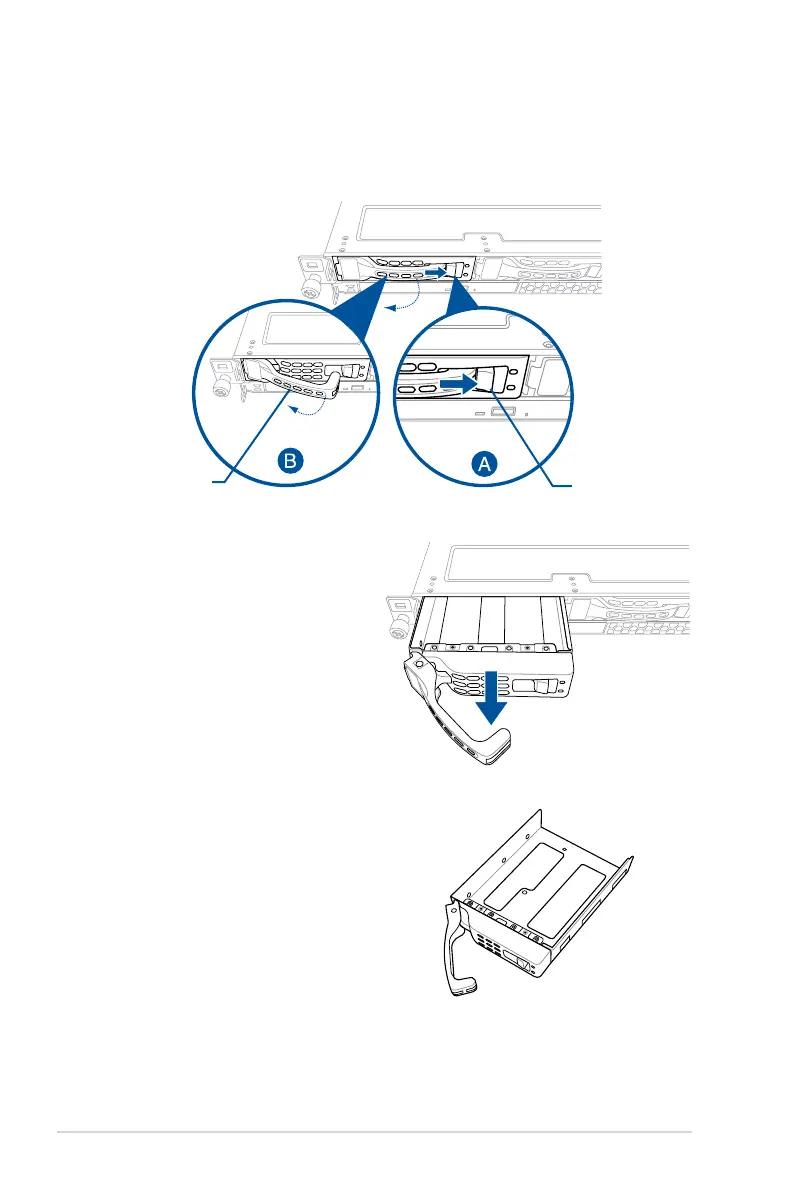

To install a 2.5” storage device to the front panel:
1. Push the spring lock to the right (A) then pull the tray lever outward (B) to release the
drive tray. The drive tray ejects slightly after you pull out the lever.
spring lock
tray lever
2. Firmly hold the tray lever and pull the
tray out of the bay.
3. Place the tray on a at and stable
surface.
4. Prepare the 2.5” storage device and
the bundled set of screws.
