2-25
ASUS RS300-E10 Series

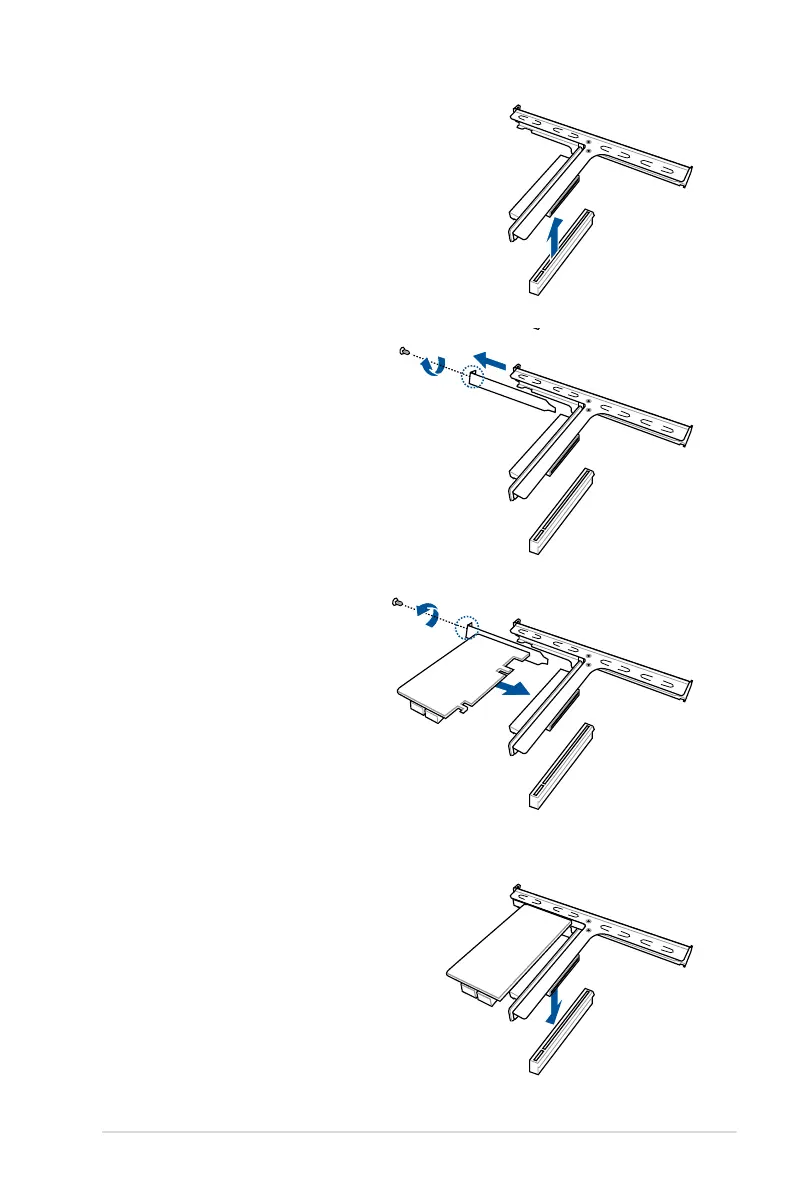

4. Place the riser card bracket on a at
and stable surface, then remove the
screw from the slot bay.
3. Firmly hold the riser card bracket,
then pull it up to detach it from
the PCI Express x16 slot on the
motherboard.
5. Install the ASUS PIKE II card x8 or
x16 card to the bracket as shown.
6. Secure the card with a screw.
2
5
Q-Code
1
Q-Code
1
2
5
Q-Code
1
Q-Code
1
2
5
Q-Code
1
Q-Code
1
2
5
Q-Code
1
Q-Code
1
7. Install the riser card bracket and
PCI Express card assembly back
into the PCI Express x16 slot on the
motherboard.
