Chapter 4: Motherboard Information
4-14

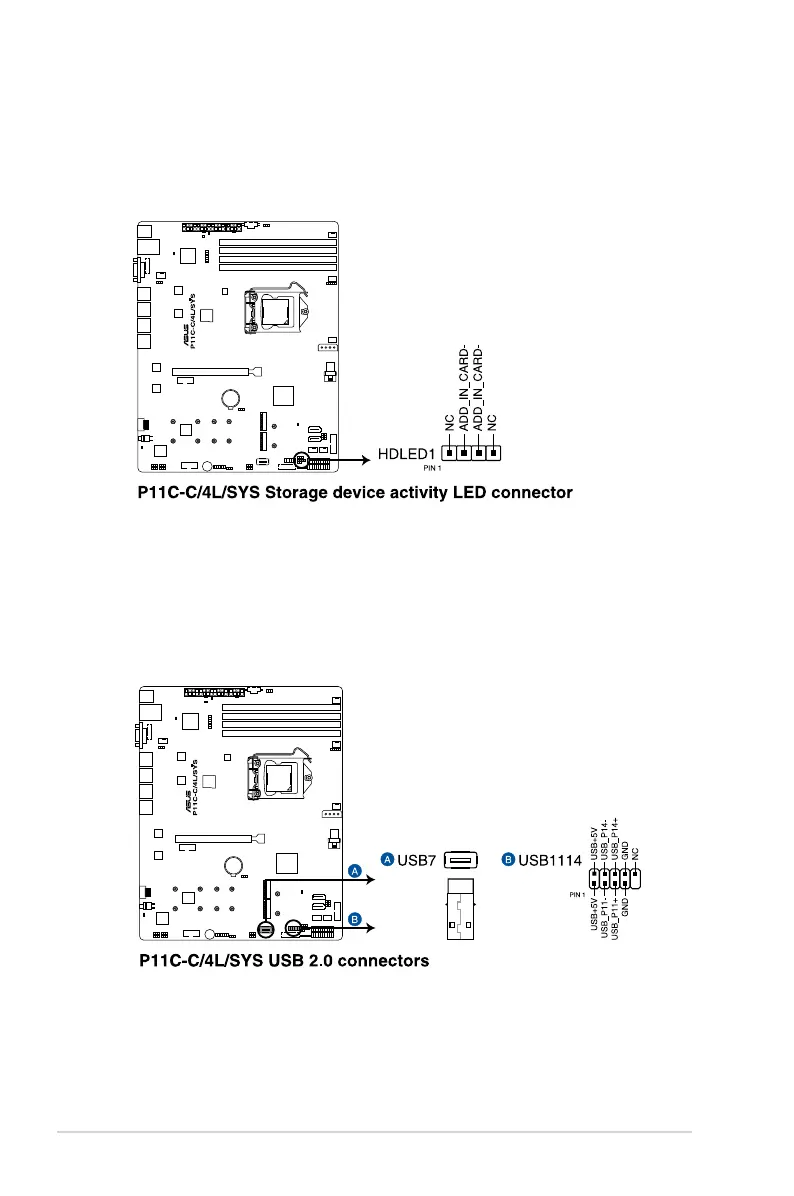

4. Hard disk activity LED connector (4-pin HDLED1)
This LED connector is for the storage add-on card cable connected to the SATA or
SAS add-on card. The read or write activities of any device connected to the SATA or
SAS add-on card causes the front panel LED to light up.
5. USB 2.0 connector (10-1 pin USB1114; 4-pin Type-A USB7)
The 10-1 pin connector allows you to connect a USB 2.0 module for additional USB
2.0 front or rear panel ports. The 4-pin USB (Universal Serial Bus) Type-A port is
available for connecting USB 2.0 devices. These USB connectors comply with USB 2.0
specication that supports up to 480 Mbps connection speed.
