Chapter 4: Motherboard Information
4-18

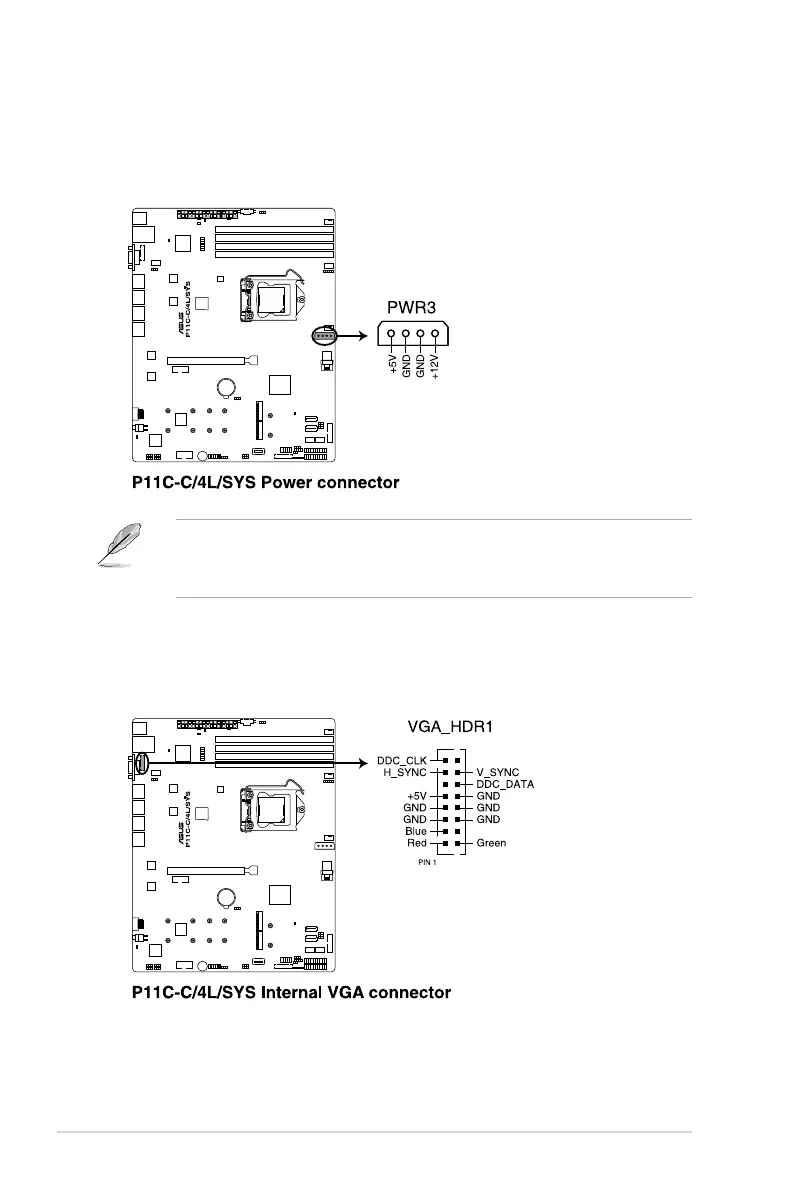

12. SATA DOM power connector (4-pin PWR3)
This 4-pin connector is for 5V power of a certain SATA DOM (Disk on Module) device
when using an appropriate cable.
• The SATA DOM power connector is for output power only. It has a maximum output
current of 1A.
• Ensure that the power of the SATA DOM device that you will use is less than 1A.
13. VGA connector (16 pin VGA_HDR1)
This connector supports the VGA High Dynamic-Range interface.
