Chapter 1: Product introduction1-6

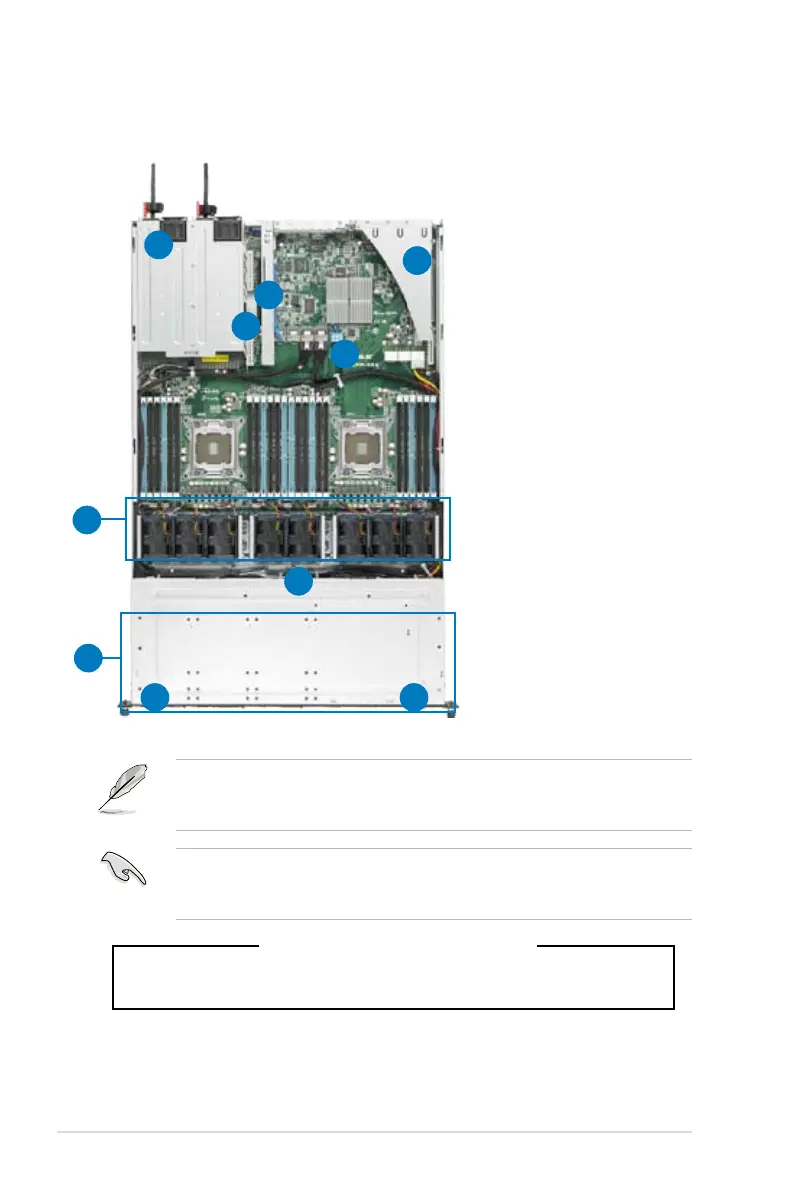

1.6 Internal features
The barebone server includes the basic components as shown.
The barebone server does not include a oppy disk drive. Connect a USB oppy
disk drive to any of the USB ports on the front or rear panel if you need to use a
oppy disk.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
1. Power supply and power
fan
2. PCI-E G3 x16 slot
(x16 link) (FH/HL)
3. PIKE Slot
4. ASUS Z9PP-D24 Server
Board
5. System fans
6. SATA/SAS backplane
(hidden)
7. 4 x HDD trays
8. Front LED Board
(FPB-AR14)
9. Slim-type optical drive
1
4
5
6
7
A protection lm is pre-attached to the front cover before shipping. Please
remove the protection lm before turning on the system for proper heat
dissipation.
2
2
89
3
