Asus RS700-E7/RS4 - SATAII;SAS Backplane Cabling

2-21ASUS RS700-E7/RS4

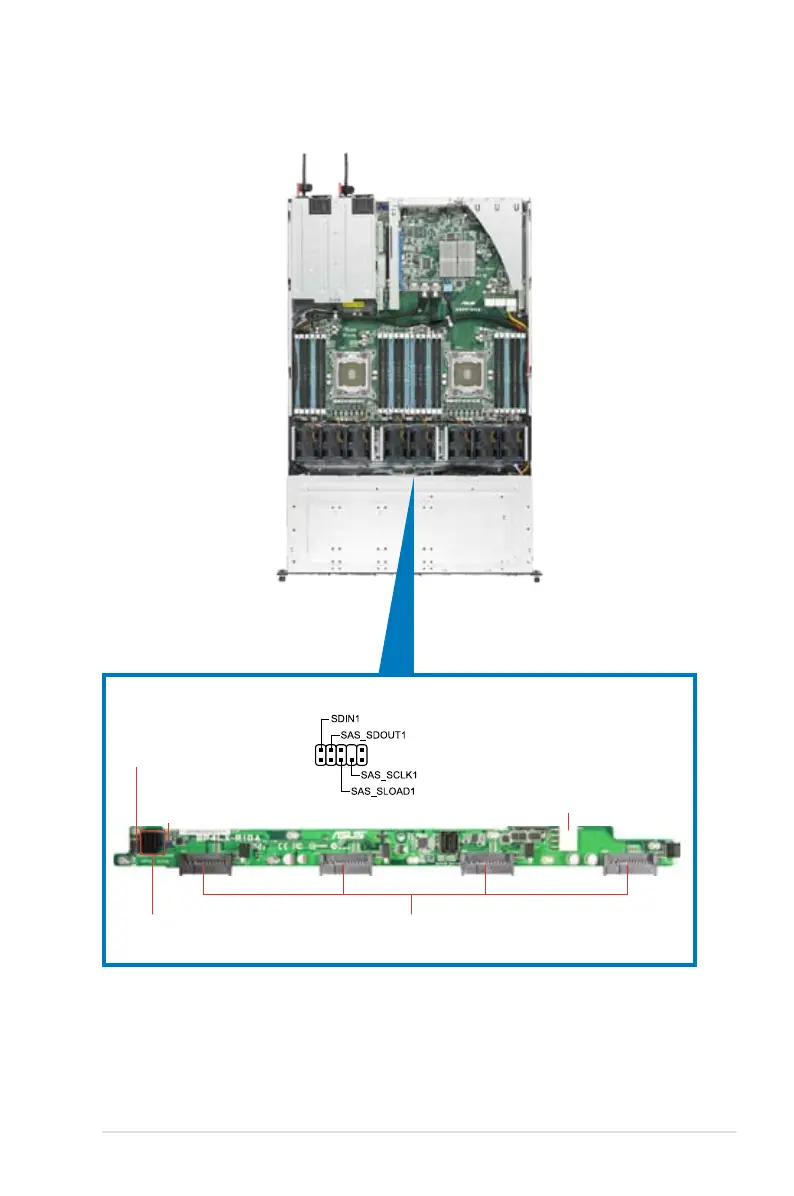

2.7 SATAII/SAS backplane cabling
* For PIKE RAID solution, ensure to connect SAS_SGPIO_CON1 to support PIKE card SAS RAID
function.
Connect the SATAII/SAS HDDsConnects the da ta c ables
connected to the motherboard
SGPIO_SEL jumper:
pins 1-2 (Onboard)
pins 2-3 (Add-on card)
SAS_SGPIO_CON1 connector*
Connects a 8-pin
plug from power
supply
