ASUS RS700-E7/RS4 4-5

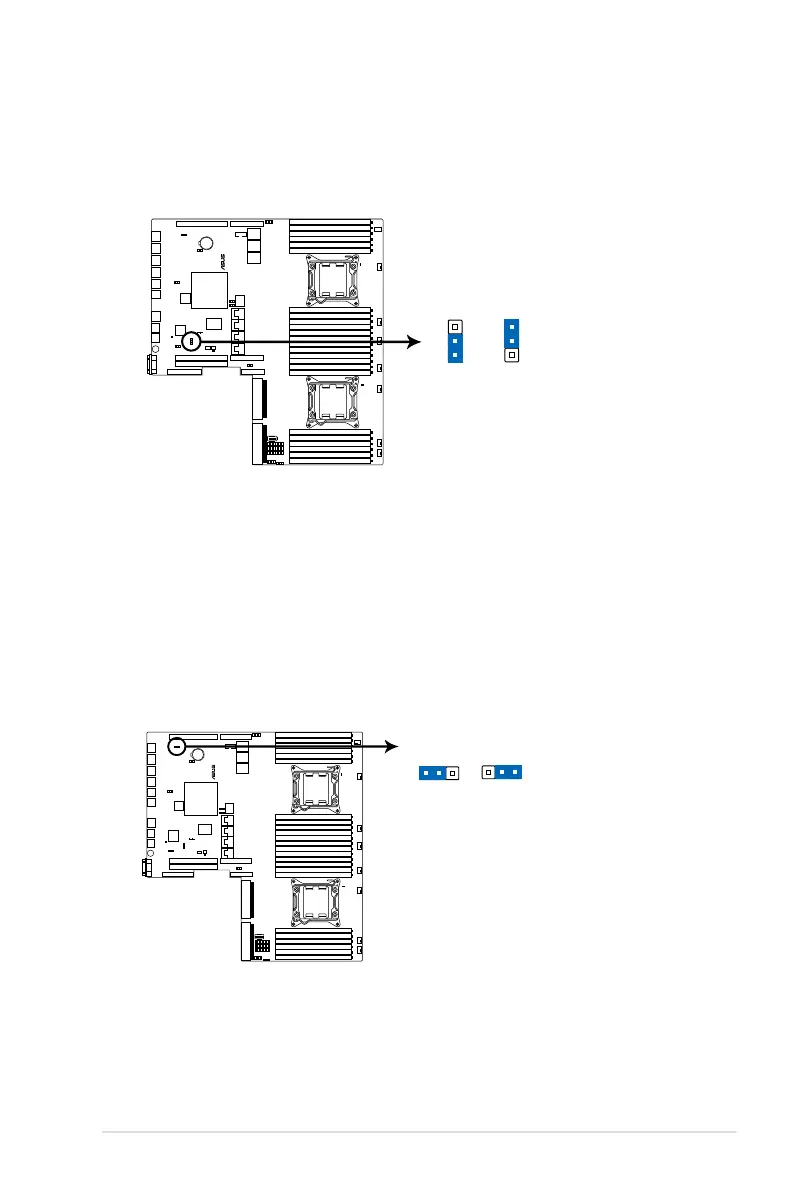

2. VGA controller setting (3-pin VGA_SW1)
This jumper allows you to enable or disable the onboard VGA controller. Set
to pins 1–2 to activate the VGA feature.
®
Z9PP-D24
Z9PP-D24 VGA setting
2
1
PIN1 PIN1
2
3
Enable
(Default)
Disable
VGA_SW1
3. LAN controller setting (3-pin LAN_SW1)
These jumpers allow you to enable or disable the onboard Intel® I350-AM4
Gigabit LAN1/2/3/4 controller. Set to pins 1–2 to activate the Gigabit LAN
feature.
®
Z9PP-D24
Z9PP-D24 LAN setting
2
1
Enable
(Default)
2
3
Disable
LAN_SW1
PIN1 PIN1
