Disassembly Procedure
32

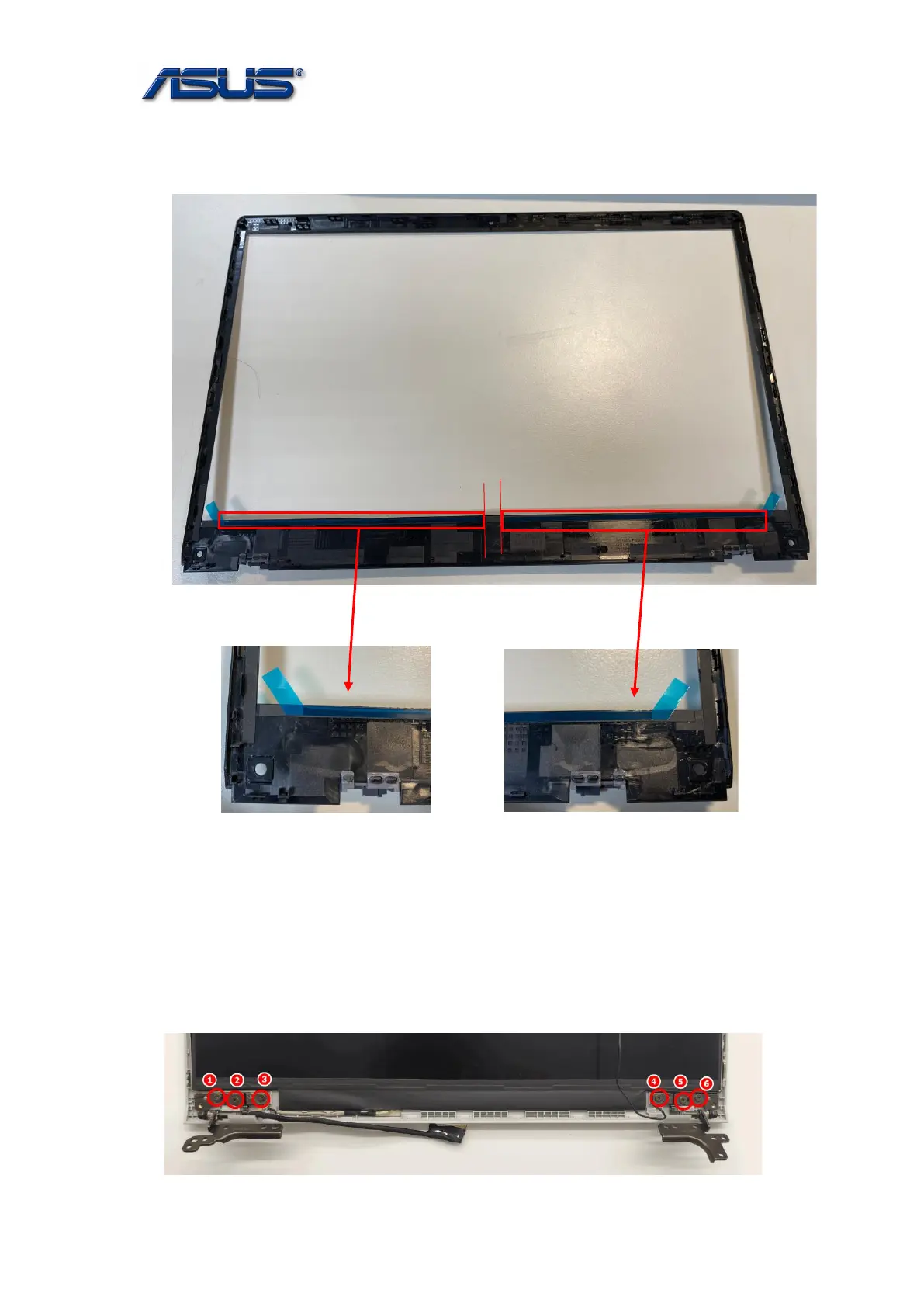

⚫ Assembly Notice:
Please follow the pic below to paste new BEZEL SPONGE *1pc and then paste new
ADHESIVE *2pcs.
Notice:
The ADHESIVE is pasted on the ground side SPONGE, aligned with the central slider
line of the mold in the X direction, and pasted from the inside to the outside.
The double-sided adhesive shall not exceed the SPONGE.
4. Remove 6 screws on the hinge and take out the hinges.
Screw tightening torque (Kg F-cm): 1.85KG±0.15kgf.
