Disassembly Procedure
37

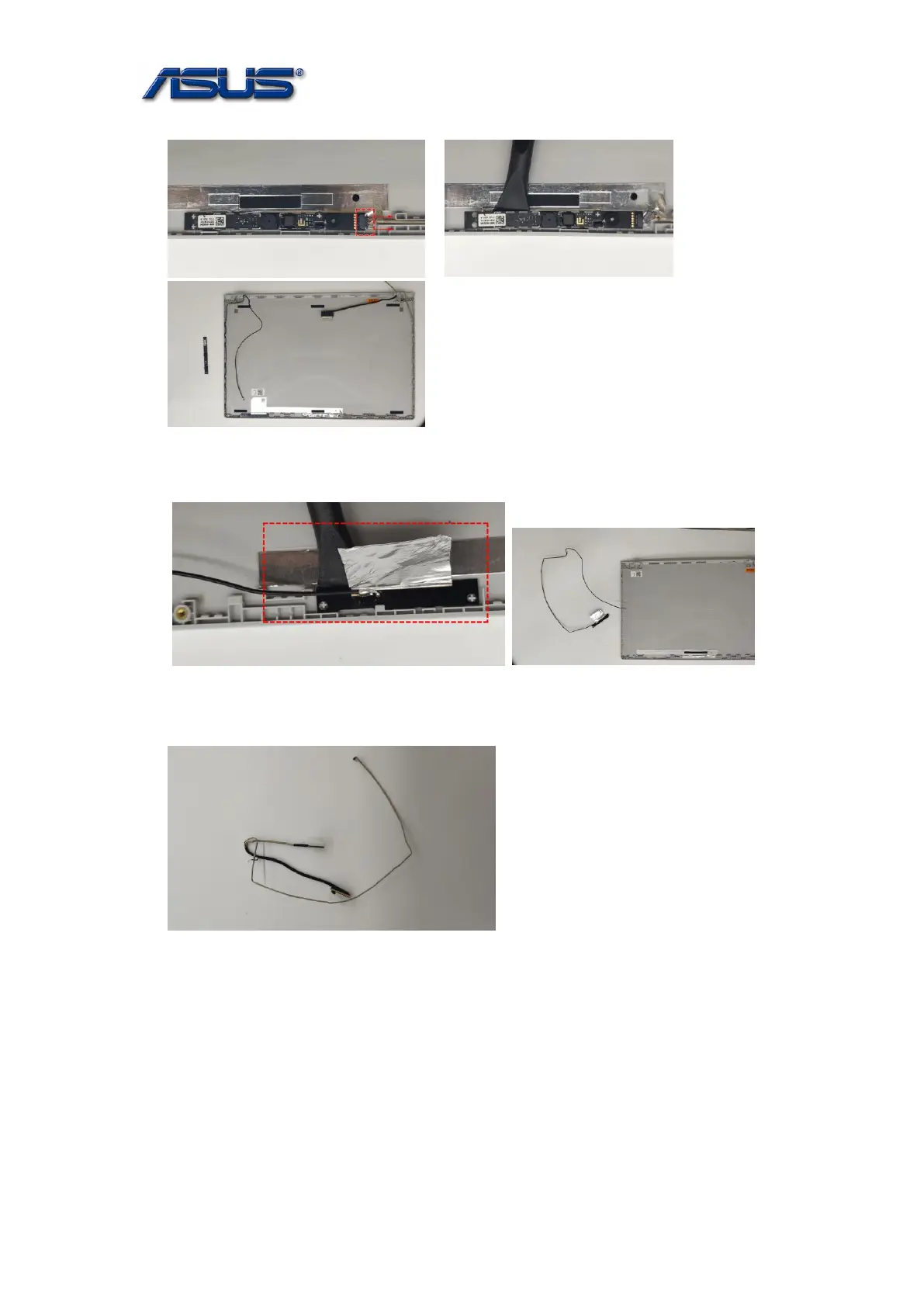

8. Disconnect the camera cable and take out it.
9. Tear off the foil and take out the Antenna Cable .
Assembly Notice: Please well arrange the cable and put it in the hook slot as below.
10. Take out the EDP Cable .
Assembly Notice: Please well arrange the cable and put it in the hook slot as below.
