Disassembly Procedure
38

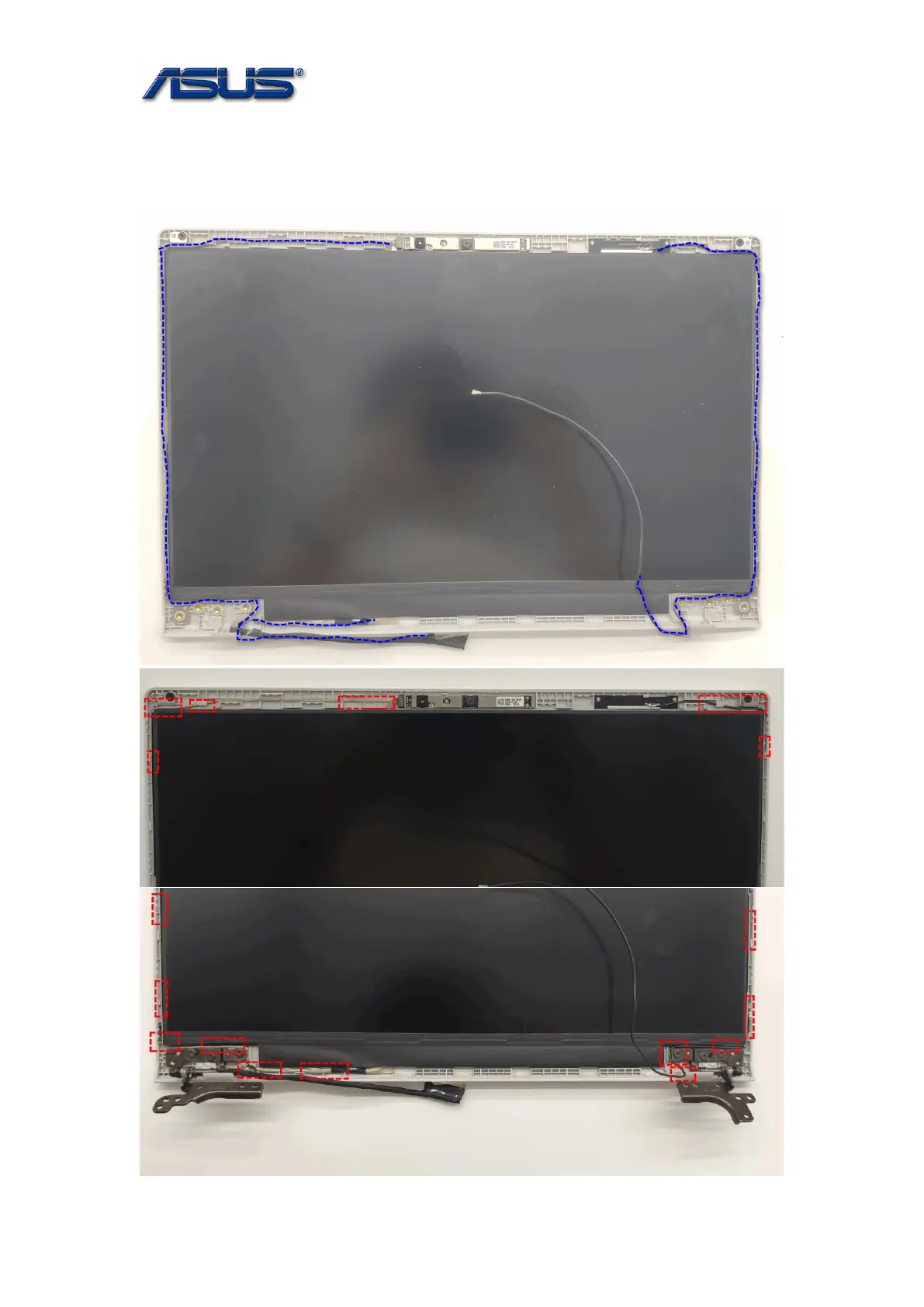

EDP & Antenna Cable Assembly Notice:
Please well arrange the EDP & Antenna Cable and put them in the hook slot as below.
The cable path is shown in the blue dotted line.
The cable should be in the hook as red box .
