Asus Xonar U7 - 4.2.2 Connecting 5.1 channel headphones

14
ASUS Xonar U7 User Manual
English
No. Items Description
1. Front (R) Out port Connects to the front right input port of 5.1 channel
headphones using the RCA cable.
2. Front (L) Out port Connects to the front left input port of 5.1 channel
headphones using the RCA cable.
3. Center/Subwoofer
Out port
Connect the Center/Bass-channel 3.5mm plug of your
5.1 channel headphone into this jack.
4. Rear Surround
Out port
Connects to the rear surround input port of your 5.1
channel headphone.

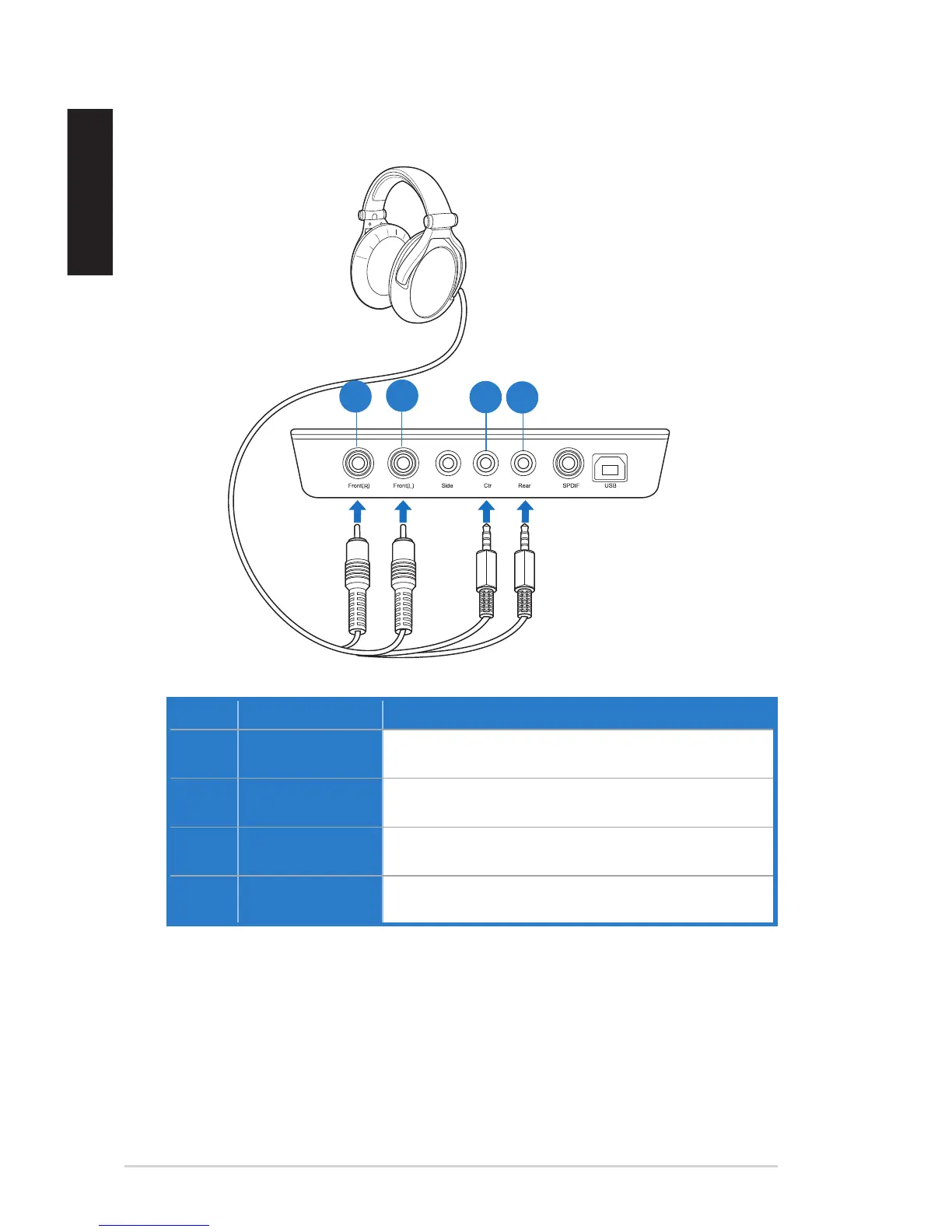

4.2.2 Connecting 5.1 channel headphones
