ASUS Xonar U7 User Manual
English
4.2.3 Connecting analog speaker systems

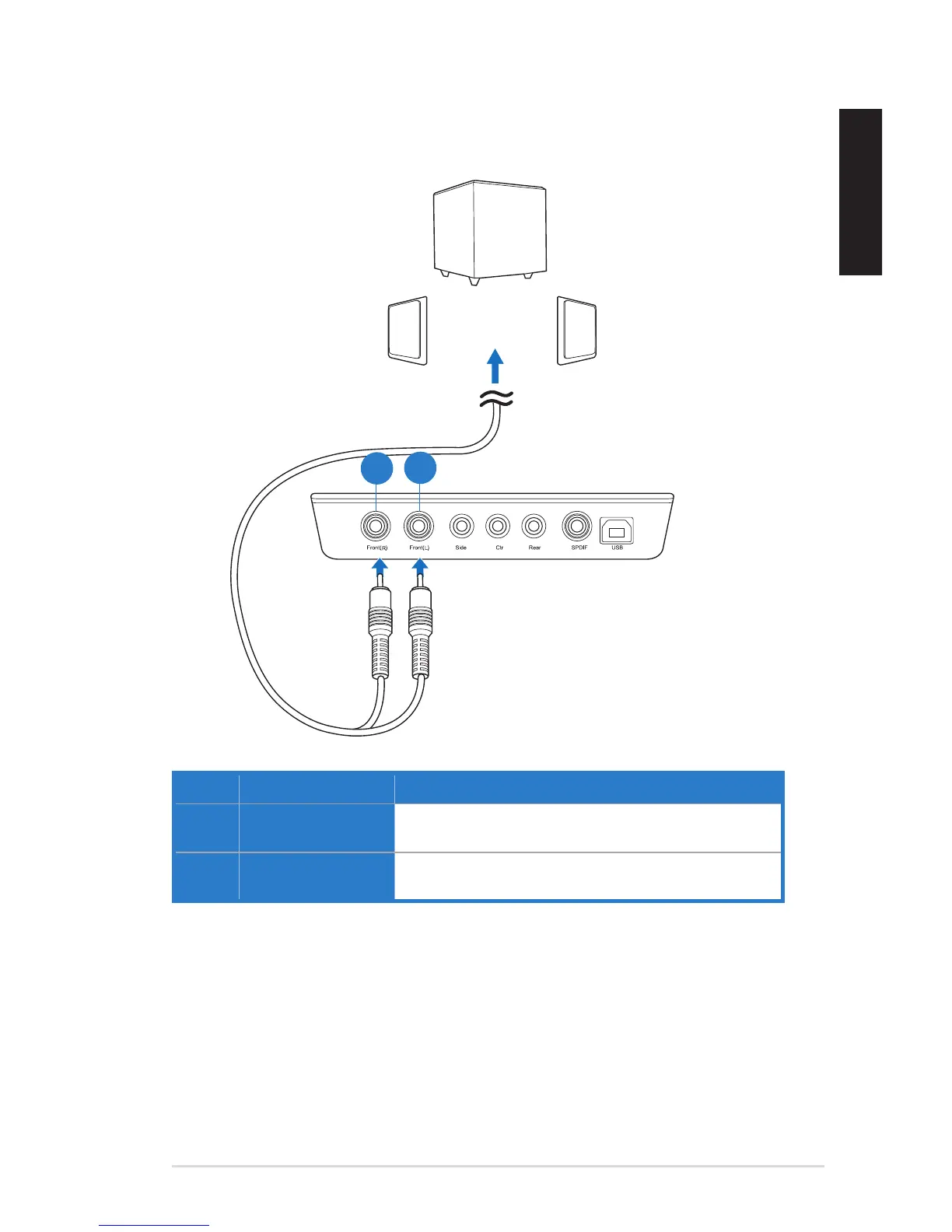

Connecting 2 channel speakers
No. Items Description
1. Front (R) Out port Connects to the front right input port of 2 channel
speakers using the RCA cable.
2. Front (L) Out port Connects to the front left input port of 2 channel
speakers using the RCA cable.
