ASUS Xonar U7 User Manual
English

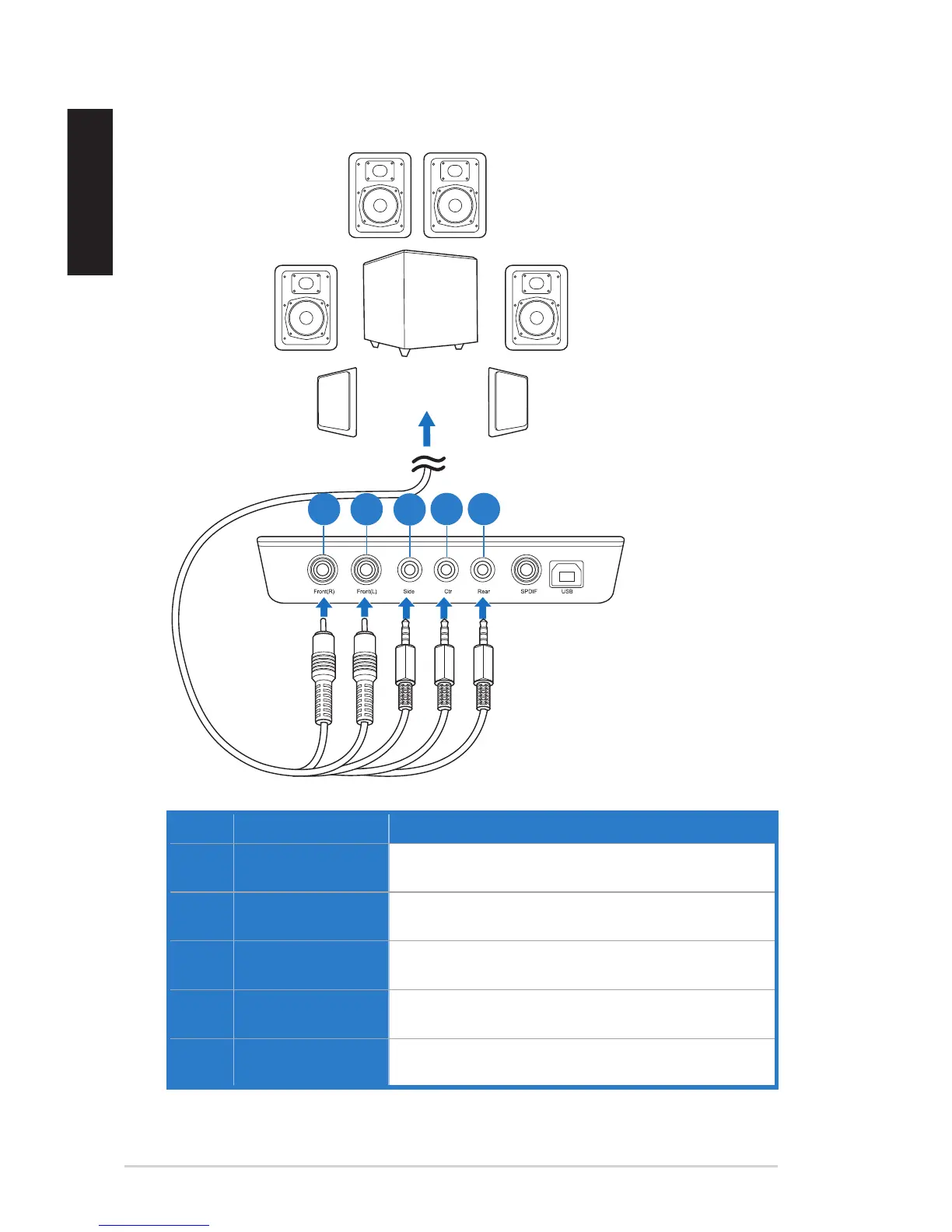

Connecting 7.1 channel speakers
No. Items Description
1. Front (R) Out port Connects to the front right input port of 7.1 channel
speakers.
2. Front (L) Out port Connects to the front left input port of 7.1 channel
speakers.
3. Side Surround Out
port
Connects to the Left surround and Right surround input
ports of 7.1 channel speakers.
4. Center/Subwoofer
Out port
Connects to the Center/Subwoofer input port of 7.1
channel speakers using the mini-jack cable.
5. Rear Surround Out
port
Connects to the rear surround input port of 7.1 channel
speakers.
