Chapter 3: BIOS setup
Chapter 3
Creating RAID
To create RAID:
1. Press <F11> on your keyboard or click
from the BIOS screen to open
EZ Tuning Wizard screen.
2. Click RAID
then click Next.
• Ensure that your HDDs have no existing RAID volumes.
• Ensure to connect your HDDs to Intel
®
SATA connectors.

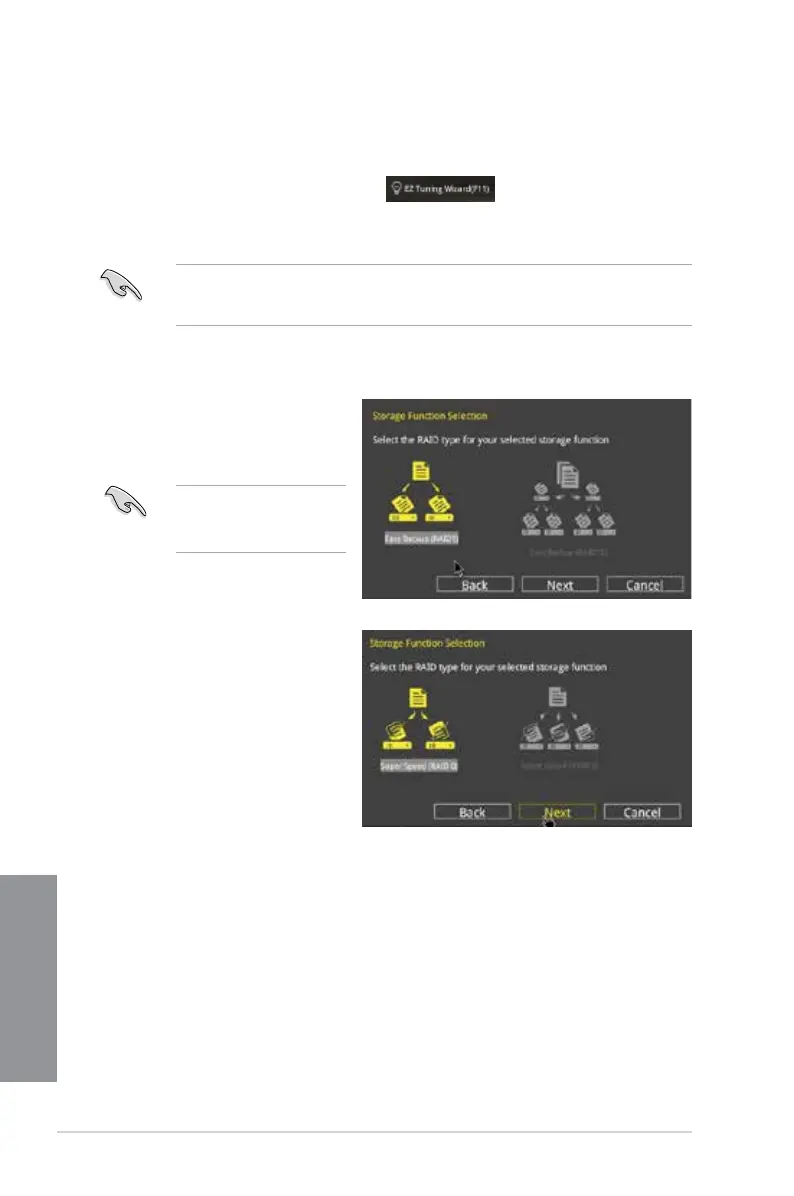

3. Select the type of storage for your RAID Easy Backup or Super Speed, then click
Next.
a. For Easy Backup, click
Next then select from Easy
Backup (RAID1) or Easy
Backup (RAID10).
4. After selecting the type of RAID, click Next then click Yes to continue the RAID setup.
5. After the RAID setup is done, click Yes to exit the setup then click OK to reset your
system.
You can only select Easy
Backup (RAID 10) if you
connect four (4) HDDs.
b. For Easy Backup, click Next
then select from Super
Speed (RAID0) or Super
Speed (RAID5).

Asus Z97-C Specifications

General

Form Factor	ATX
Chipset	Intel Z97
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32GB
Memory Type	DDR3
PCIe 3.0 x16 Slots	1
PCIe 2.0 x16 Slots	1
PCIe 2.0 x1 Slots	2
PCI Slots	2
SATA 6Gb/s Ports	6
SATA Express Ports	1
USB 3.0 Ports (Rear)	4
USB 3.0 Ports (Front)	2
USB 2.0 Ports (Rear)	2
USB 2.0 Ports (Front)	4
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Memory Standard	DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2800(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866/1600/1333 MHz
LAN	Realtek RTL8111GR, 1 x Gigabit LAN Controller(s)
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
