Chapter 1: Product introduction
LAN port
Speed
LED
Activity Link
LED
1. PS/2 Mouse/Keyboard combo port.ThisportconnectstoaPS/2mouseorPS/2
keyboard.
2. Video Graphics Adapter (VGA) port.This15-pinportisforaVGAmonitororother
VGA-compatibledevices.
3. LAN (RJ-45) port.ThisportallowsGigabitconnectiontoaLocalAreaNetwork(LAN)
through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
Off Nolink OFF 10Mbpsconnection
Orange Linked ORANGE 100Mbpsconnection
Orange
(Blinking)
Dataactivity GREEN 1 Gbps connection
Orange(Blinking
thensteady)
Readytowake
upfromS5mode
1 2 3
456789

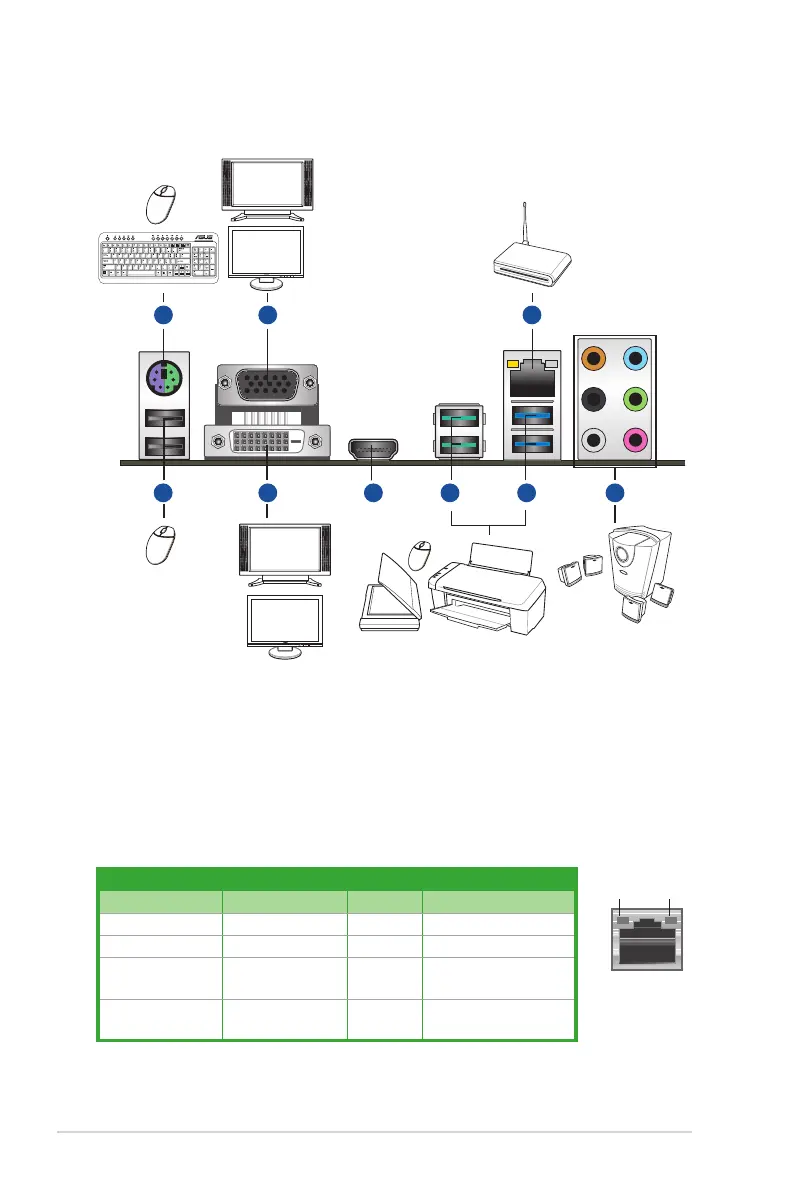

1.7 Connectors
1.7.1 Rear panel connectors
