CONTROLS
Switch Panels
16
Switch Panels

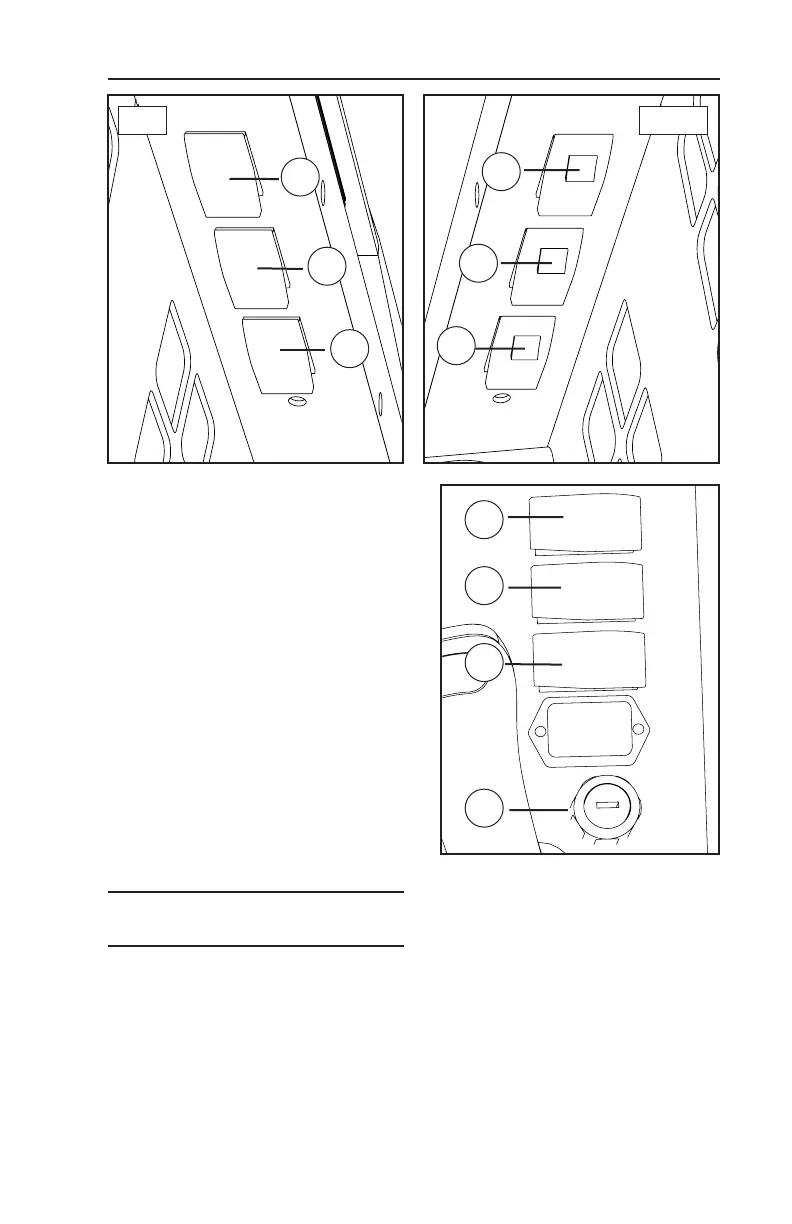

There are three main panels which
house the switches used to control
various functions throughout the
machine.
The switch panels include:
L. Parking Brake Switch
M.Headlight Switch
N. Bucket Positioning Switch
O.High Flow Aux. Switch
P. Low Flow Aux. Switch
Q.Hyd. Quick Attach Switch*
R. Heater Fan Switch**
S. Windshield Wiper Switch**
T. Beacon Switch**
U. Ignition Switch
* Optional on PT-70
** Optional on PT-70/80
L
M
N
O
P
Q
R
S
T
U
Left Right
To Next Page
