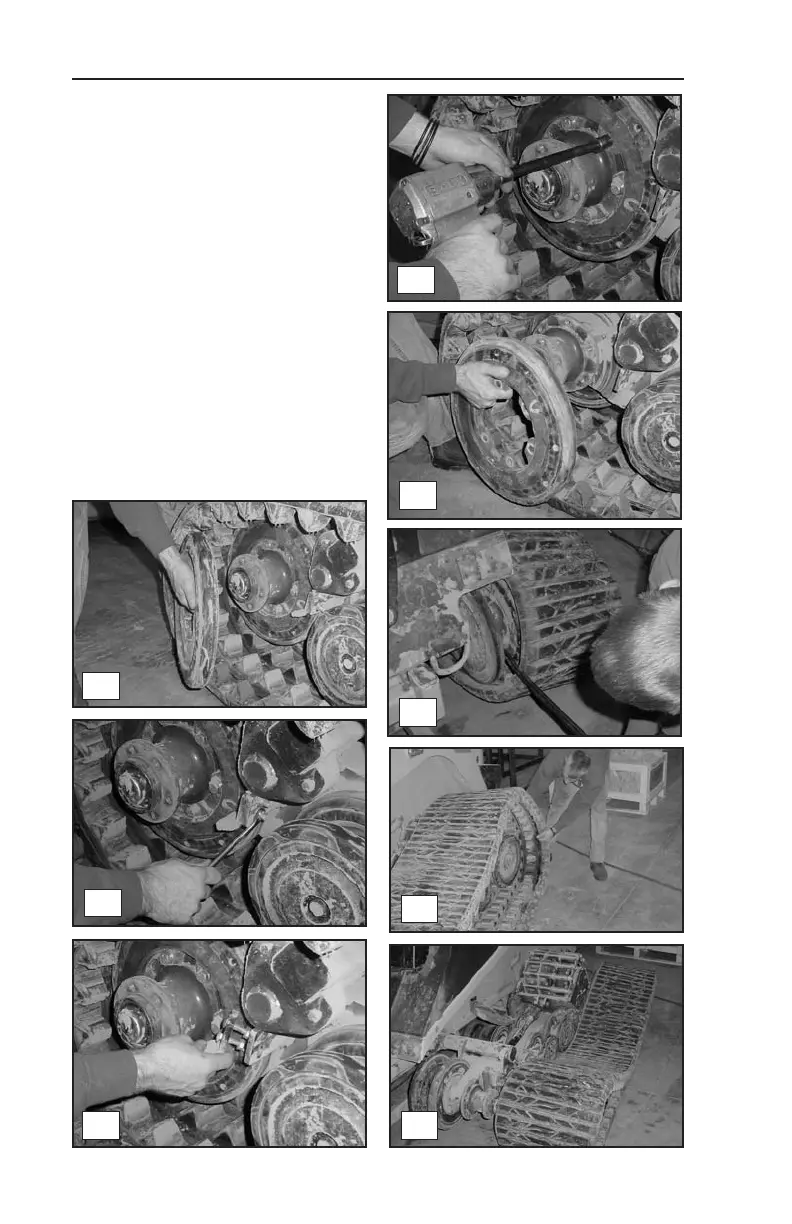

6. Remove the outer scraper
plate from the suspension
rail. (PT-80 only/fig. 9, 10)
7. Remove the bolts securing
the inner wheel to the hub,
then remove the wheel.
(PT-80 only/fig. 11, 12)
8. Use a pry bar to peel the
track over the inner wheel(s)
toward the outside of the
machine. (fig. 13)
9. Once the track is off of the
front wheel(s), pull the
rear of the track clear of the
suspension. (fig. 14, 15)
