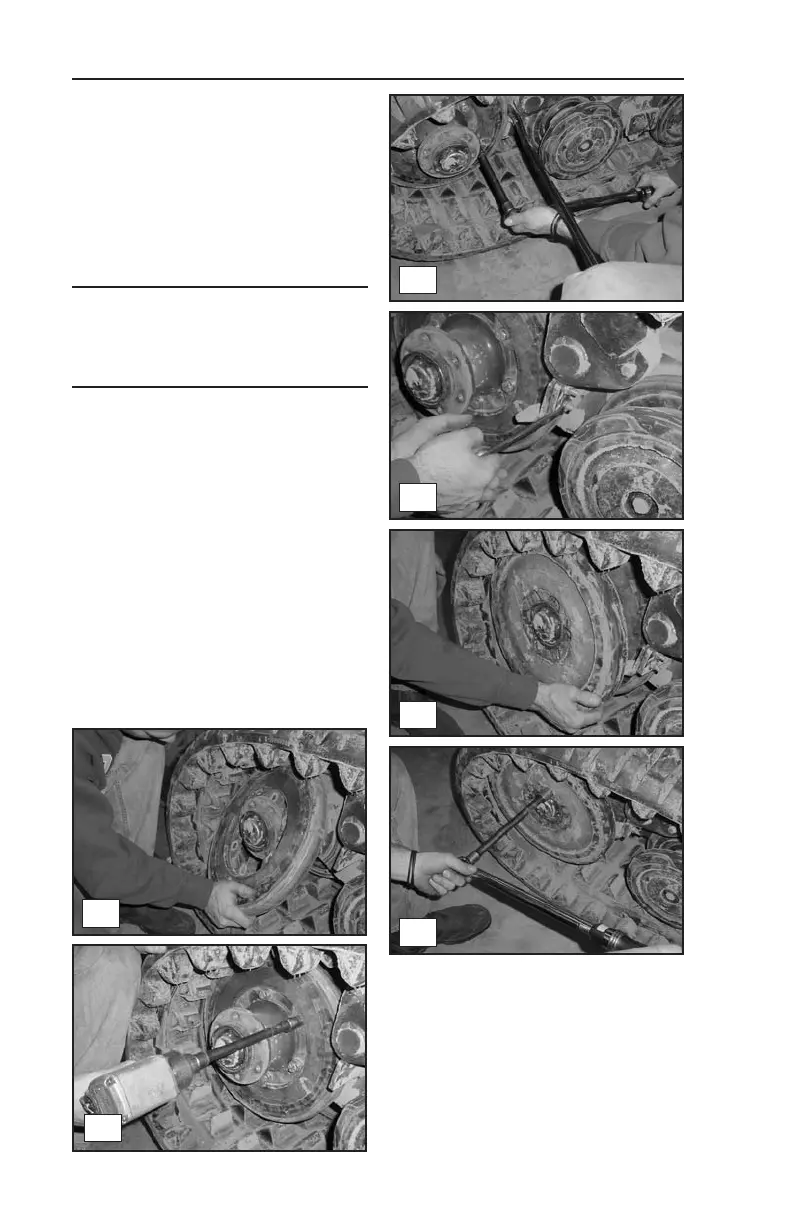

9. Once the track is in position
over the idler wheels, install
the inner idler wheel onto
the hub and secure it in
place with the mounting
bolts. Torque them to
90 +/- 10 Lb. Ft. (PT-80
only/fig. 6, 7, 8)
Note: You may need to use a
bar to keep the wheel from spin-
ning as you torque the mounting
bolts to spec. (fig. 8)
10. Install the scraper onto the
suspension rail and tighten
the bolts to secure it in
place. (PT-80 only/fig. 9)
11. Install the outer idler wheel
and secure it in place with
the mounting bolts. Torque
them to 90 +/- 10 Lb. Ft.
(fig. 10, 11)
12. Perform the track tension
adjustment and check pro-
cedures on page 51 to com-
plete installation.
MAINTENANCE
Undercarriages
55
6
7
8
9
10
11
