EF600 Instruction Manual
Asymptote Ltd.
St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK
Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk
Connect the communications lead (9-pin D-type male to female) between com
port 1 (the serial port) on the computer and the back of the freezer. Power-up
the freezer unit using the ON/OFF switch on the front panel of the unit (figure
2.4). The switch illuminates red when the power is switched on.

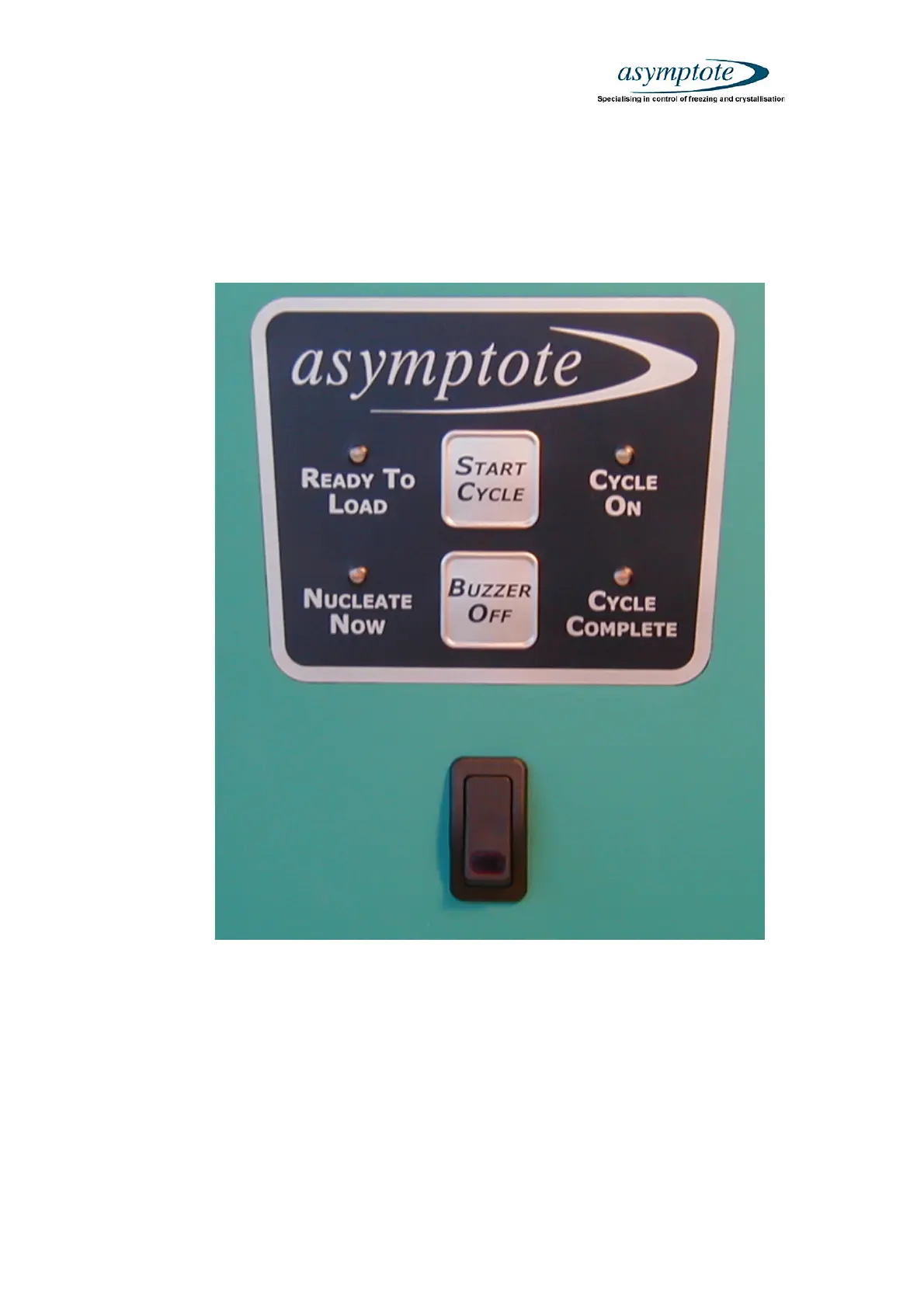

Figure 2.4 – Front panel of freezer unit (keypad and ON/OFF switch)
3. Starting Asymptote’s Data Logging Software (EF600-01,
