Installation dimensions

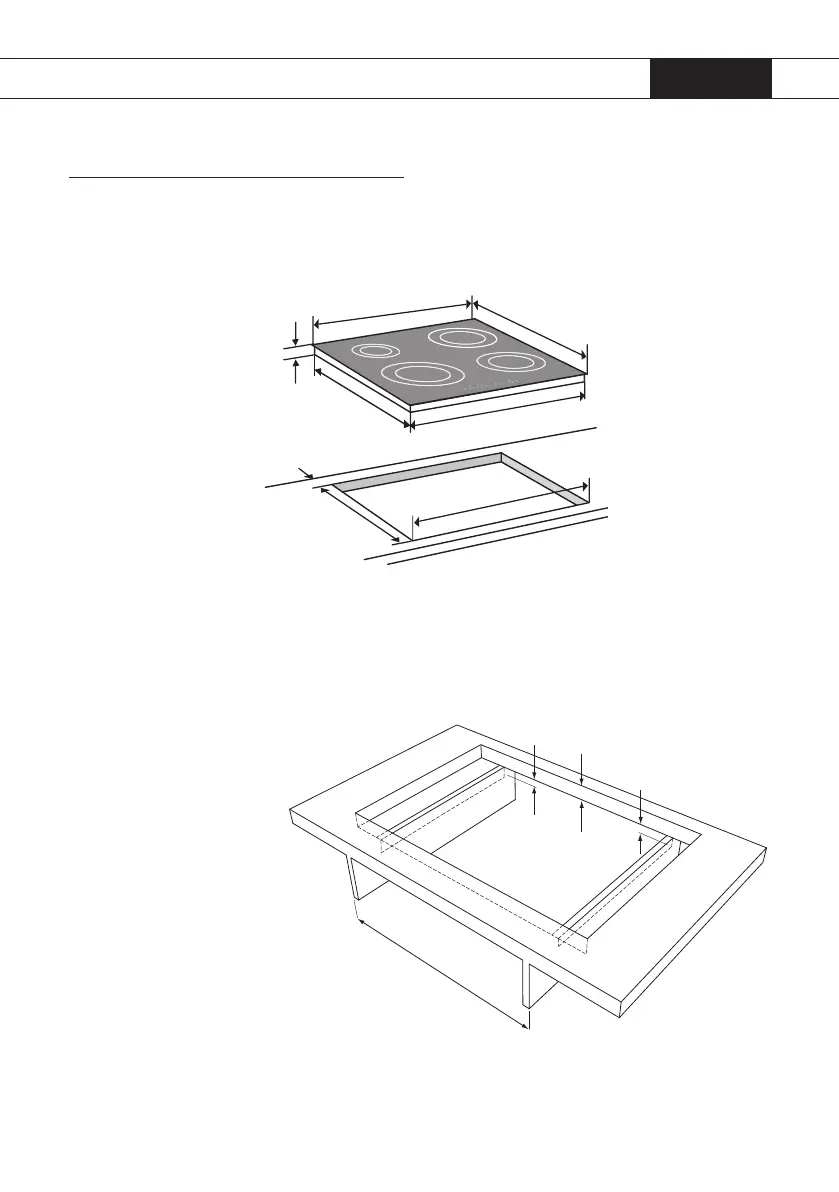

e dimensions and recesses are shown in the illustrations beneath.
490
560
min.40
46
600
510
484
554
If the hob is wider than the cupboard, with a worktop less than
46 mm thick, saw a cut-out in both sides of the cupboard, so that
the appliance is free of the cabinet.
Installation dimensions inside
the cabinet
x<46 mm: y = 46 mm - x
x>= 46 mm: y = 0 mm
Y
Y
X
600
GeneralINSTALLATION INSTRUCTIONS
