installation
possibilities for building in
attention
Ensure that the connection cables hang freely. If there
is a drawer underneath the hob, make sure that the
contents do not project above the edge of the drawer
and interfere with the ventilation.
installation of the induction hob above a combi-
microwave oven, a 90 cm ATAG oven or an oven of a
different brand
e

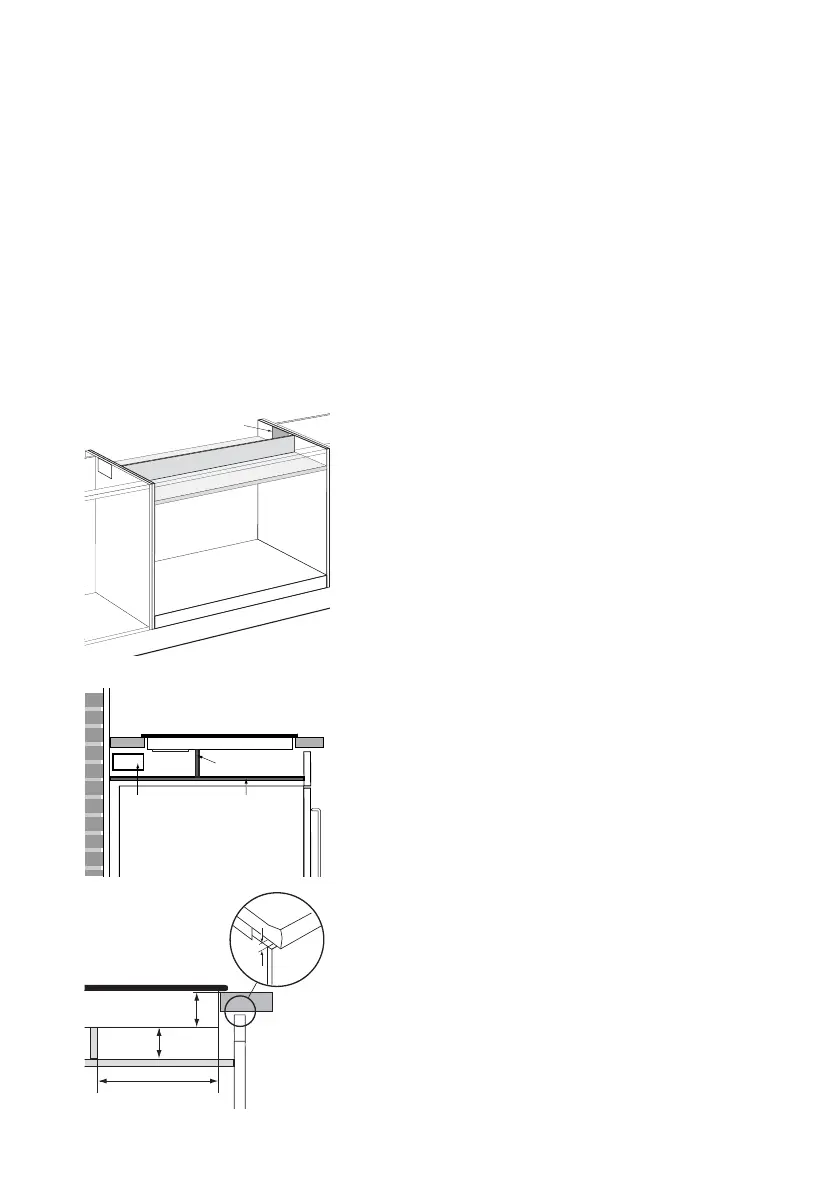

Saw out the ventilation opening(s), making sure
that the total surface of the holes is a minimum
of 100 cm
2
. See the drawing, for example,
showing 2 holes of 50 cm
2
.
r
Fit a protective plate between the oven and the
hob. The plate should be at least 10 mm thick
and heat-resistant (85 °C). The space between
the underside of the hob and the protective plate
must be at least 50 mm.
t
To protect the air flow, fit a protective panel
- of the same material as the protective plate -
between the protective plate and the hob.
Ventilation is via the adjoining cupboards.
GB 30
2
50 cm
e
r
t
e
e
r
t
50
200
48
min.
560 x 6 mm
