installation
electrical connection
GB 31
For the connection, use an approved cable, in
accordance with the regulations. The cable must bear
one of the following indications:
H05V2V2-F, H05RR-F or H05RN-F.
There is a label on the underside of the appliance with
the wiring diagrams. The connection terminals are

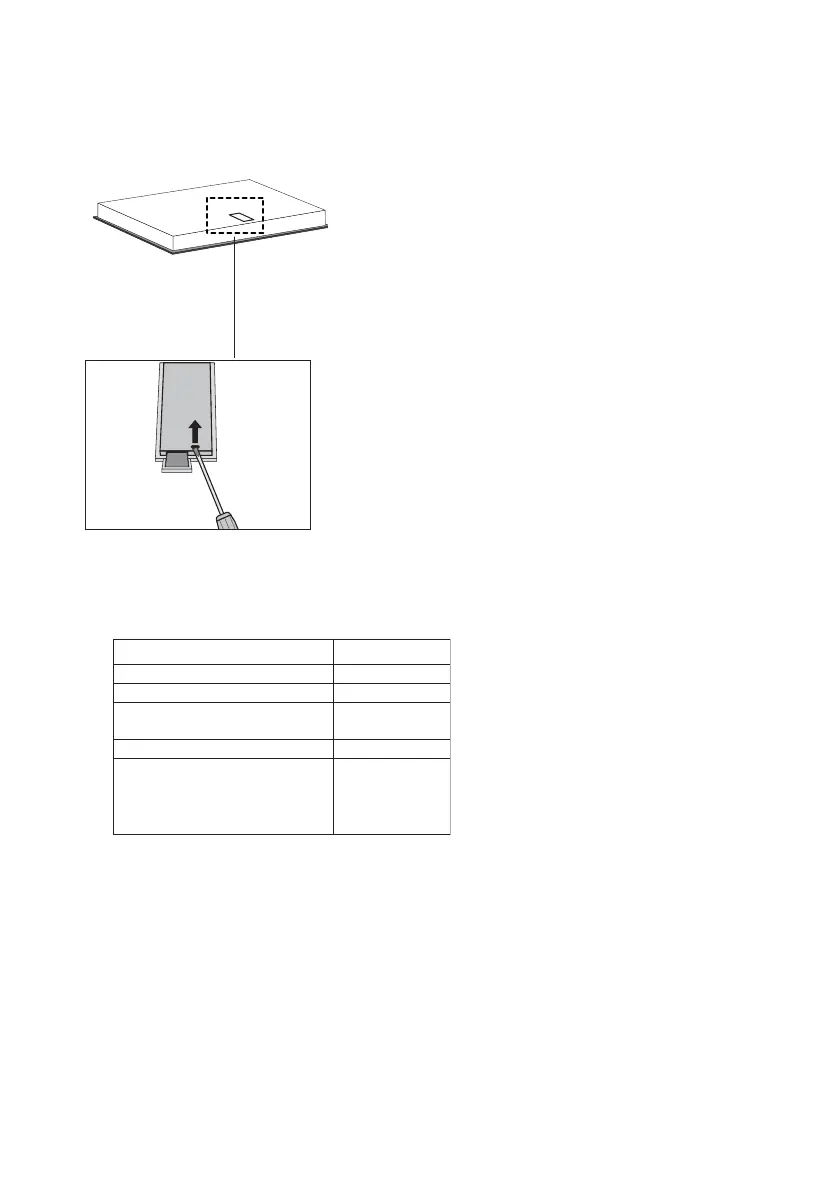

accessible once you have opened the junction box on
the underneath. The junction box cover can be
opened with a screwdriver.
If you want to make a fixed connection, make sure
that a multi-polar switch with a contact separation of
at least 3 mm is fitted in the supply line.
Power setting table
Type of hob Induction
Component voltage 230V 50Hz
Appliance width x depth 904X 522 mm
Installation height from
top of worktop 48 mm
Cut out dimensions width x depth 860x 490 mm
Capacities of modules
Left 3600 W
Middle 2800 W
Right 2800 W
700001872100 HL HI9071M.qxp 12-10-2005 12:52 Pagina GB 31
