installation
electrical connection

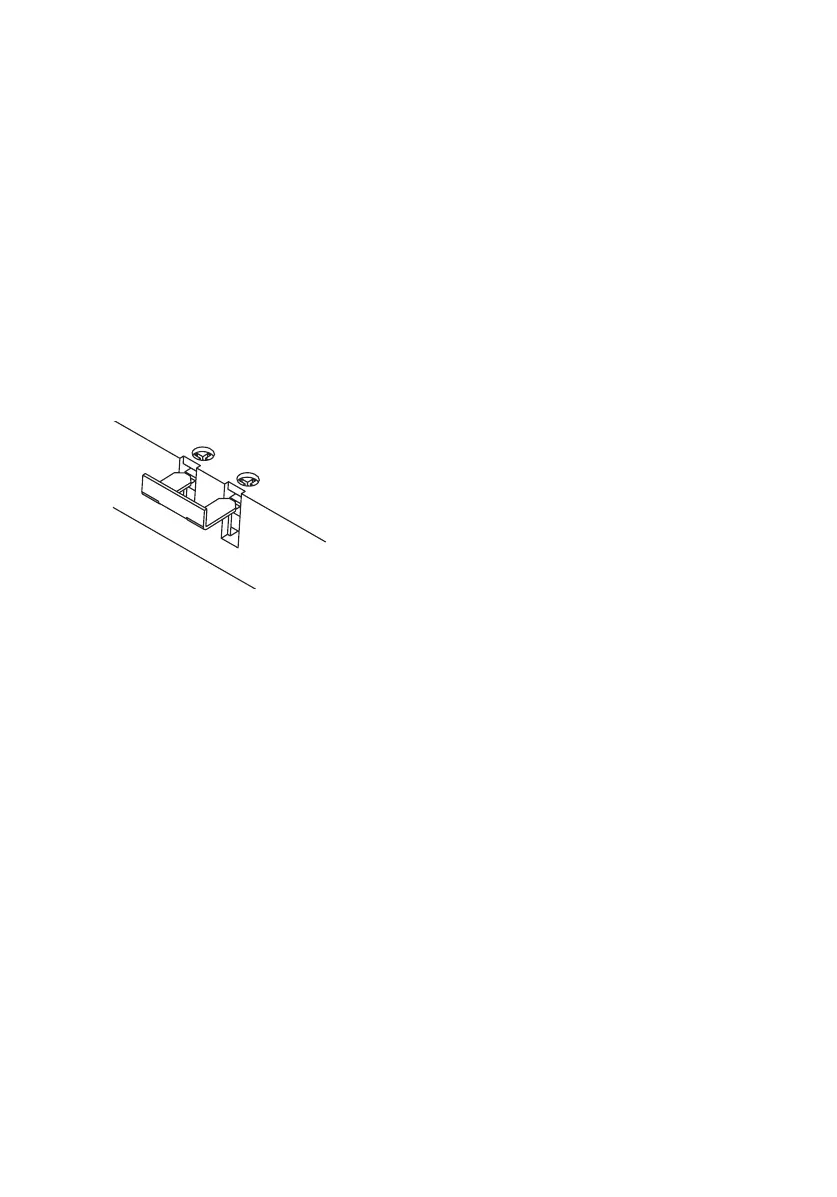

You can use the bridges provided on the connecting block to
make the required interconnections as indicated in the
preceding illustrations. How to install the bridges is indicated
in the junction box cover and in the illustration below. The
bridges should not be placed immediately on top of the
connecting wires, but between the screw-head and the
clamp around the connecting wire.
Secure the cable with the strain relief and close the cover.
GB 33
700001872100 HL HI9071M.qxp 12-10-2005 12:52 Pagina GB 33

Atag HI9071M Specifications

General

Type	Induction hob
Control Type	Touch control
Power Levels	9
Boost Function	Yes
Timer	Yes
Residual Heat Indicator	Yes
Installation	Built-in
Color	Black
Safety Features	Child Lock, Auto Shut-off
Material	Ceramic glass
