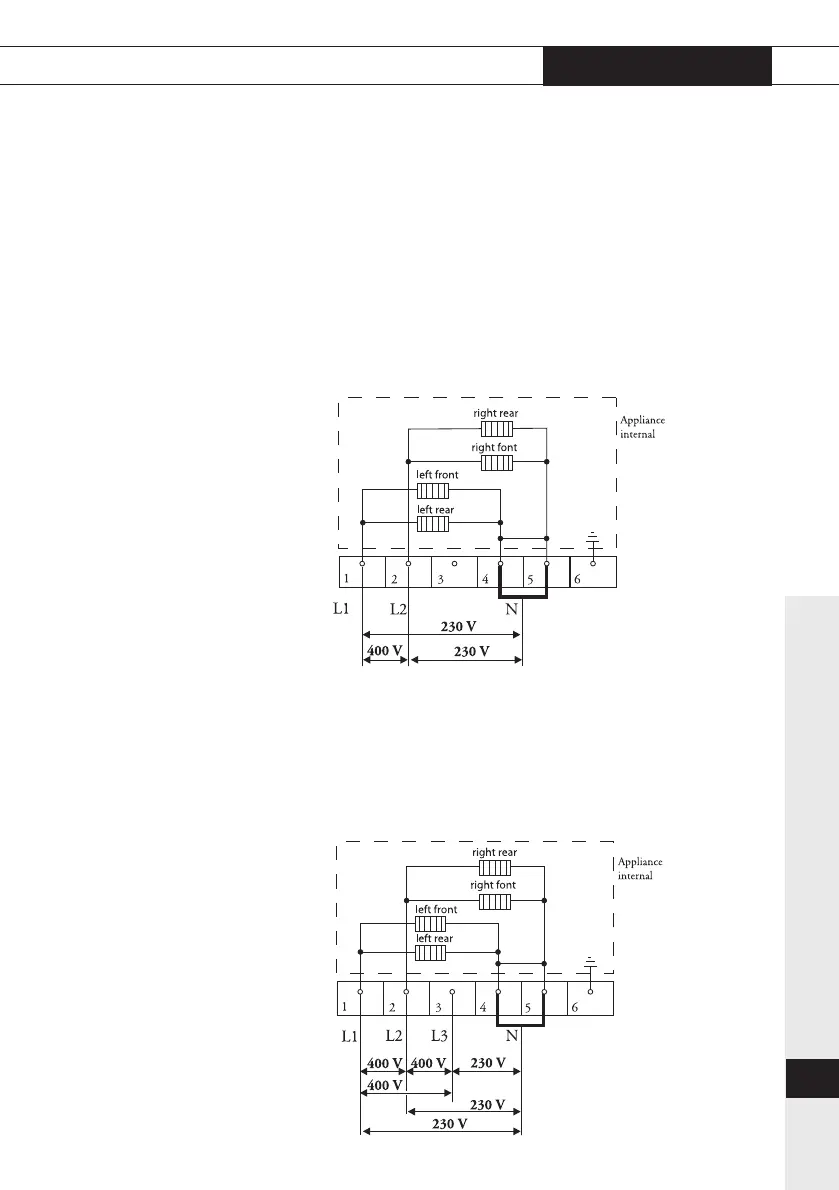

2 lives with 1 neutral connection (2 1N a.c. 400 V / 50 Hz):
The voltage between the phases and the neutral is 230 V a.c. Between
the lives there is a voltage of 400 V. If there is not a voltage of 400 V
between the lives, two wires have been taken from the same live in the
meter cupboard and the hob must be connected with two neutral wires,
as indicated above under 2 lives with 2 neutrals.
Install a connecting bridge between the connection points 4-5.
Your groups must be fused with at least 16 A (2x). The connecting power
cable must have a minimum core cross section of 2,5 mm
2
.
3 lives with 1 neutral connection (3 1N a.c. 400 V / 50 Hz):
The voltage between the phases and the neutral is 230 V a.c. There is a
voltage of 400 V between the lives. Fit a connecting bridge between the
connection points 4-5. Phase 3 carries no load. Your groups must be
fused with at least 16 A (3x). The connecting power cable must have a
minimum core cross section of 2,5 mm
2
.
INSTALLATION GUIDE build in HL62..E
77
