Atag i28C Technical Guide

Boiler information

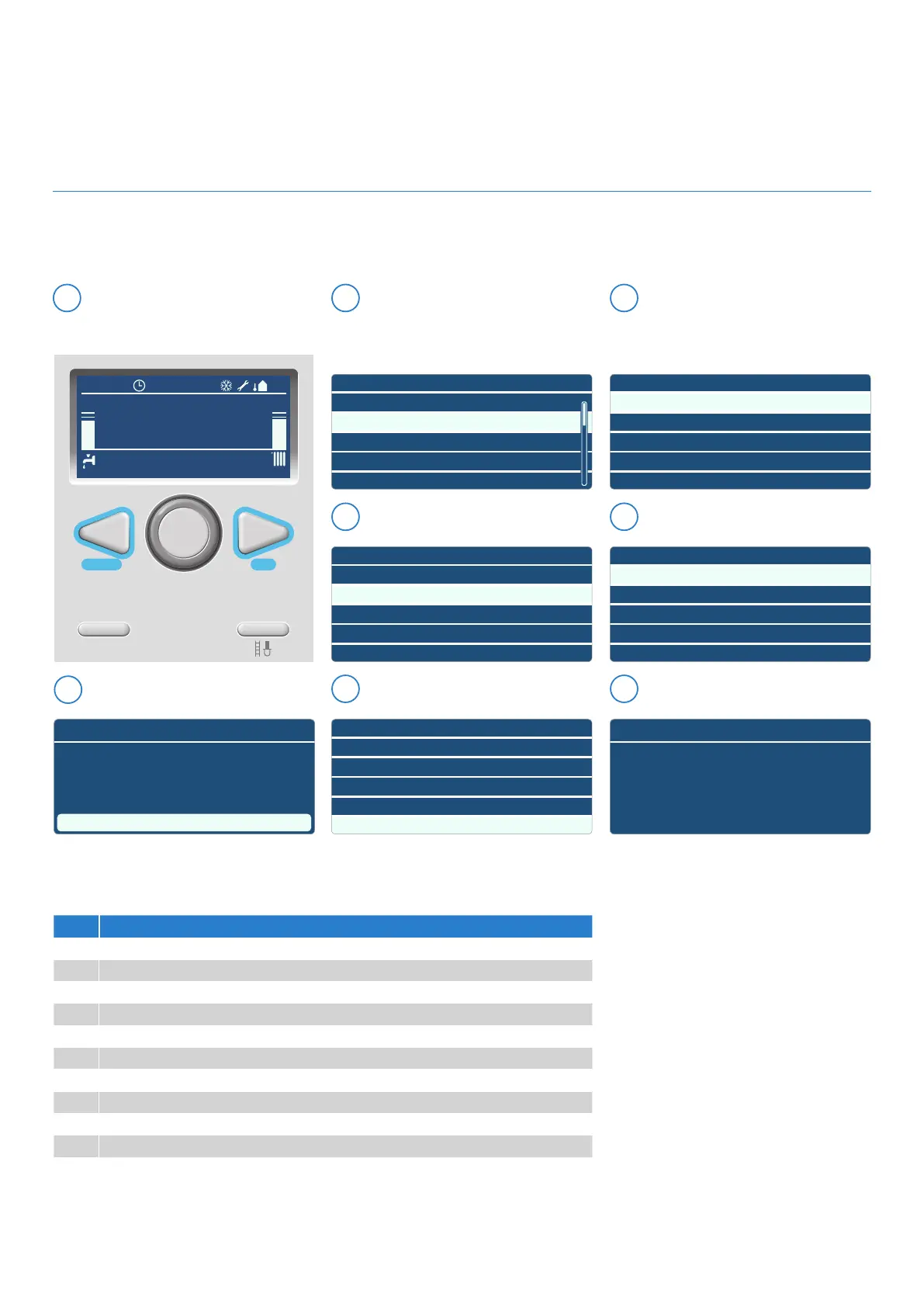

The boiler information is accessible through a code. To gain access to the boiler information, proceed as follows:
RESET
BACK OK
19°25/07/18 09:00
80°60°
ECO AUTO
Press OK to enter Menu
1.5 bar
From the controller Home screen,
press the BACK and OK buttons
at the same time for 7 seconds
1
Insert Code
007
Save
Insert technical code
Service Param
8
8.3
8.4
8.5
8.6
8.7
Boiler Temperature
Storage
Service
Error History
Free parameters
Option 8.3 Boiler Temperature is
highlighted. Press OK.
6
Technical area
Language, date and time
Complete Menu
Configuration Wizard
Service
Faults
The screen below then appears.
Turn the selector wheel to highlight
Complete Menu. Press OK. It takes
a while to load the menu.
3
Menu
0
1
2
3
4
Network
<Not Available>
Boiler Parameters
<Not Available>
Zone 1 Parameters
Menu
4
5
6
7
8
Zone 1 Parameters
Zone 2 Parameters
Zone 3 Parameters
<Not Available>
Service Parameters
As an example we take the
CH Flow Set T.
4 7
Option 8.3.0 CH Flow Set T is highlighted.
Press OK.
Service Param
8
8.3.0
8.3.1
8.3.2
8.3.3
8.3.4
80
48
48
47
--
CH Flow Set T
CH Flow T
CH Return T
DHW Flow T
Exhaust Flue T
Turn the selector wheel to highlight 007
as the Technical Code. Press OK.
2
Turn the selector wheel to highlight
8 Service Parameters. Press OK.
5
The screen appears.
8
8.3.0 CH Flow Set T
80ºC
No. Description
8.2.2 Fan Speed in Rpm
8.2.5 DHW Flow Rate in l/min
8.2.8 Gas Power in kW
8.2.9 Heating circuit pressure in bar
8.3.0 CH Flow Set T in °C
8.3.1 CH Flow T in °C
8.3.2 CH Return T in °C
8.3.3 DHW Flow T in °C
8.3.5 Outdoor T (only if an outside sensor is connected) in °C
8.7.5 Ionization current in µA
A list of the most common boiler information can be found in the table below.
34
