49
Boiler Installation
Electrical connection

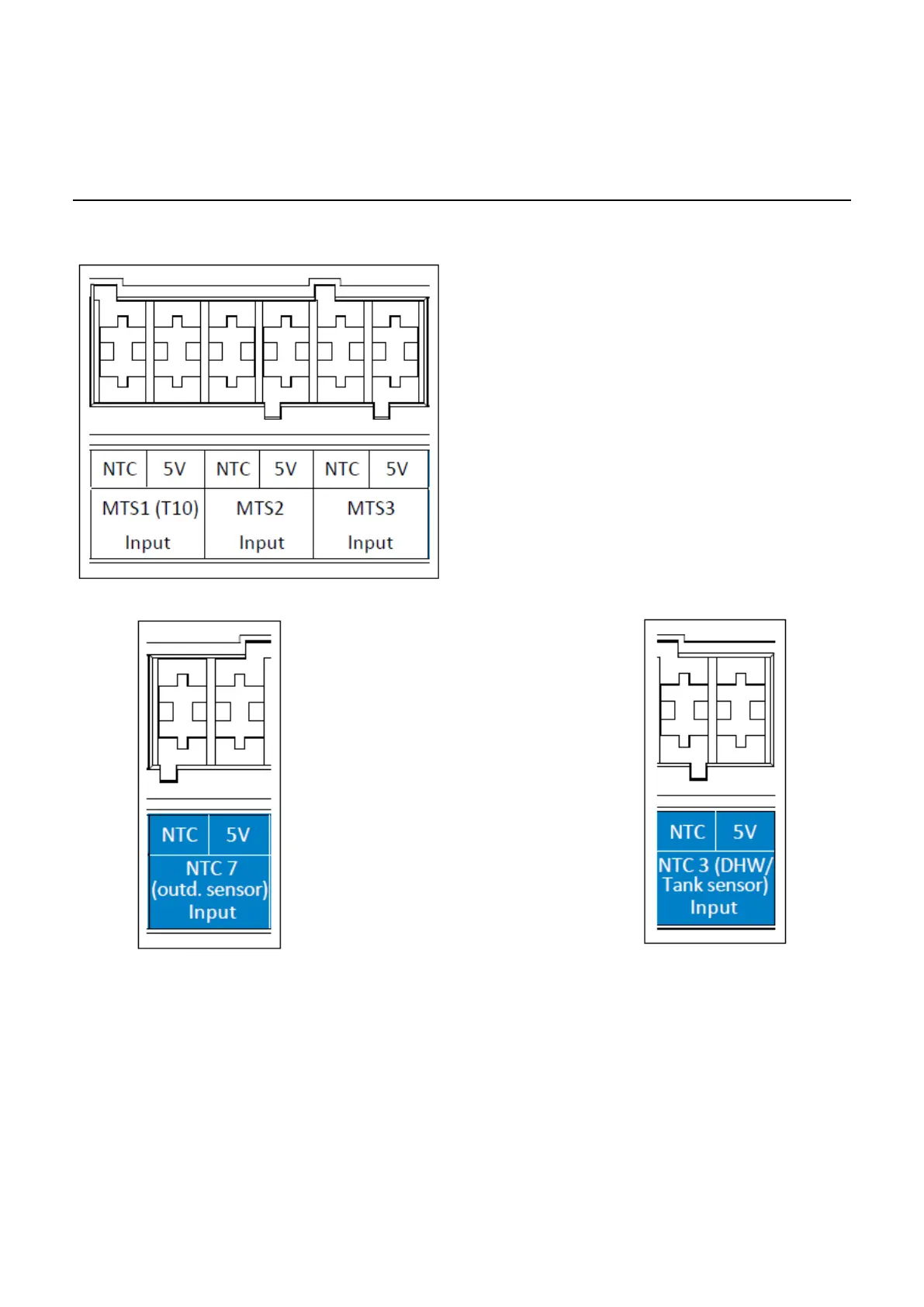

Temperature Sensors
Common Flow Sensor
When a common flow sensor is used (for cascade
mandatory) it should be addressed on MTS1.
DHW Tank Setting
There are several schemes for hot water preparations
( see pages.......??).
Flue Gas Sensor
Sensors can also be used as flue gas sensor. With a
setting for max. Temperature and system has to switch
off or a set temperature where system has to reduce the
power.
Weather Dependent Regulation
When WDR is used an outdoor sensor is
needed. Keep in account this is a 1K sen-
sor.
This control setting has to be selected and
is not auto detect.
Basic DHW Preparation
For the basic DHW preparation there is a
dedicated tank sensor.
For the other regulations the tank sensor is
the top sensor. Take in account this is a
10K sensor.
