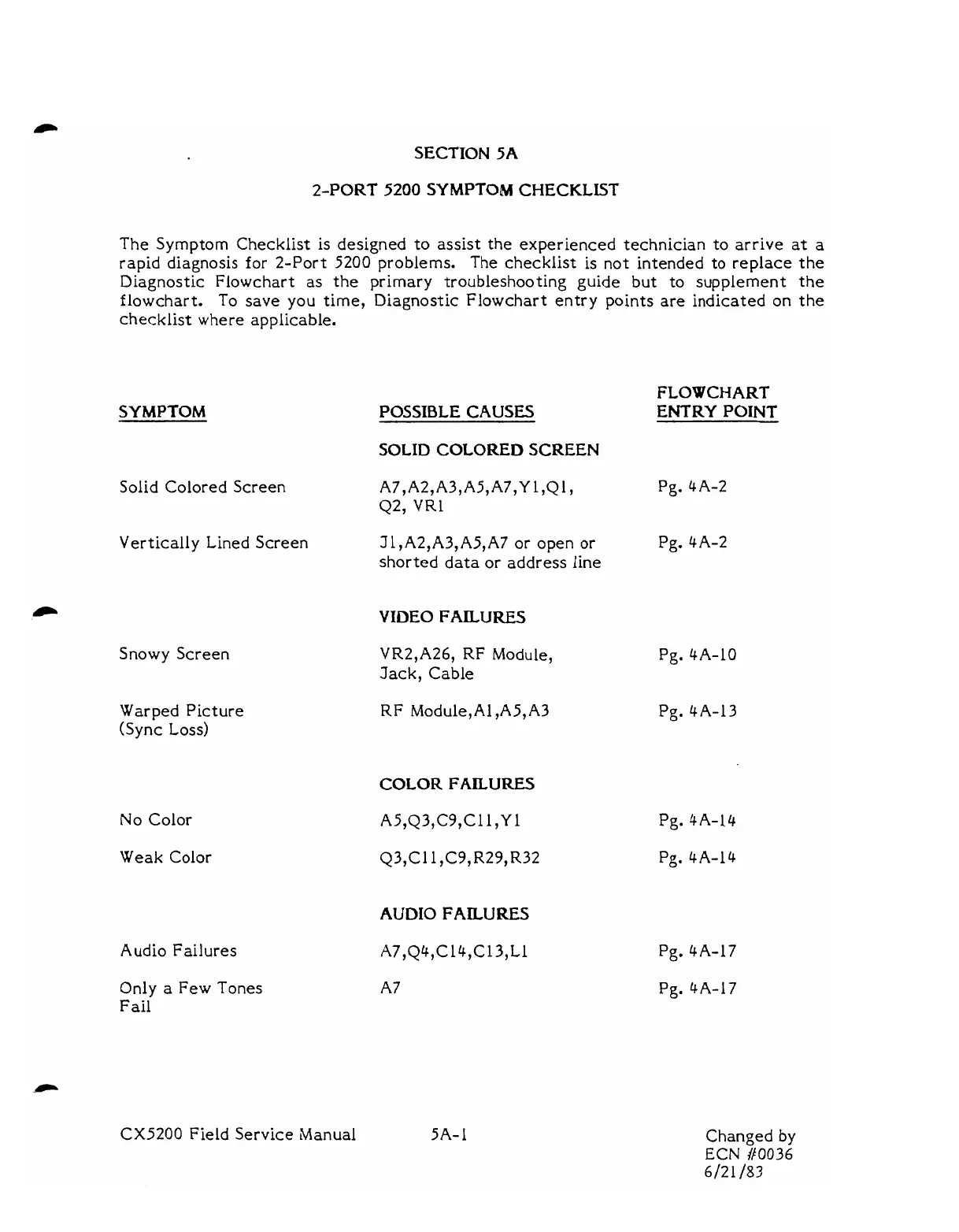

SECTION 5A
2-PORT 5200 SYMPTOM CHECKLIST
The Symptom Checklist is designed to assist the experienced technician to arrive at a
rapid diagnosis for 2-Port 5200 problems. The checklist is not intended to replace the
Diagnostic Flowchart
as the
primary troubleshooting guide but to supplement the
flowchart. To save you time, Diagnostic Flowchart entry points are indicated
on the
checklist where applicable.
SYMPTOM
Solid Colored Screen
Vertically Lined Screen
rC
Snowy Screen
Warped Picture
(Sync Loss)
No Color
Weak Color
Audio Failures
Only a Few Tones
Fail
FLOWCHART
POSSIBLE
CAUSES ENTRY POINT
SOLID COLORED SCREEN
A7,AZ,A3,A5,A7,Y 1 ,Ql, Pg. 4A-2
42, VRl
Jl,A2,A3,AS,A7 or open or
Pg. 4A-2
shorted data or address line
VIDEO FAILURES
VR2,A26, RF Module, Pg. 4A-10
Jack, Cable
RF Module,Al ,A5,A3 Pg. 4A-13
COLOR FAILURES
A5,Q3,C9,Cll ,Y 1 Pg. 4A-14
Q3,Cll ,C9,R29,R32 Pg. 4A-14
AUDIO FAILURES
A7,Q4,C14,C13,Ll
A7
.*
CX5200 Field Service Manual 5A-1
Pg. 4A-17
Pg. 4A-17
Changed
by
ECN /I0036
6/21
/83
