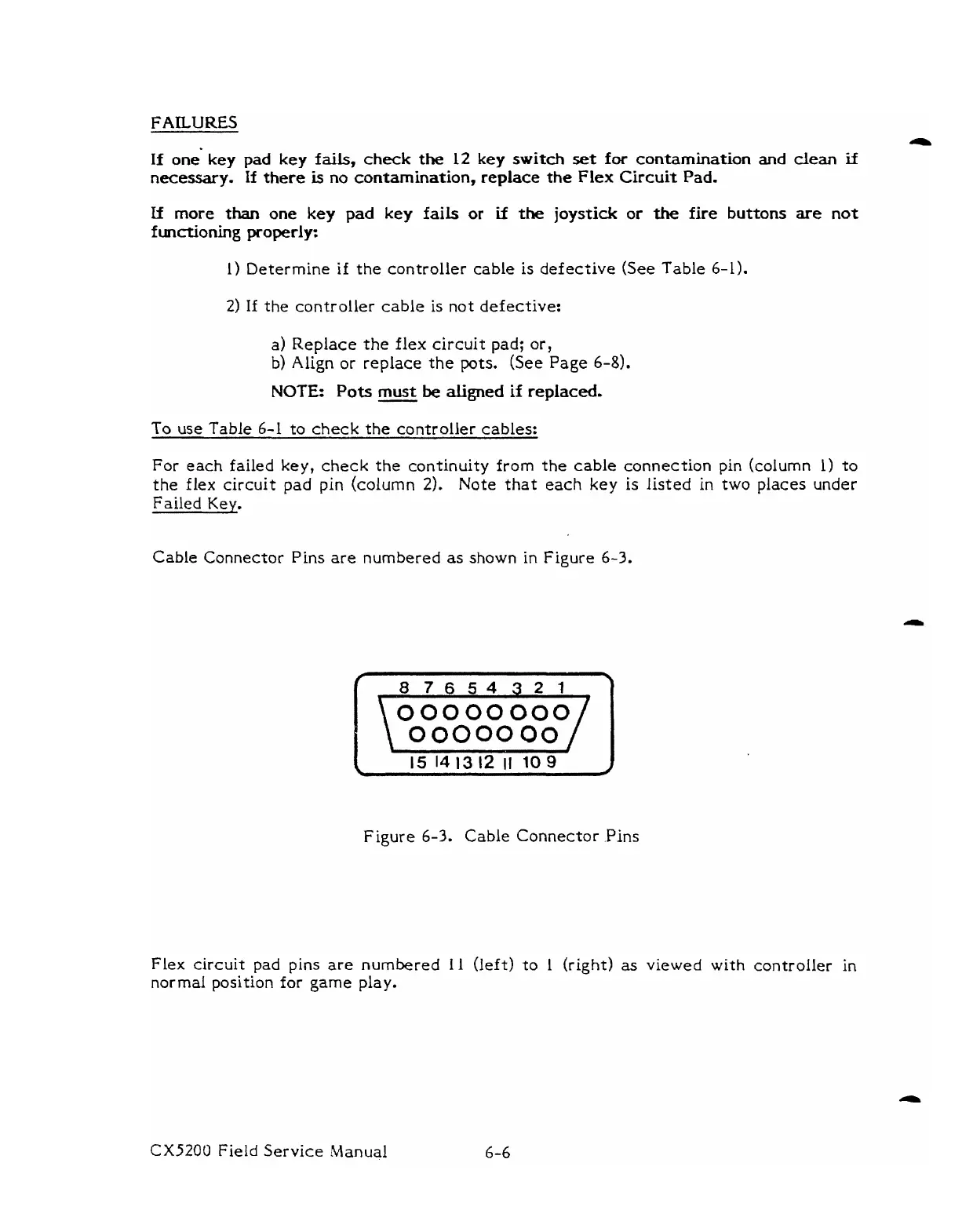

FAILURES
If one key pad key fails, check the 12 key switch set for contamination and dean if
necessary. If there is no contamination, replace the Flex Circuit Pad.
If more than one key pad key fails or if the joystick or the fire buttons are not
functioning properly:
1) Determine if the controller cable is defective (See Table 6-1 ).
2) If the controller cable is not defective:
a) Replace the flex circuit pad; or,
b) Align or replace the pots. (See Page 6-81.
NOTE: Pots must be aligned if replaced.
-
To use Table 6-1 to check the controller cables:
For each failed key,
check the continuity from the cable connection pin (column 1) to
the
flex circuit pad pin (column 2).
~ote that each key is listed in two places under
Failed
Kev.
Cable Connector Pins are numbered as shown in Figure 6-3.
Figure 6-3. Cable Connector Pins
Flex circuit
pad pins are numbered 11 (left) to I (right) as viewed with controller in
normal position for game
play.
CX5200 Field Service Manual
