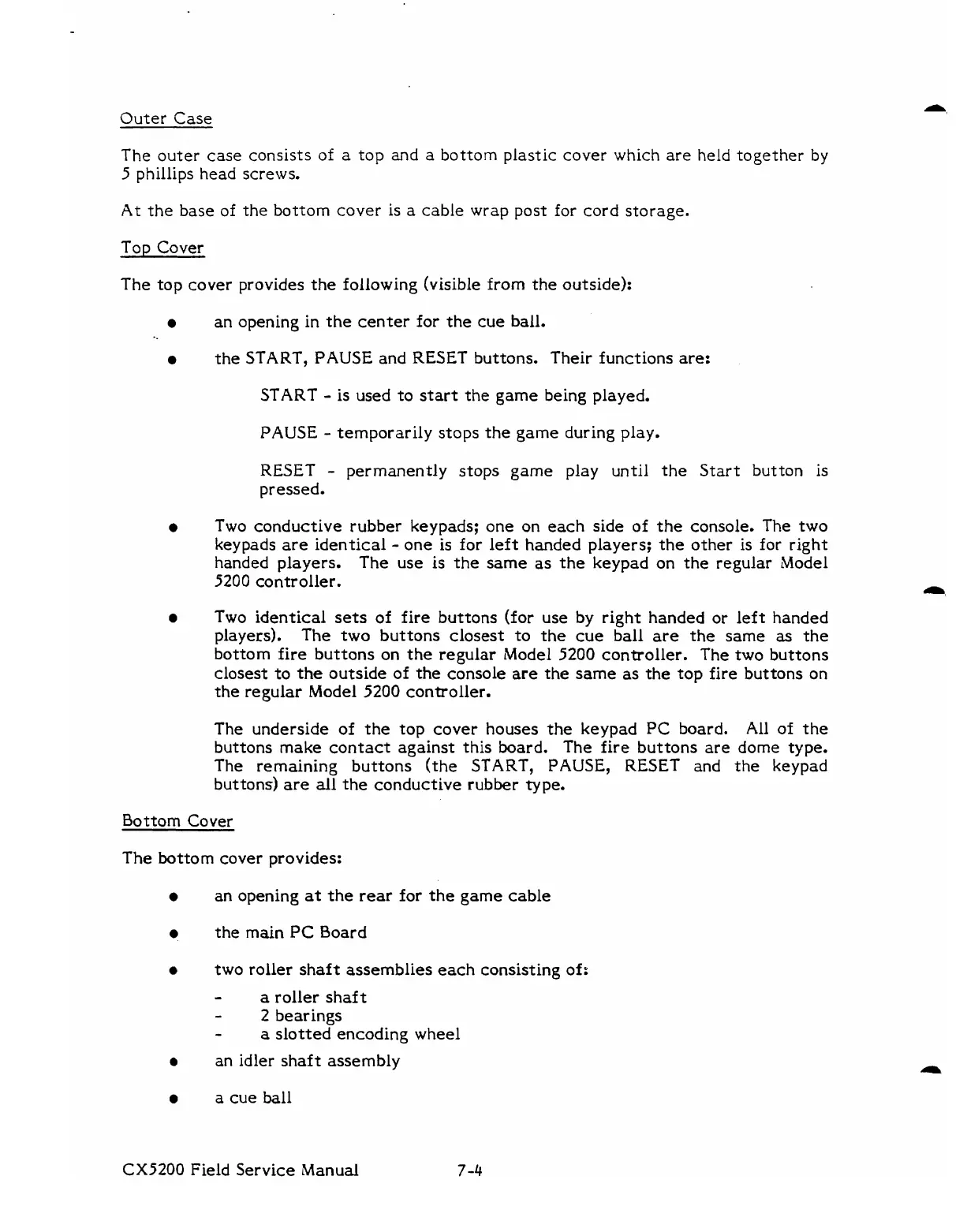

Outer Case
The
outer case consists
of
a
top
and
a
bottom plastic cover which are held together
by
5
phillips head
screws.
At the base of the bottom cover is
a
cable wrap post for cord storage.
TOD Cover
The top cover provides the following (visible from the outside):
a
an opening in the center for the cue ball.
the START, PAUSE and
RESET
buttons. Their functions are:
START
-
is used to start the game being played.
PAUSE
-
temporarily stops the game during play.
RESET
-
permanently stops game play until the Start button
is
pressed.
Two conductive rubber keypads; one on each side of the console. The two
keypads are identical
-
one is for left handed players; the other is for right
handed players. The use is the same as the keypad on the regular Model
5200
controller.
Two identical
sets
of fire buttons (for use
by
right handed or left handed
players). The two buttons closest to the cue ball are the same
as
the
bottom fire buttons on the regular Model
5200
controller.
The two buttons
closest to the outside of the console are the same as the top fire buttons on
the regular Model
5200
controller.
The underside of the top cover houses the keypad
PC
board.
All of the
buttons make contact against this board. The fire buttons are dome type.
The remaining buttons (the
START,
PAUSE,
RESET
and the keypad
buttons) are all the conductive rubber type.
Bottom Cover
The
bottom cover provides:
a
an opening
at
the
rear
for the game cable
e
two roller shaft assemblies each consisting
of:
-
a
roller shaft
-
2
bearings
-
a
slotted encoding wheel
a
an idler shaft assembly
a
cue
ball
CX5200
Field Service Manual
