Atari CX User Manual

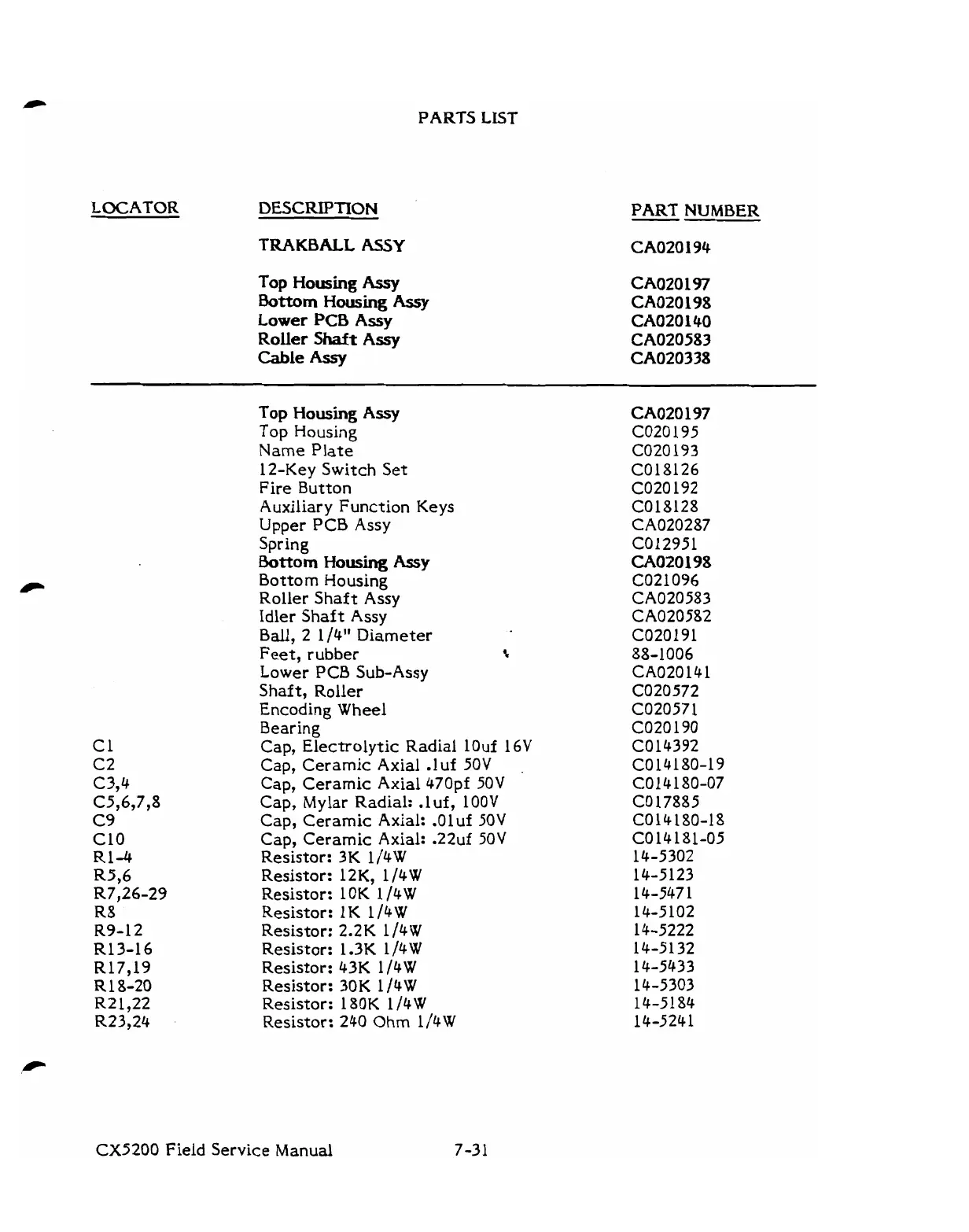

PARTS LIST
LOCATOR DESCRIPTION
PART NUMBER
TRAKBALL ASSY
Top Housing Assy
Bottom Housing Assy
Lower PCB Asy
Roller Shaft Assy
Cable Assy
Top Housing Assy
Top Housing
Name Plate
12-Key Switch Set
Fire Button
Auxiliary Function Keys
Upper
PCB Assy
Spring
Bottom Housing Assy
Bottom Housing
Roller
Shaft Assy
Idler
Shaft Assy
Ball, 2 114" Diameter
Feet, rubber
\
Lower PCB Sub-Assy
Shaft, Roller
Encoding Wheel
Bearing
Cap, Electrolytic Radial lOuf 16V
Cap, Ceramic Axial
.l uf 50V
.
Cap, Ceramic Axial 470pf 50V
Cap, Mylar Radial: .luf, lOOV
Cap, Ceramic Axial: .Oluf
50V
Cap, Ceramic Axial: .22uf 50V
Resistor:
3K 1 /4W
Resistor: 12K, 114
W
Resistor: 1 OK 1 /4W
Resistor: 1 K 1 /4W
Resistor: 2.2K l/4W
Resistor: 1.3K 1 /4W
Resistor: 43K 1/4W
Resistor:
30K 1 /4W
Resistor: 180K 1/4W
Resistor: 240
Ohm 1 /4 W
