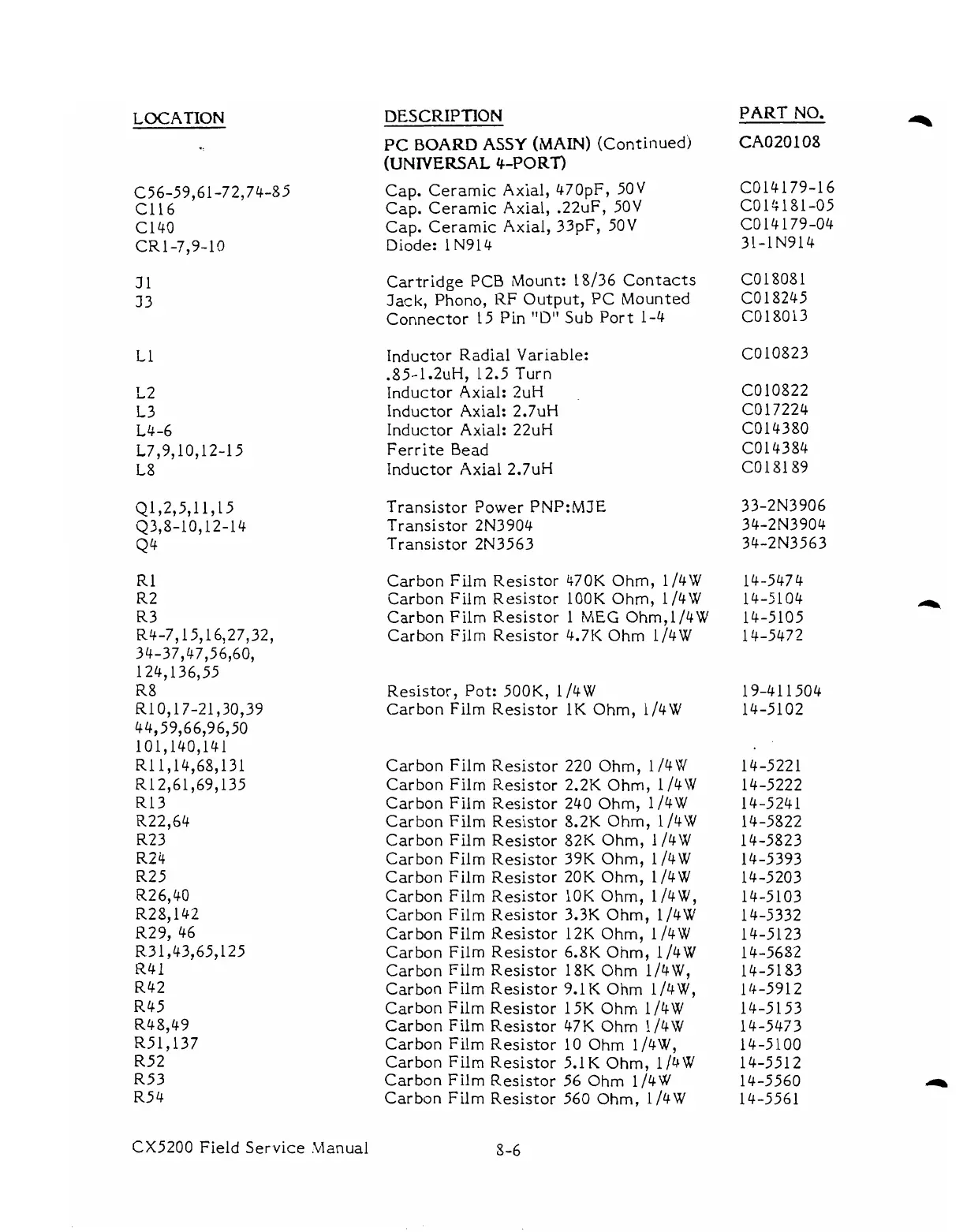

DESCRIPTION
PART NO. q
LOCATION
PC BOARD ASSY (MAIN) (Continued)
(UNIVERSAL 4-PORT)
C56-59,61-72,74-85
Cap. Ceramic Axial, 470pF, 50V
C116
Cap. Ceramic Axial, .22uF, 50V
Cl40
Cap. Ceramic Axial, 33pF, 50V
CR1-7,9-19 Diode: 1 N914
Cartridge PCB Mount: 18/36 Contacts
Jack, Phono, RF Output, PC Mounted
Connector 15 Pin
"U" Sub Port 1-4
Inductor Radial Variable:
.85-1.2uH, 12.5 Turn
Inductor Axial: 2uH
Inductor Axial: 2.7uH
Inductor Axial: 22uH
Ferrite
Bead
Inductor Axial 2.7uH
Transistor Power PNP:MJE
Transistor 2N3904
Transistor 2N3563
Carbon Film Resistor 470K Ohm, 1 /4W
Carbon Film Resistor lOOK Ohm, 1/4W
Carbon Film Resistor
1 MEG Ohm,l/4W
Carbon Film Resistor 4.7K Ohm 1/4W
Resistor, Pot: 500K, 1 /4 W
Carbon Film Resistor 1K Ohm, 1 /4W
Carbon Film Resistor 220 Ohm, 1
14 W
Carbon Film Resistor 2.2K Ohm, 1 /4 W
Carbon Film Resistor 240 Ohm, 1/4W
Carbon Film Resistor
8.2K Ohm, 1/4W
Carbon Film Resistor 82K Ohm, 1 /4W
Carbon Film Resistor 39K Ohm, 1
/4W
Carbon Film Resistor 20K Ohm, 1/4W
Carbon Film Resistor IOK Ohm, 1/4W,
Carbon Film Resistor 3.3K Ohm, 1/4W
Carbon Film Resistor 12K Ohm, 1
/4W
Carbon Film Resistor 6.8K Ohm, 1 /4W
Carbon Film Resistor 18K Ohm 1/4W,
Carbon Film Resistor 9.1 K Ohm 1/4W,
Carbon Film Resistor 15K Ohm l/4W
Carbon Film Resistor 47K Ohm 1 /4W
Carbon Film Resistor 10
Ohm 1 /4W,
Carbon Film Resistor 5.1 K Ohm, 1 /4W
Carbon
Film Resistor 56 Ohm 1 /4W
Carbon Film Resistor
560 Ohm, 1 /4~
