Atari CX User Manual

LOCATION
DESCRIPTION
Controller Cable Assy
Top Housing Assy
Pot
& Arm Assy
Cable Pot Assy

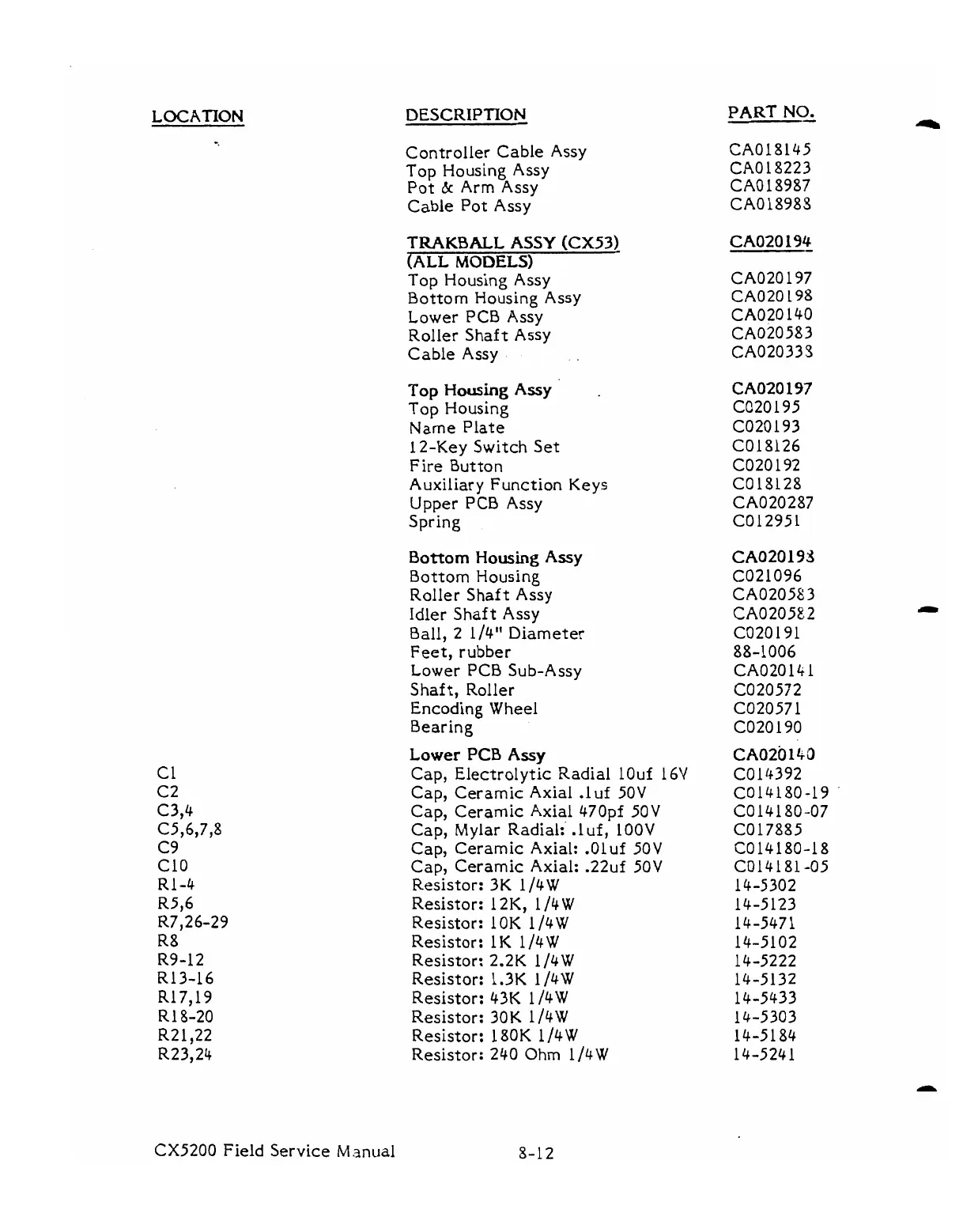

TRAKBALL ASSY (CX53)
(ALL MODELS)
Top Housing Assy
Bottom Housing Assy
Lower PCB Assy
Roller Shaft Assy
Cable Assy
. .
Top Housing Assy
Top Housing
Name Plate
12-Key Switch Set
Fire Button
Auxiliary Function
Keys
Upper PCB Assy
Spring
Bottom Housing Assy
Bottom Housing
Roller Shaft Assy
Idler
Shaft Assy
Ball, 2 114" Diameter
Feet, rubber
Lower PCB Sub-Assy
Shaft, Roller
Encoding Wheel
Bearing
Lower PCB Assy
Cap, Electrolytic Radial lOuf 16V
Cap, Ceramic Axial .l uf 50V
Cap, Ceramic Axial 470pf 50V
Cap, Mylar Radiali .l
uf, 1 OOV
Cap, Ceramic Axial: .Oluf 50V
Cap, Ceramic Axial: .22uf 50V
Resistor: 3K 1 /4
W
Resistor: 12K, 1 /4W
Resistor: 1OK 1/4W
Resistor:
1 K 1/4W
Resistor: 2.2K 114
W
Resistor: 1.3K 1 /4W
Resistor: 43K 1 /4
W
Resistor: 30K 114 W
Resistor: 180K 1/4W
Resistor: 240 Ohm 1/4W
PART NO,
CA018145
CAO 18223
CA0 18987
CA0 18983
CX5200 Field Service Manual 3-12
