Consumer Product Service
Manager of Tehnical Support

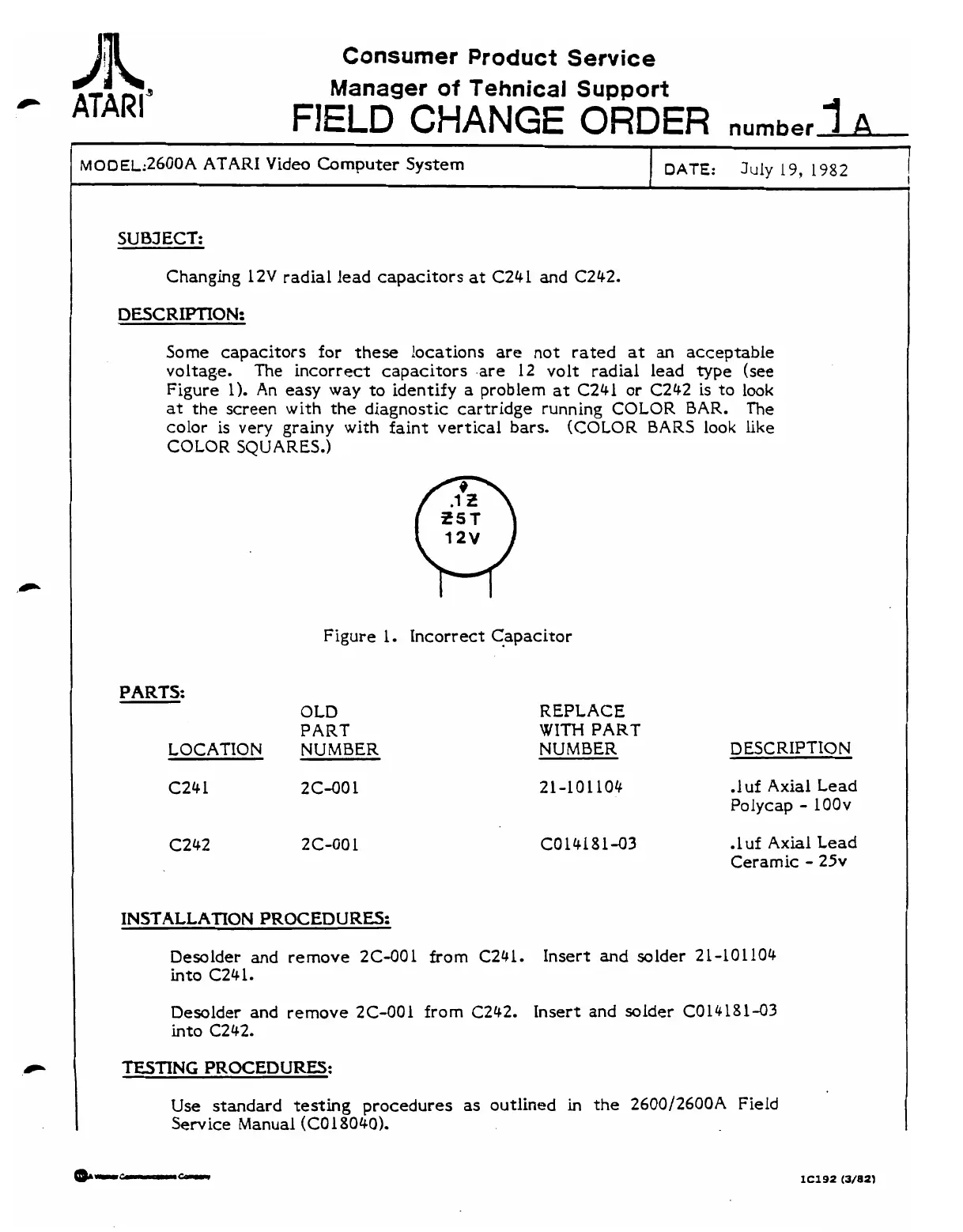

FIELD CHANGE ORDER nurnberk,
noo~~:2600A ATARI Video Computer System
SUBJECT:
Changing 12V radial lead capacitors at C24l and C242.
Some capacitors for these locations are not rated
at an acceptable
voltage. The incorrect capacitors
are 12 volt radial lead type (see
Figure
1). An easy way to identify a problem at C24l or C242 is to look
at the
screen with the diagnostic cartridge running COLOR BAR. The
color is very grainy with faint vertical bars. (COLOR BARS look like
COLOR SQUARES.)
Figure 1. Incorrect Capacitor
PARTS:
LOCATION
C24 1
OLD
PART
NUMBER
2C-00 1
2C-001
REPLACE
WITH PART
NUMBER DESCRIPTION
21-101104
. l uf Axial Lead
Polycap - lOOv
C014181-03
.l uf Axial Lead
Ceramic - 25v
INSTALLATION PROCEDURES:
Desolder and remove 2C-001 from C241. Insert and solder 21-101104
into C241.
Desolder and remove 2C-001
from C242. Insert and solder CO14181-03
into C242.
TESTING PROCEDURES:
Use standard testing procedures as outlined in the 2600/2600A Field
Service Manual
(C0 18040).
