ATAR
I"
Consumer
Product
Service
Manager
of
Technical
Support
TECH
TIP
.
--
number
.k,
SUBJECT:
MODEL:
5200
-
5200
Controller
Knob
Puller
Tool
DATE:
April
8,
1983
PROBLEM
AND
SOLUTION:
It has been learned that removal of the 5200 Controller Knob is difficult.
To assist you with this task,
a
5200 Controller Knob Puller Tool
(FC100214)
is
now available from our
Sales
Order Department.
USE
AND
METHODOLOGY:
This tool is used
to
easily remove the controller knob without damaging the
con troller.
Push the knob shaft into one of the corners of the top housing opening. Push
down the boot with the tool to expose the shaft. Push the tool toward the
shaft until the shaft is inside the notch of the tool's head (See Figure
I).
Now,
gently lever the tool, and the knob will
pop
off.
NOTE:
By using care, you will not damage the boot during this process.

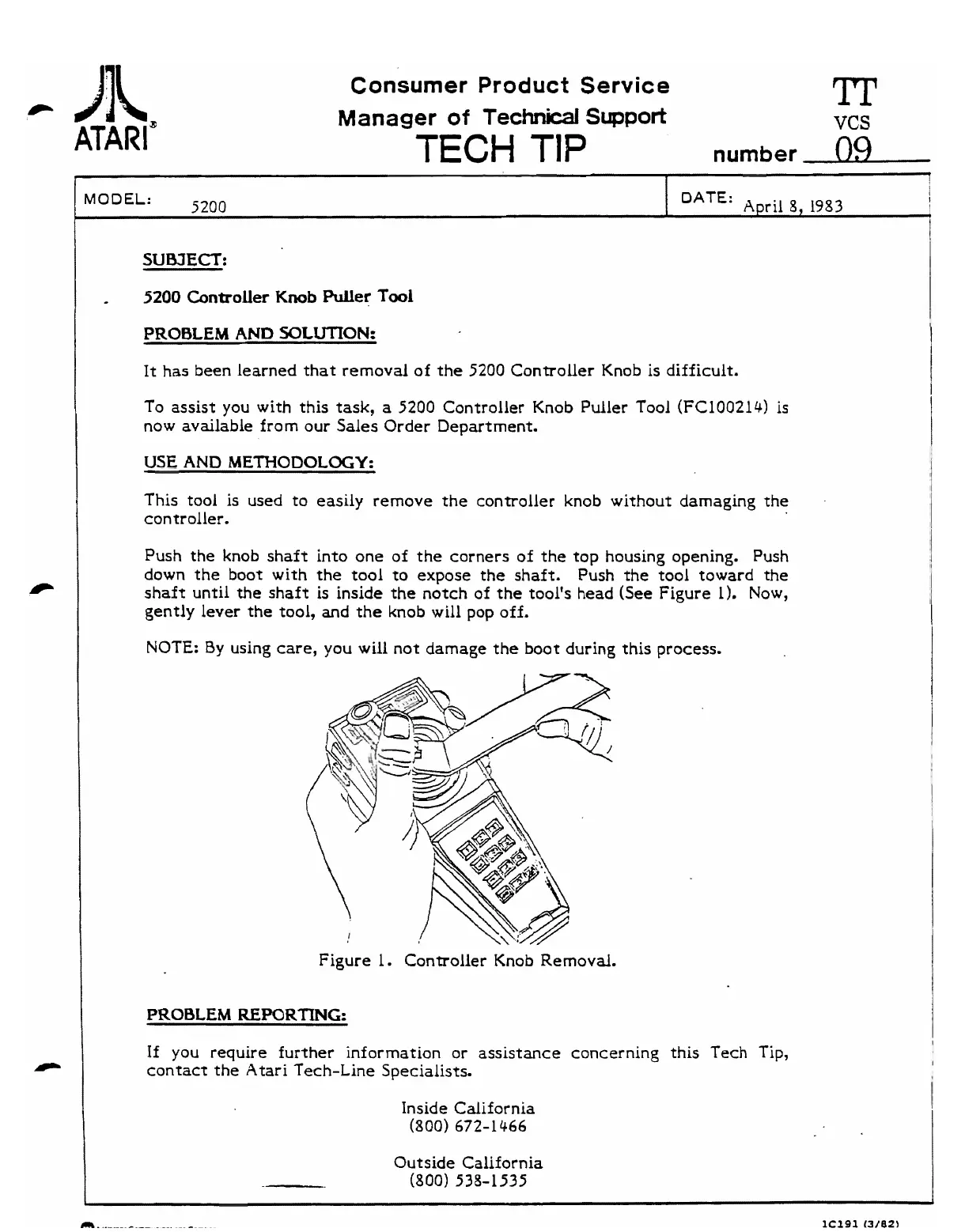

Figure
1.
Controller Knob Removal.
PROBLEM REPORTING:
If you require further information or assistance concerning this Tech Tip,
contact the Atari Tech-Line Specialists.
Inside California
(800)
672-1
466
Outside California
(800) 538-1535
