Atari WARLORDS - Monitor Removal

Warlords
TM
D.
Monitor
Removal
A
-
WARNING
—
£
—
Shock
Hazard
High voltages
may
exist
in
any televi-
sion or
monitor,
even with
power discon-
nected. Use extreme
caution
and
do not
touch electrical
parts of
the
yoke
area
with your hands
or with
metal
objects in
your hands!
Implosion
Hazard
If you drop
the monitor
and
the
tube breaks, it will
implode!
Shattered
glass and the yoke
can fly
6 feet
or more
from
the
implosion.
Use care
when
re-
placing
any
monitor.
If
you should
need
to remove the
monitor, follow
steps 1 thru
4
that follow.
Refer
also
to
Figure 11.
1.
Unplug
the game from
its
wall outlet!
Open the
rear
access
panel. Reach
in the opening and
unplug
the 12-pin
harness
connector at
the
bot-
tom (rear) of
the monitor
chassis.
2.
Unplug
the 5-pin harness
connector located
at
the
center left side of
the access panel
opening.
3. Remove
the two screws
that hold rear of the
monitor frame
to
the
cabinet walls.
4. Locate
the two black “L”
brackets
that
hold the
rear of
the monitor to the cabinet walls.
Remove
the four screws
that secure these
brackets
to
the
cabinet.
5. Slightly lift
up the monitor chassis, and slide it
out the rear of the game.
You
might have
to
slightly
bend
the
bottom
rear flap of the large
cardboard bezel.

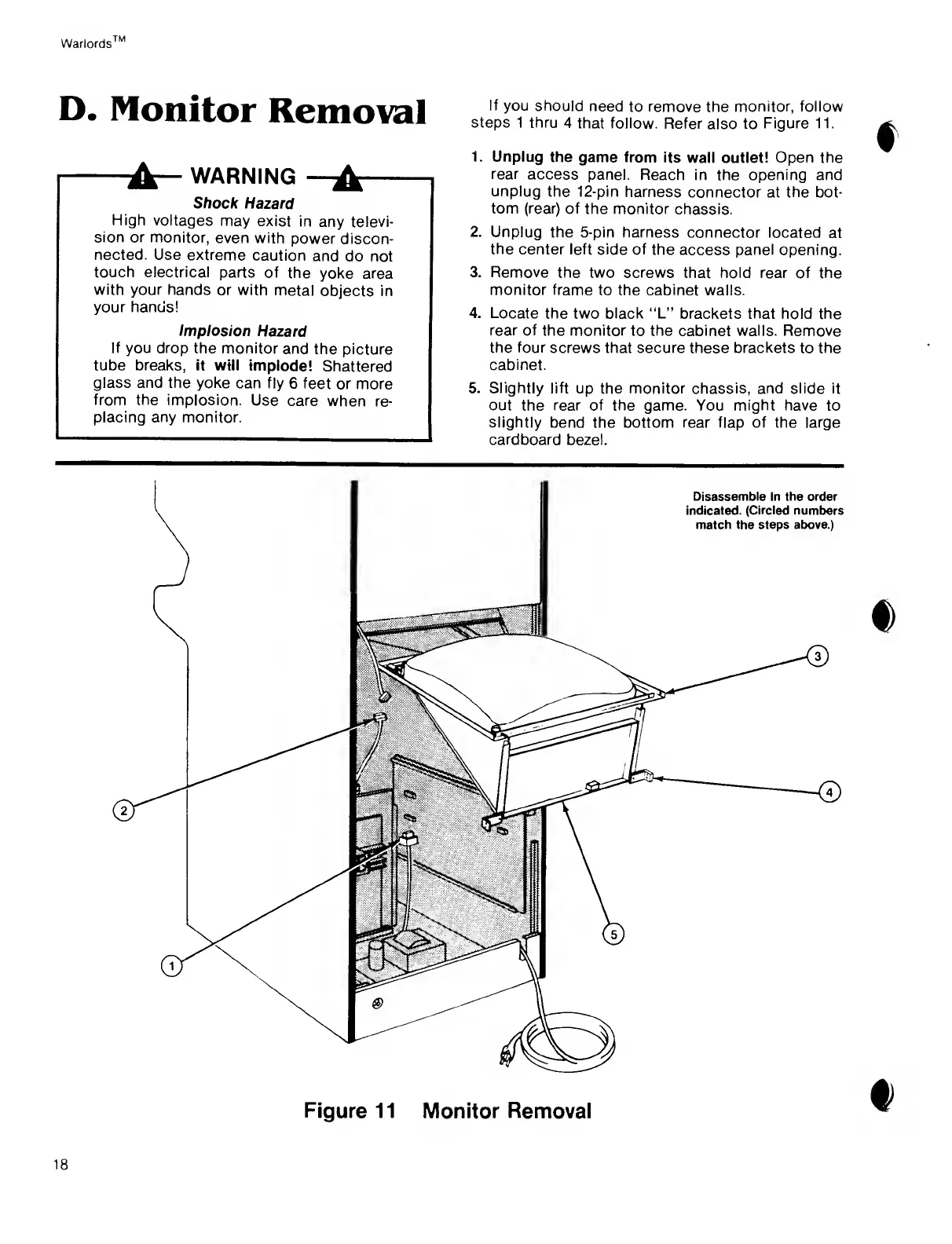

Figure 11
Monitor Removal
18
