Atari WARLORDS - Control Panel

Warlords
TM
62039
(LED
Switch)
75-07054
(Spacer)
A037206-01
(Ctrl.
Panel)
75-991 0W0
(Stamped
Nut)
033127-01
(Sw.
Bushing)
19-9022
(Potentiometer)
73-834
(Knob)
NOTICE
TO ALL
PERSONS
RECEIVING
THIS
DRAWING
CONFIDENTIAL:
Reproduction
forbidden
without the spe-
cific
written
permission
of Atari, Inc.,
Sunnyvale,
CA. This
drawing is only
conditionally
issued, and
neither
receipt
nor
possession
thereof
confers or
transfers
any
right in, or
li-
cense to use,
the
subject
matter of the
drawing
or any de-
sign or
technical
information
shown
thereon,
nor any
right
to
reproduce
this
drawing
or any part
thereof.
Except
for
manufacture by
vendors
of Atari, Inc.,
and
for
manufacture
under
the corporation's
written
license,
no
right to
repro
duce
this
drawing is
granted or the
subject
matter
thereof
unless
by
written
agreement
with or
written
permission
from
the
corporation.
A037234-01
(Harness)
Be
sure
ground
wire
is
attached
to
center
mounting
bolt before
locking
up
the
control
panel.

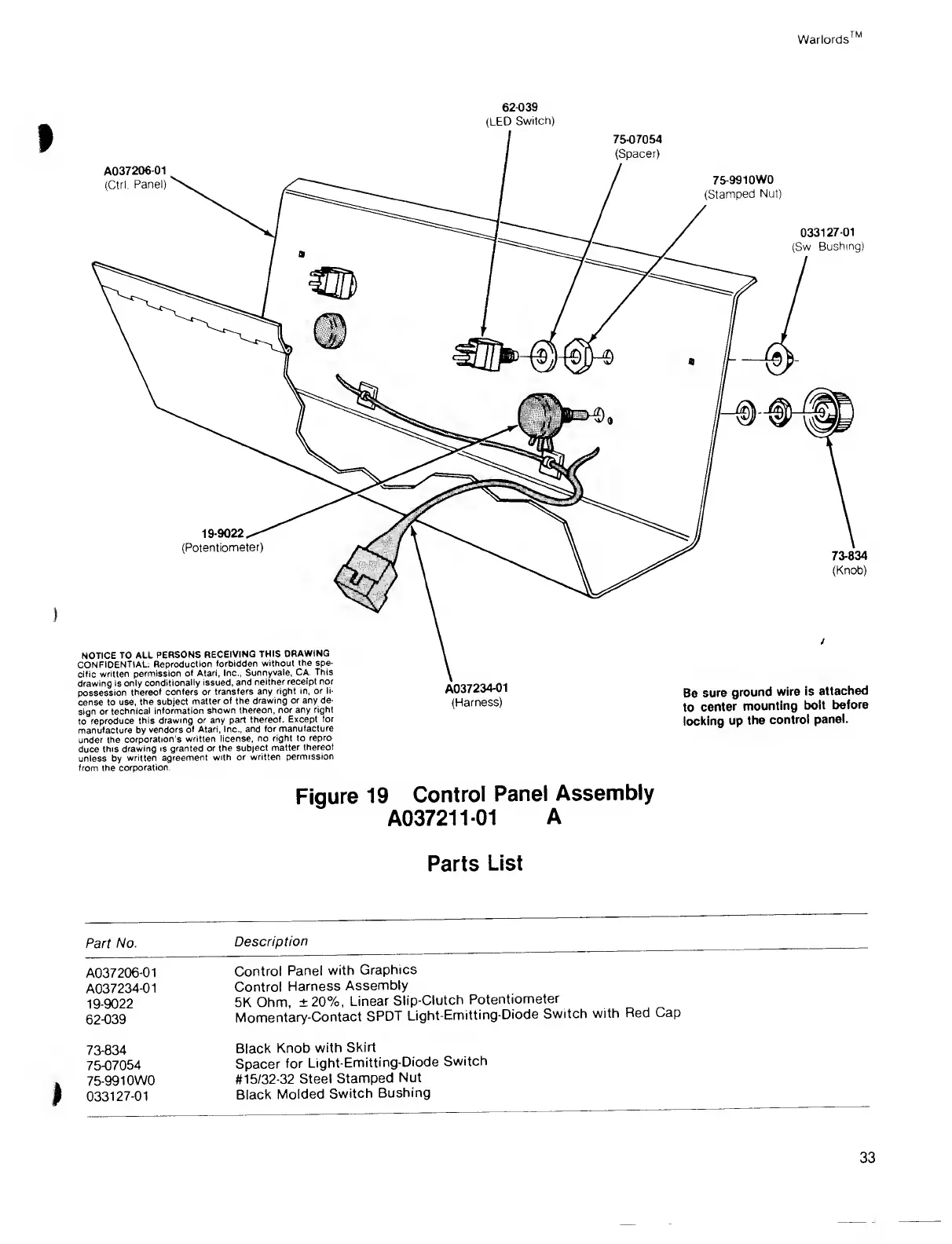

Figure
19
Control
Panel
Assembly
A037211-01
A
Parts
List
Part
No.
Description
A037206-01
A037234-01
19-9022
62-039
Control
Panel
with
Graphics
Control
Harness
Assembly
5K
Ohm,
±20%,
Linear
Slip-Clutch
Potentiometer
Momentary-Contact
SPDT
Light-Emitting-Diode
Switch
with
Red Cap
73-834
75-07054
75-99 10W0
033127-01
Black
Knob
with
Skirt
Spacer
for
Light-Emitting-Diode
Switch
#15/32-32
Steel
Stamped
Nut
Black
Molded
Switch
Bushing
