Warlords
TM

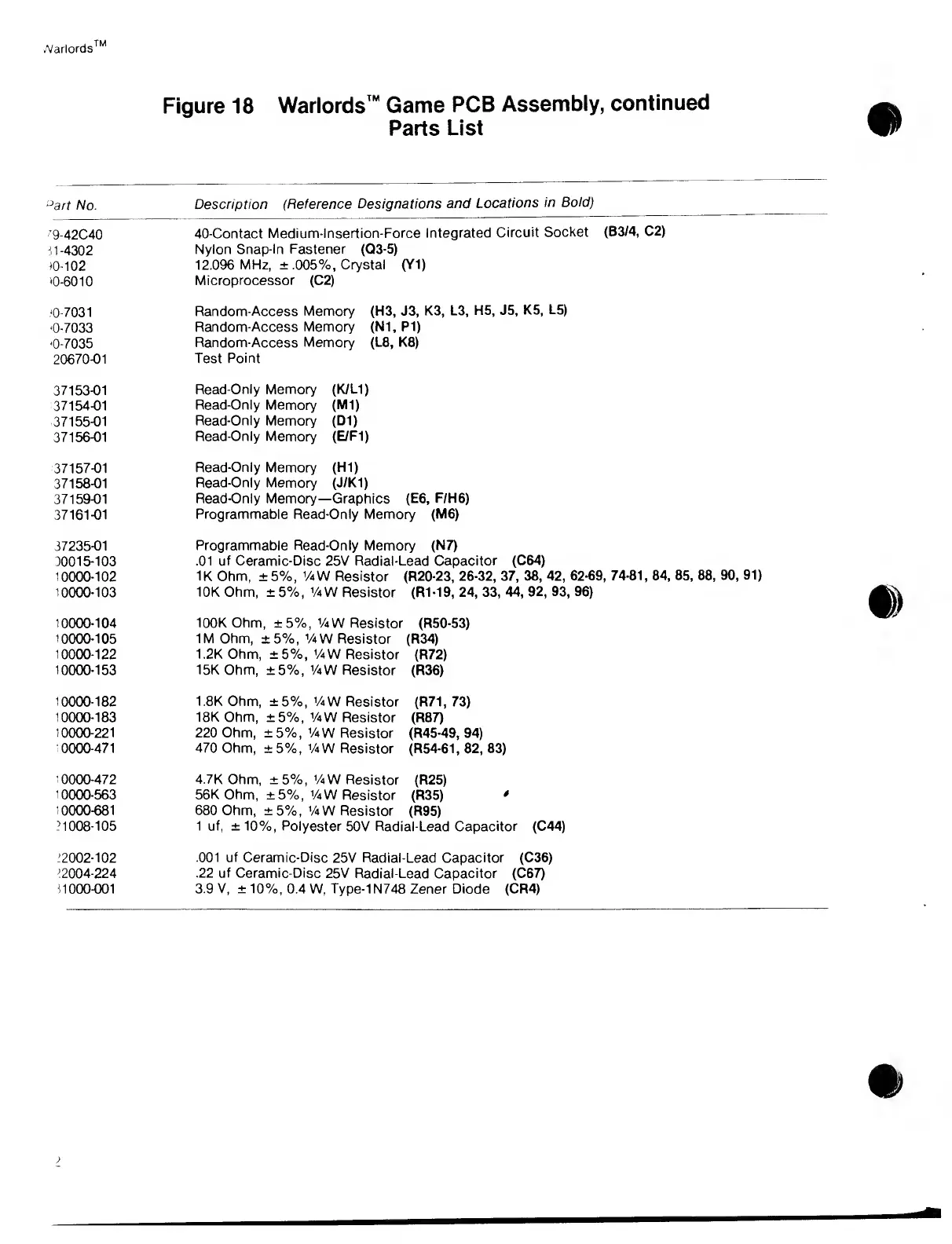

Figure 18
Warlords™
Game
PCB
Assembly,
continued
Parts
List
a
art No.
Description
(Reference Designations
and
Locations
in
Bold)
’9-42C40
31-4302
10-102
*0-6010
40-Contact
Medium-Insertion-Force
Integrated
Circuit
Socket
(B3/4,
C2)
Nylon
Snap-In Fastener
(Q3-5)
12.096
MHz,
±.005%,
Crystal
(Y1)
Microprocessor
(C2)
.'0-7031
<0-7033
'0-7035
20670-01
Random-Access Memory (H3, J3,
K3, L3,
H5, J5,
K5,
L5)
Random-Access Memory (N1,
PI)
Random-Access
Memory
(L8,
K8)
Test Point
37153-01
37154-01
37155-01
37156-01
Read-Only Memory (K/L1)
Read-Only Memory
(Ml)
Read-Only Memory (D1)
Read-Only Memory (E/FI)
37157-01
37158-01
37159-01
37161-01
Read-Only Memory (HI)
Read-Only Memory (J/K1)
Read-Only Memory—Graphics (E6, F/H6)
Programmable Read-Only Memory (M6)
37235-01
00015-103
'0000-102
10000-103
Programmable
Read-Only Memory
(N7)
.01 uf
Ceramic-Disc 25V Radial-Lead
Capacitor (C64)
IK Ohm,
±
5%,
1
/
4
W
Resistor
(R20-23, 26-32,
37, 38,
42,
62-69,
74-81,
84,
85,
88, 90,
91)
10K Ohm,
±
5%,
V4 W Resistor (R1-19,
24, 33,
44, 92, 93,
96)
10000-104
10000-105
10000-122
10000-153
100K Ohm,
±5%,
V4
W Resistor (R50-53)
1M Ohm,
±5%,
'A
W
Resistor (R34)
1.2K Ohm,
±5%,
’AW
Resistor (R72)
15K
Ohm,
±5%,
V«W
Resistor
(R36)
10000-182
10000-183
10000-221
0000-471
1.8K
Ohm,
±5%,
V<W
Resistor (R71,
73)
18K Ohm,
±5%,
V*\N
Resistor (R87)
220
Ohm,
±5%,
’AW
Resistor (R45-49,
94)
470
Ohm,
±
5%,
i/4
W Resistor (R54-61,
82, 83)
10000-472
10000-563
10000-681
21008-105
4.7K Ohm,
±5%,
1
/4 W
Resistor (R25)
56K Ohm,
±5%,
1
/
4
W
Resistor (R35)
*
680 Ohm,
±5%,
’AW Resistor (R95)
1
uf,
±10%,
Polyester
50V
Radial-Lead Capacitor (C44)
12002-102
'2004-224
31000-001
.001 uf
Ceramic-Disc 25V Radial-Lead Capacitor (C36)
.22 uf Ceramic-Disc
25V Radial-Lead Capacitor (C67)
3.9 V, ±
10%,
0.4
W, Type-1 N748 Zener Diode (CR4)
)
To Next Page
