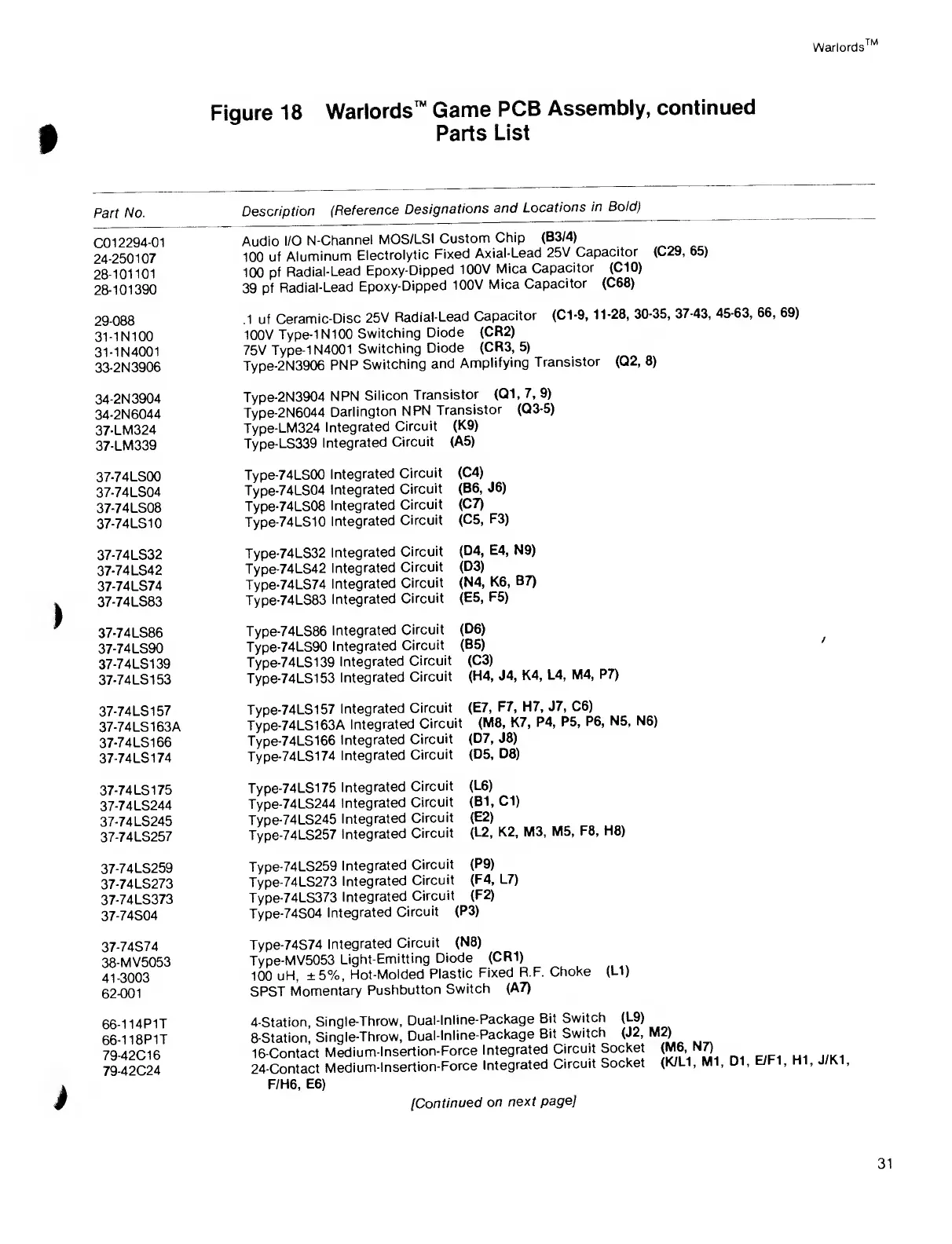

Atari WARLORDS - Page 36

Warlords
TM
Figure
18
Warlords™
Game
PCB
Assembly,
continued
Parts
List
Part
No.
Description
(Reference
Designations
and
Locations
in
Bold)
C0
12294-01
24-250107
28-101101
28-101390
Audio
I/O
N-Channel
MOS/LSI
Custom
Chip
(B3/4)
100
uf
Aluminum
Electrolytic
Fixed
Axial-Lead
25V
Capacitor
(C29,
65)
100
pf
Radial-Lead
Epoxy-Dipped
100V
Mica
Capacitor
(CIO)
39
pf
Radial-Lead
Epoxy-Dipped
100V
Mica
Capacitor
(C68)
29-088
31-1 N 100
31-1N4001
33-2N3906
.1 uf
Ceramic-Disc
25V
Radial-Lead
Capacitor
(C1-9,
11-28,
30-35,
37-43,
45-63,
66, 69)
100V
Type-1
N100
Switching
Diode
(CR2)
75V Type-1
N4001
Switching
Diode
(CR3,
5)
Type-2N3906
PNP
Switching
and
Amplifying
Transistor
(Q2, 8)
34-2N3904
34-2N6044
37-LM324
37-LM339
Type-2N3904
NPN
Silicon
Transistor
(Q1,
7,
9)
Type-2N6044
Darlington
NPN
Transistor
(Q3-5)
Type-LM324
Integrated
Circuit
(K9)
Type-LS339
Integrated
Circuit
(A5)
37-74LS00
37-74LS04
37-74LS08
37-74LS10
Type-74LS00
Integrated
Circuit
(C4)
Type-74LS04
Integrated
Circuit
(B6,
J6)
Type-74LS08
Integrated
Circuit
(C7)
Type-74LS10
Integrated
Circuit
(C5,
F3)
37-74LS32
37-74LS42
37-74LS74
37-74LS83
Type-74 LS32
Integrated
Circuit
(D4,
E4, N9)
Type-74LS42
Integrated
Circuit
(D3)
Type-74LS74
Integrated
Circuit
(N4,
K6,
B7)
Type-74LS83
Integrated
Circuit
(E5,
F5)
37-74LS86
37-74LS90
37-74LS139
37-74LS153
Type-74LS86
Integrated
Circuit
(D6)
Type-74LS90
Integrated
Circuit
(B5)
'
Type-74LS139
Integrated
Circuit
(C3)
Type-74LS153
Integrated
Circuit
(H4, J4,
K4,
L4,
M4,
P7)
37-74LS157
37-74LS163A
37-74LS166
37-74LS174
Type-74LS157
Integrated
Circuit
(E7,
F7,
H7,
J7,
C6)
Type-74LS163A
Integrated
Circuit
(M8, K7,
P4,
P5,
P6,
N5, N6)
Type-74LS166
Integrated
Circuit
(D7, J8)
Type-74LS174
Integrated
Circuit
(D5,
D8)
37-74LS175
37-74 LS244
37-74LS245
37-74LS257
Type-74LS175
Integrated
Circuit
(L6)
Type-74LS244
Integrated
Circuit
(B1,
Cl)
Type-74LS245
Integrated
Circuit
(E2)
Type-74LS257
Integrated
Circuit
(L2,
K2, M3,
M5,
F8,
H8)
37-74
LS259
37-74LS273
37-74LS373
37-74S04
Type-74LS259
Integrated
Circuit
(P9)
Type-74LS273
Integrated
Circuit
(F4,
L7)
Type-74LS373
Integrated
Circuit
(F2)
Type-74S04
Integrated
Circuit
(P3)
37-
74S74
38-
MV5053
41-3003
62-001
Type-74S74
Integrated
Circuit
(N8)
Type-MV5053
Light-Emitting
Diode
(CR1)
100
uH,
±5%,
Hot-Molded
Plastic
Fixed
R.F.
Choke
(LI)
SPST
Momentary
Pushbutton
Switch
(A7)
66-1
14P1T
66-118P1T
79-42C16
79-42C24
4-Station,
Single-Throw,
Dual-Inline-Package
Bit
Switch
(L9)
8-Station,
Single-Throw,
Dual-Inline-Package
Bit
Switch
(J2,
M2)
16-Contact
Medium-Insertion-Force
Integrated
Circuit
Socket
(M6,
N7)
24-Contact
Medium-Insertion-Force
Integrated
Circuit
Socket
(K7L1,
Ml, D1,
,
,
,
F/H6,
E6)
[Continued
on
next
page]
