Warlords
TM

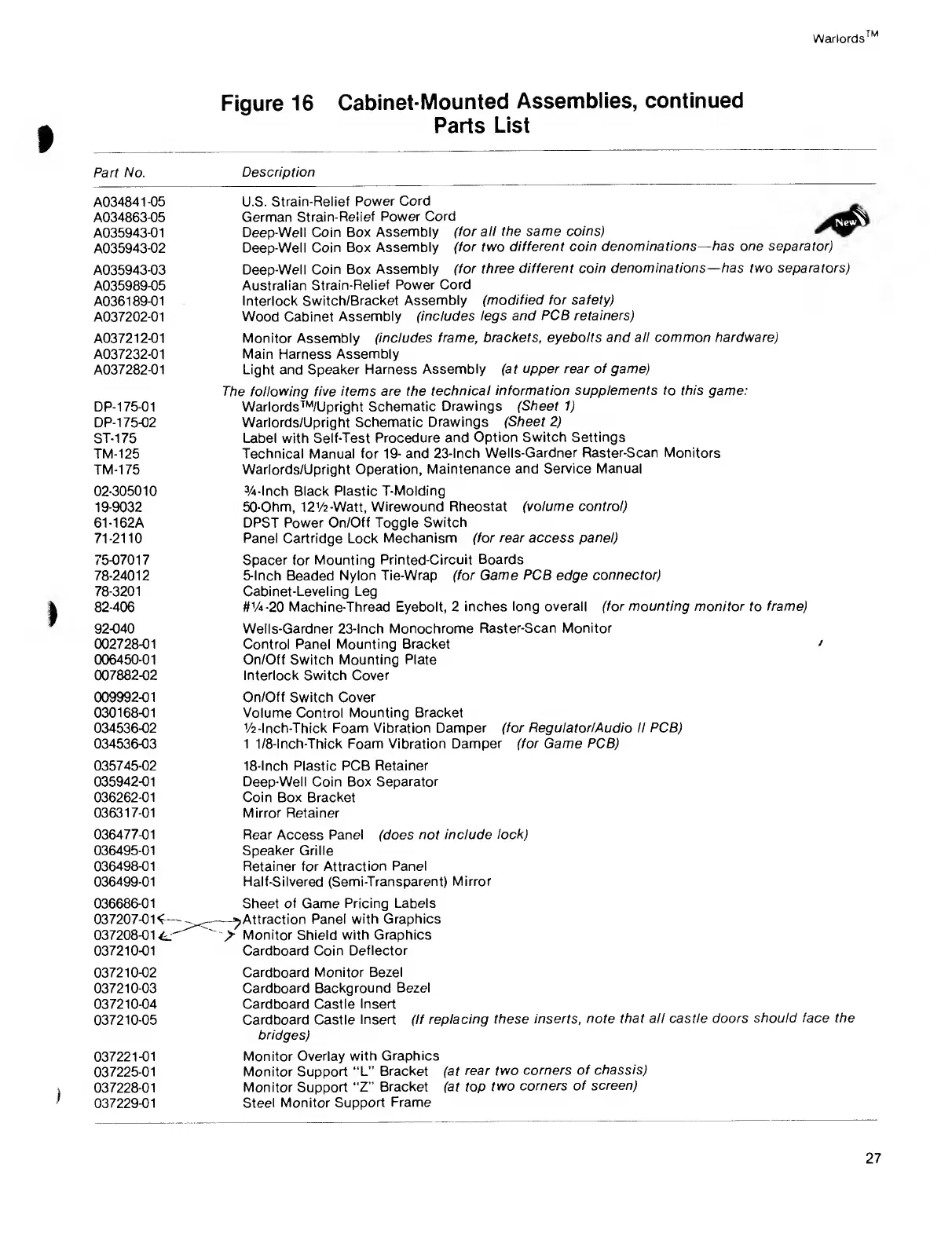

Figure
16
Cabinet-Mounted
Assemblies,
continued
Parts
List
Part
No.
Description
A034841-05
A034863-05
A035943-01
A035943-02
U.S.
Strain-Relief
Power
Cord
German
Strain-Relief
Power
Cord
Deep-Well Coin
Box
Assembly
(for all the
same coins)
Svfjr
Deep-Well
Coin Box
Assembly
(for two
different coin
denominations—has one separator)
A035943-03
A035989-05
A036
189-01
A037202-01
Deep-Well
Coin Box
Assembly
(for three
different coin
denominations—has two separators)
Australian
Strain-Relief
Power Cord
Interlock
Switch/Bracket
Assembly
(modified for safety)
Wood
Cabinet
Assembly
(includes
legs and
PCB retainers)
A037212-01
A037232-01
A037282-01
Monitor Assembly
(includes
frame,
brackets, eyebolts and all common hardware)
Main Harness
Assembly
Light and Speaker
Harness
Assembly (at
upper rear of game)
DP-175-01
DP-175-02
ST-175
TM-125
TM-175
The following five items are the
technical
information
supplements
to this game:
Warlords™/Upright
Schematic
Drawings
(Sheet
1)
Warlords/Upright
Schematic
Drawings (Sheet
2)
Label with
Self-Test Procedure
and
Option Switch Settings
Technical Manual for
19-
and
23-Inch
Wells-Gardner
Raster-Scan
Monitors
Warlords/Upright
Operation,
Maintenance
and Service Manual
02-305010
19-9032
61-162A
71-2110
3
4-lnch Black Plastic
T-Molding
50-Ohm, 12V2-Watt,
Wirewound Rheostat
(volume control)
DPST Power
On/Off Toggle Switch
Panel Cartridge Lock
Mechanism (for
rear
access
panel)
75-07017
78-24012
78-3201
82-406
Spacer for
Mounting Printed-Circuit
Boards
5-Inch Beaded Nylon
Tie-Wrap (for
Game PCB
edge
connector)
Cabinet-Leveling Leg
#V4-20
Machine-Thread Eyebolt, 2
inches
long overall (for mounting
monitor to
frame)
92-040
002728-01
006450-01
007882-02
Wells-Gardner 23-Inch Monochrome
Raster-Scan Monitor
Control Panel Mounting Bracket
On/Off Switch Mounting Plate
Interlock
Switch Cover
/
009992-01
030168-01
034536-02
034536-03
On/Off Switch Cover
Volume Control Mounting Bracket
V2 -Inch-Thick Foam Vibration
Damper (for Regulator/Audio
II
PCB)
1 1/8-Inch-Thick Foam Vibration
Damper (for Game PCB)
035745-02
035942-01
036262-01
036317-01
18-Inch Plastic PCB Retainer
Deep-Well Coin
Box Separator
Coin Box Bracket
Mirror
Retainer
036477-01
036495-01
036498-01
036499-01
Rear
Access
Panel
(does
not include
lock)
Speaker
Grille
Retainer for Attraction
Panel
Half-Silvered
(Semi-Transparent) Mirror
036686-01
037207-01
037208-01
037210-01
Sheet
of
Game
Pricing Labels
^Attraction
Panel with Graphics
>
Monitor Shield with
Graphics
Cardboard Coin
Deflector
037210-02
037210-03
037210-04
037210-05
Cardboard Monitor Bezel
Cardboard Background
Bezel
Cardboard Castle
Insert
Cardboard
Castle Insert
(If replacing
these inserts,
note that all castle doors
should
face
the
bridges)
037221-01
037225-01
037228-01
037229-01
Monitor
Overlay
with Graphics
Monitor
Support “L”
Bracket (at
rear
two corners
of chassis)
Monitor Support “Z”
Bracket (at top
two
corners of screen)
Steel Monitor
Support
Frame
27
