2.8 E ectrical hook-upl
Important—Although the heat pump is electrically isolated from the rest of the unit, this only prevents
the passage of electricity to or from the pool water. Grounding the unit is still requi red to p rotect
yourself from short circuits inside the unit. Make for adequate ground connection.
Check if the electrical mains voltage corresponds with the operating voltage of the heat pump prior to
hooking up the unit.
It is recommended to use a separate fuse( slow type- D- curve) as well as adequate wiring( see table
below) .
For horizontal models : remove the panel on the right of the fan opening.
For vertical models: remove the curve panel in the front side.

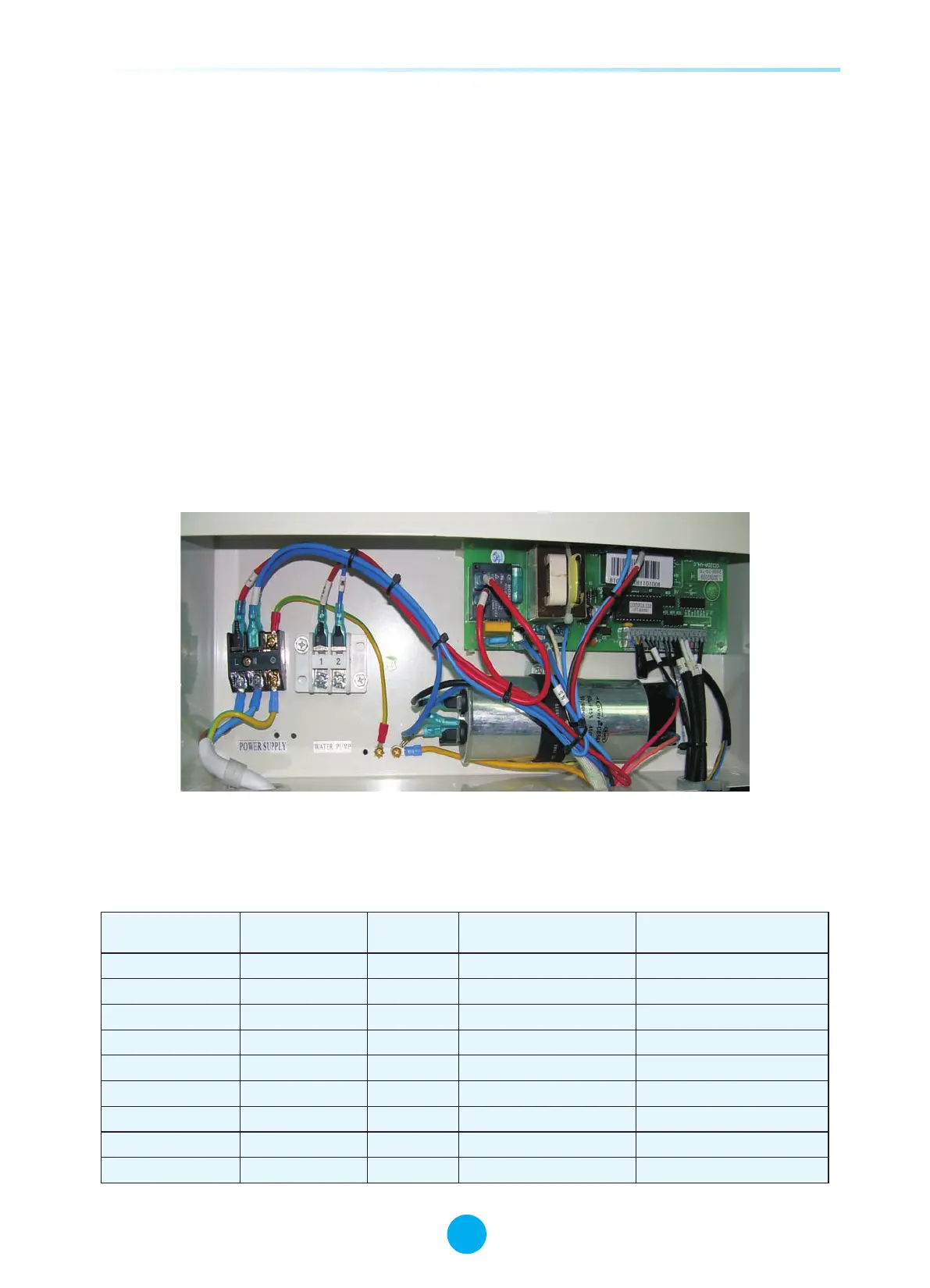

Connect the electrical wires with the terminal block labelled “Power Supply” .
Next to this connection, there is a second terminal block labelled “Water Pump”,to which the filter
pump( max.5A/ 240V) can be connected. This connection makes it possible to control filter
pump operation with the heat pump. See further at Parameter setting table (Parameter 9) for the
different possibilities.
Remarks—for models with 3 phases, switching 2 phases may cause in inversion in the rotational direction
of electrical motors, which could damage the unit. Therefore, a protection device has been built in, which
will interrupt the circuit if the connection has not been performed correctly.
Model
WBR-9.5H-A
WBR-11.3H-A
WBR-12.5H-A
WBR-14.0H-A
WBR-17.0H-A
WBR-14.0H-A-S
WBR-17.0H-A-S
WBR-21.0H-A-S
WBR-26.0H-A-S
Voltage(volt)
Fuse(A) Nominal current(A)
2
Cable diameter(mm )
(for max.length of 15 meters
220-240
220-240
220-240
220-240
220-240
3x380
3x380
3x380
3x380
16
16
20
25
25
10
10
16
16
9.5
11.5
12.4
13.9
16.7
5.2
6.2
7.9
9.7
2x2.5+2.5
2x2.5+2.5
2x2.5+2.5
2x4.0+4.0
2x4.0+4.0
4x2.5+2.5
4x2.5+2.5
4x2.5+2.5
4x2.5+2.5
