ATEQ F520 - Regulator; Automatic Calculation of Limits

Chapter 4 – Functions of the instrument
UM-23100B-U User manual ATEQ F CLASS Page 61/90

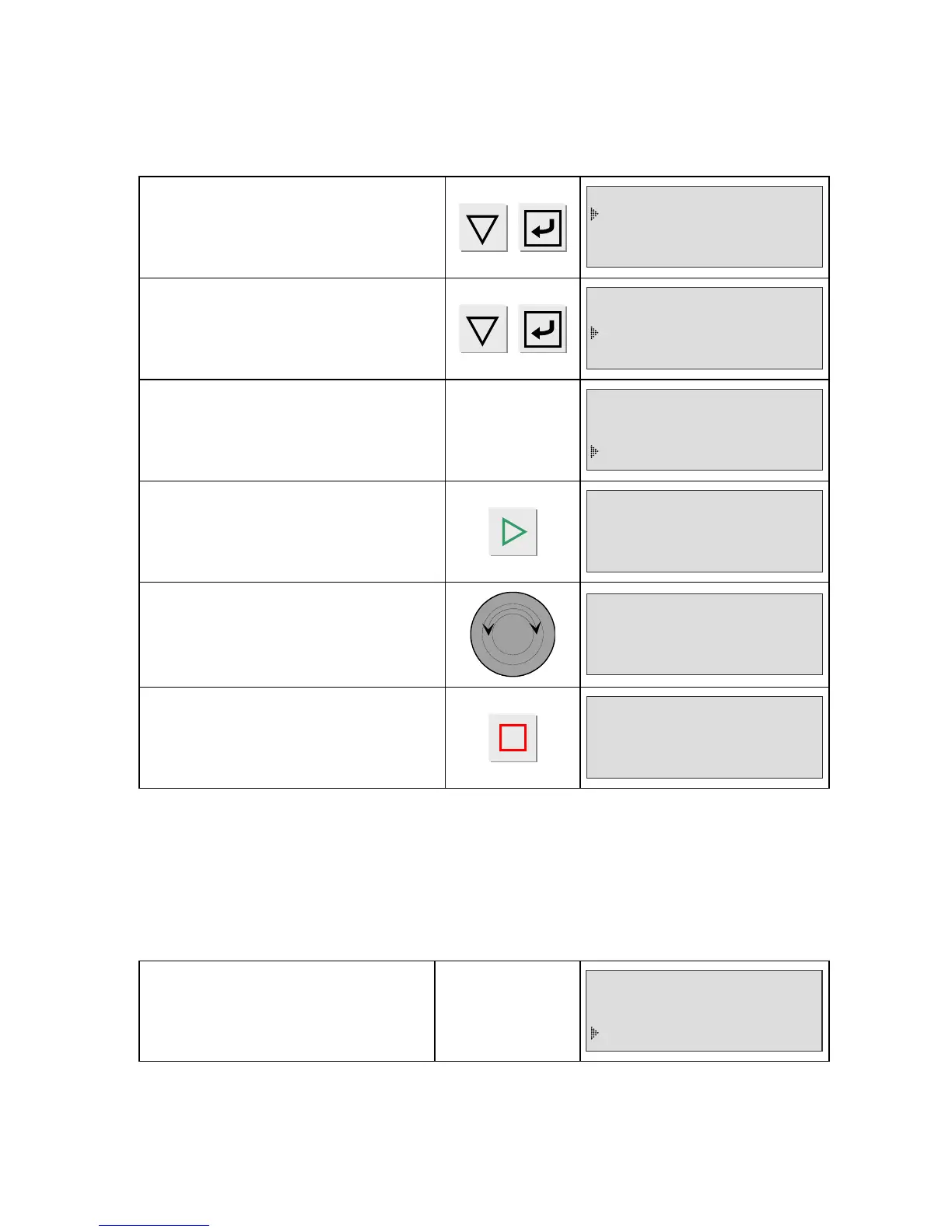

3.2. REGULATOR
This special cycle enables the main regulator pressure to be set.
Position the cursor in front of SPE
CYCLE and confirm using the
ENTER key.
SPE CYCLE
Disabled
Regulator adjust
Infinite fill
Next , position the cursor in front of
Regulator adjust and confirm using
the ENTER key.
SPE CYCLE
Disabled
Regulator adjust
Infinite fill
The display confirms that the special
cycle has been selected.
MAIN MENU
RUN PROG.: 005
PARAMETERS
SPE CYCLE:Regul
Press the START key to start the
special cycle.
RUN/Pr :001
PRESS = 355.5 mbar
REGULATOR 1 ADJUST
Adjust the value of the pressure with
the regulator.
_
+
RUN/Pr :001
PRESS = 500.0 mbar
REGULATOR 1 ADJUST
Once the pressure is adjusted, press
the RESET key to stop the special
cycle.
RUN/Pr :001
PRESS = 0.000 bar
READY
3.3. AUTOMATIC CALCULATION OF LIMITS
This function enables maximum and minimum pressure monitoring limits to be
programmed in relation to the settings on the selected regulator.
The limit values calculated automatically are plus or minus 20% of the measured value.
Calculation and automatic input of the limits are done in the active program.
Confirm the special regulator setting
cycle.
MAIN
MENU
RUN PROG. : 001
PARAMETERS
SPE CYCLE: Regul.
