Chapter 5 - Accessories
UM-23100B-U User manual ATEQ F CLASS Page 79/90
2.5. SIMPLE REMOTE CONTROL
The remote control allows the remote operation and selection of various settings for
instruments in the ATEQ range.
2.5.1. Casing reset/start
Example :
START / RESET
Télémécanique
TLC

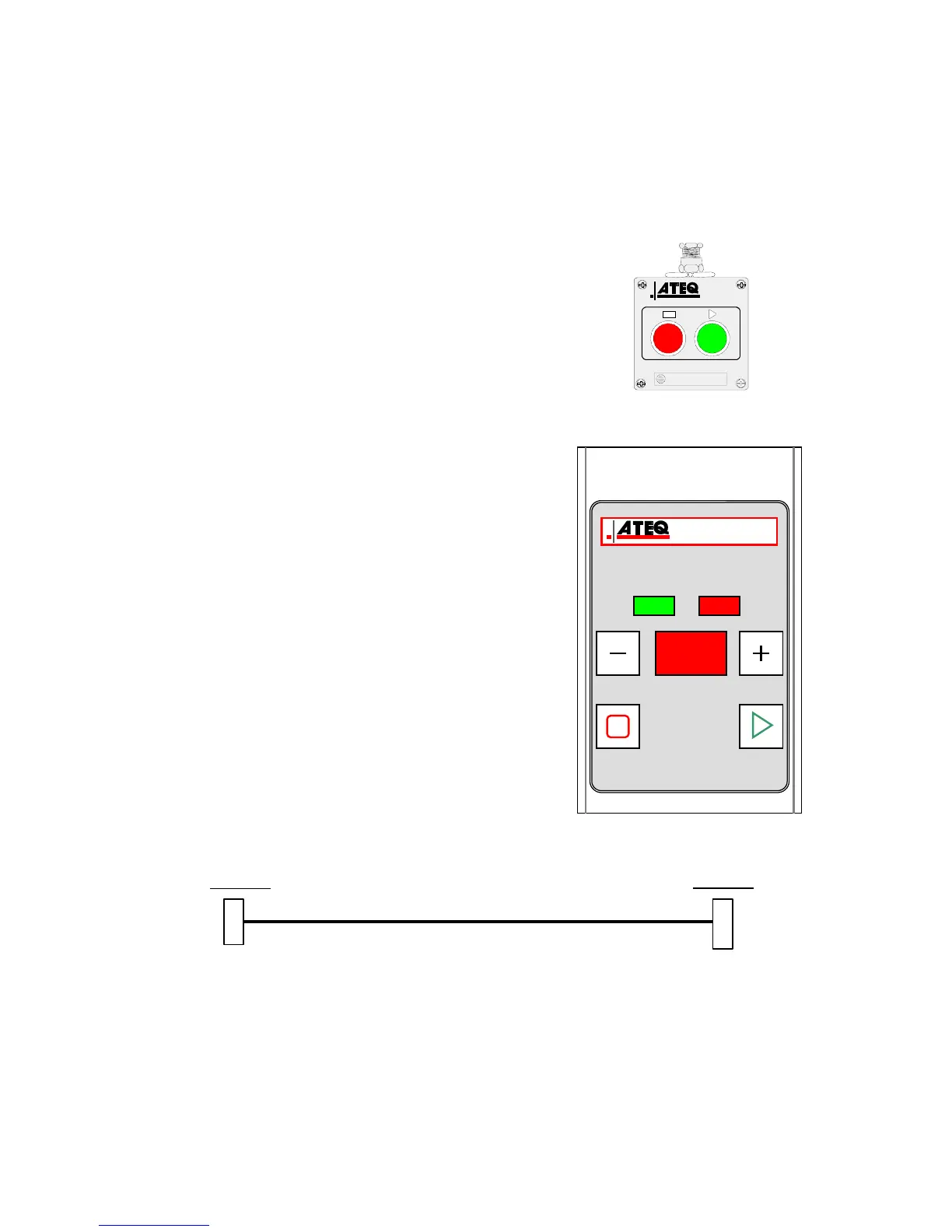

2.5.2. S5 four-function remote control
This remote control has four functions which can
be used to control a series 5 instrument remotely.
(F580 or C540 single head only).
The four functions on this remote control are as
follows:
9 RESET and start cycle.
9 Increase or decrease program numbers.
9 Display the number of the program
selected.
9 Display the test result, green indicator light
for Pass, red indicator light for Fail or alarm.
Note: a program number can only be changed
(increase or decrease) when no test cycle is
running.
TLC S5
88
www.ateq.com
2.5.2. 1) Connection diagram
J3
F CLASS
TLC RC5
