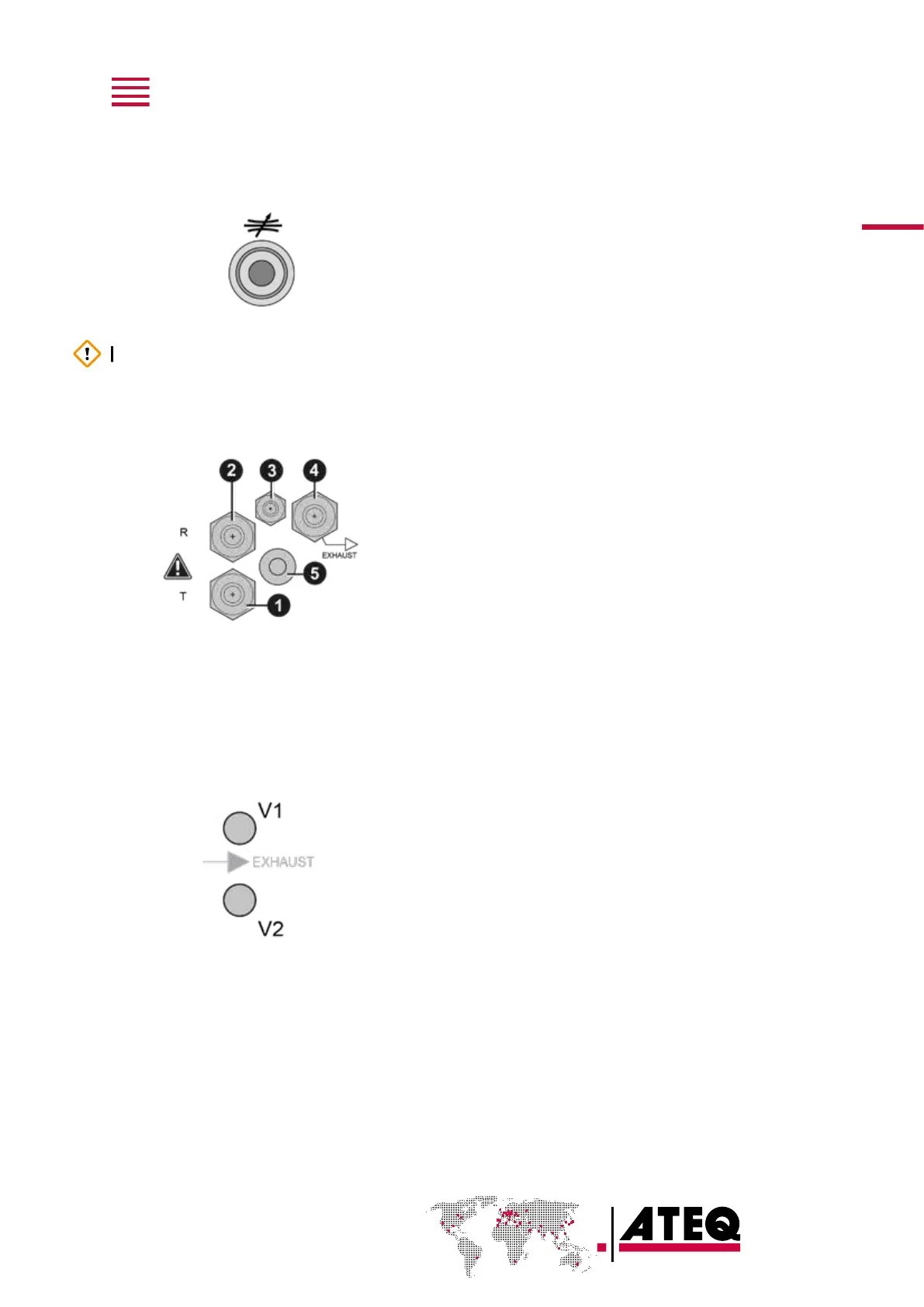

Quick connector (on front face) (option)
Use this function to check the calibration.
As this connector is part of the measurement circuit, all its connections must be air tight.
Test and reference outputs
The outputs enables parts to be connected (test and reference)
1 Test connector
2 Reference connector
3 Not used
4 Exhaust output
5 Pressurization output
Metallic fitting available for test(1) and
reference(2) connectors:
— 2.7/4 mm
— 3/5 mm
— 4/6 mm
— 6/8 mm
Differential sealed part connectors (option) (V1 and V2)
External volume (closed tube) connection.
Metallic fitting available for V1 and V2
connectors:
— 2.7/4 mm
