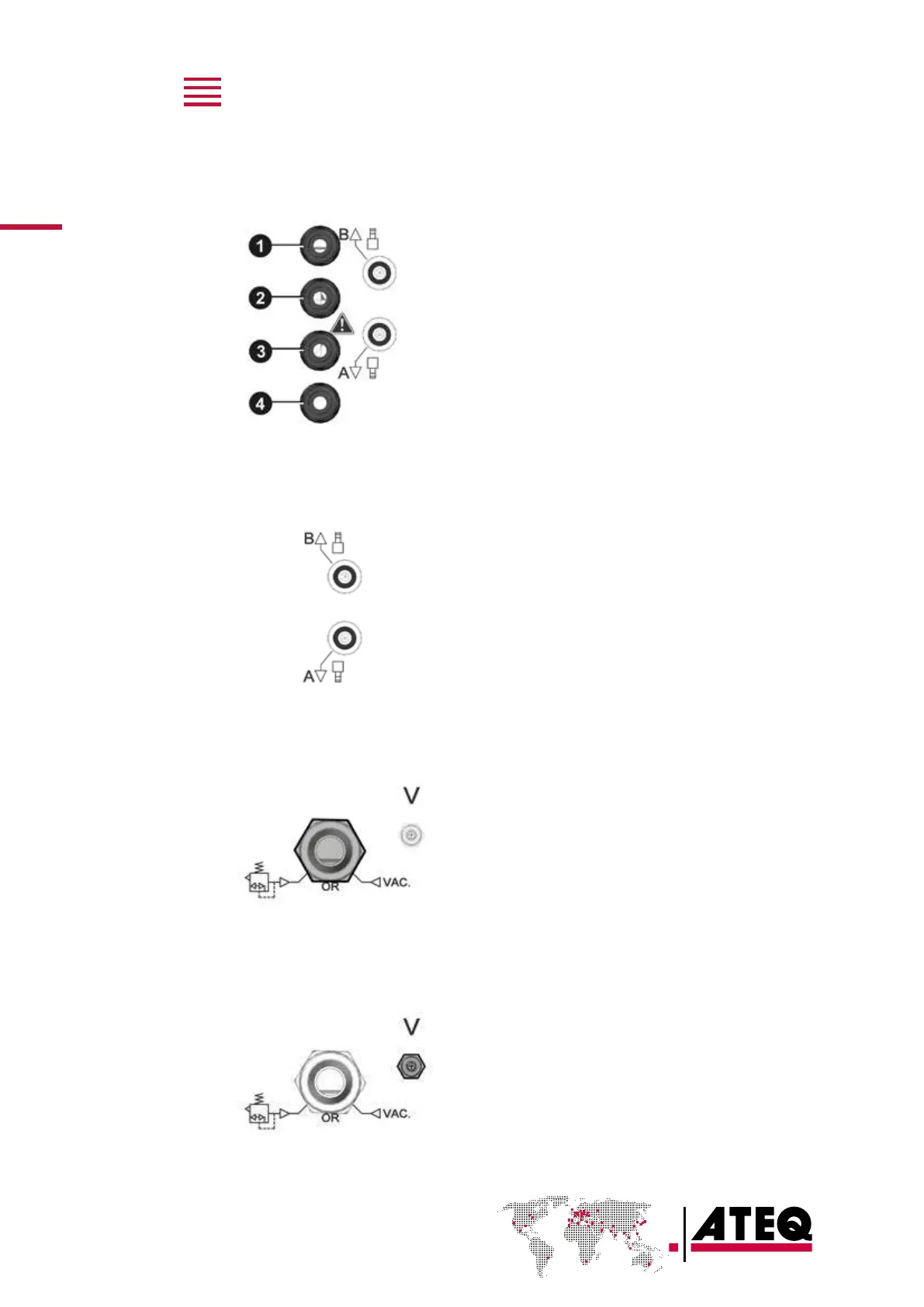

Other inputs / outputs
The outputs enables parts to be connected (test and reference)
1 Pilot pressure input or test pressure
input (according configuration)
2 Test pressure output (indirect mode)
(from 0.5 to 2MPa (72.5 to 290 PSI)
according configuration)
3 Pneumatic input or output (according
configuration)
4 Exhaust output (indirect mode)
Pneumatic output 0.6MPa (87PSI) (option)
A and B: automatic connectors option. These
connectors are used to drive pneumatic
caps on the part under test.
Air supply input for options
Instant fitting: 6 mm diameter
— Vacuum input for vacuum range
— External regulated pressure (according
configuration)
Calibration check by volume variation connector (option) (V)
External volume (closed tube) connection.
