2.9 Assembly
These instructions are not to be viewed as assembly instructions; hints and tips are
provided only for trained expert installers. Suitable clothing and personal protection must
be worn for the following work.
Incorrect installation and settings lead to exclusion of liability and warranty.
Partly pre-assembled machines must be checked, introduced and approved by a competent person before
commissioning.
Machine assembly must be carried out by a qualified and competent person.

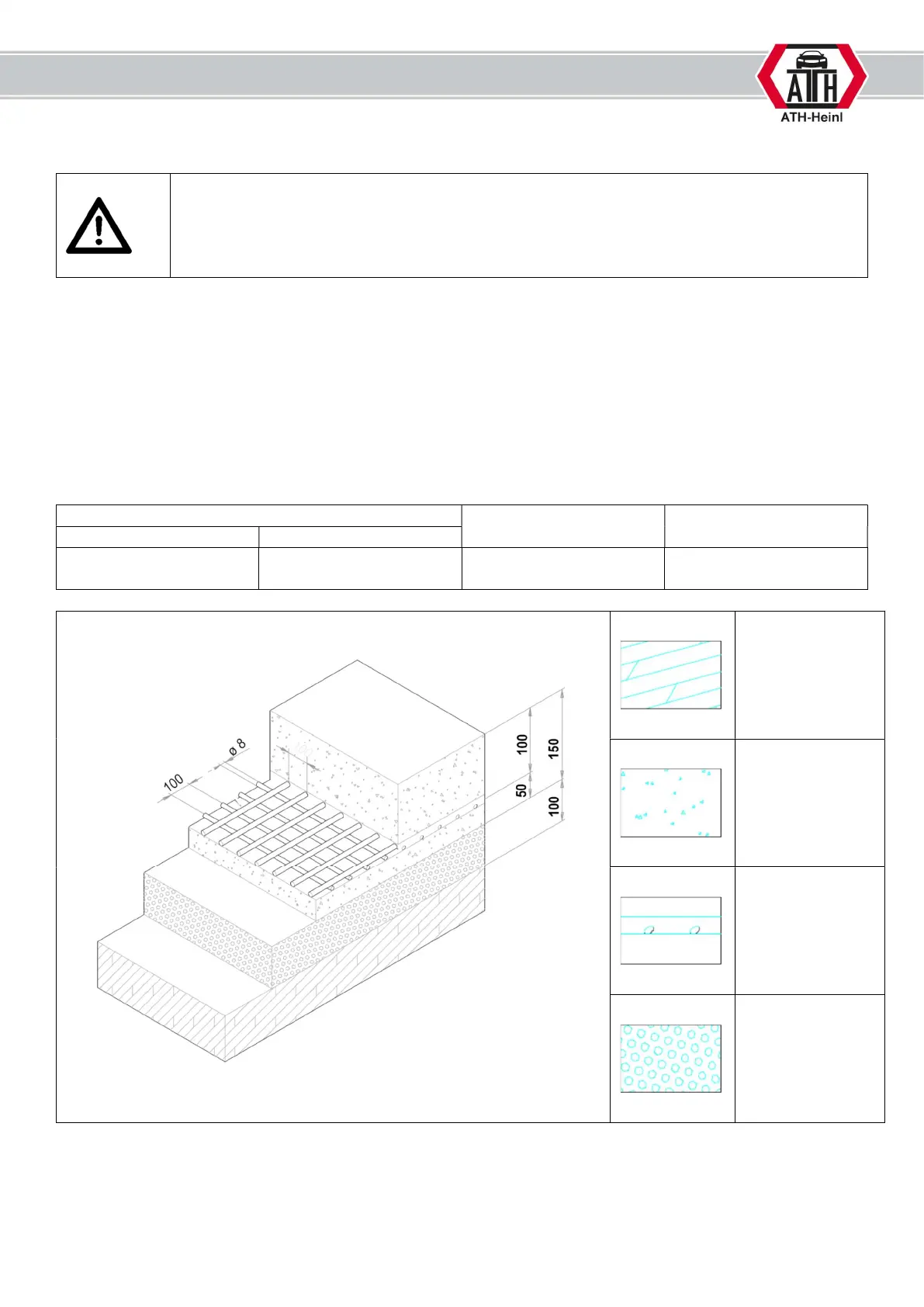

2.9.1. Foundation properties
When assembling on floor coverings, check their load-bearing capacity. A construction expert should be
consulted for inspection when mounting on floor coverings.
Foundation dimensions in mm
Concrete grade Floor load
Length of machine
+ 500 mm
Width of machine
+ 500 mm
B25 according to DIN
1045
425 kg / cm²
Floor
Ferroconcrete
Electro-soldered
grid
Gravel
To Next Page
