1.2 Description
1.2.1 Machine description

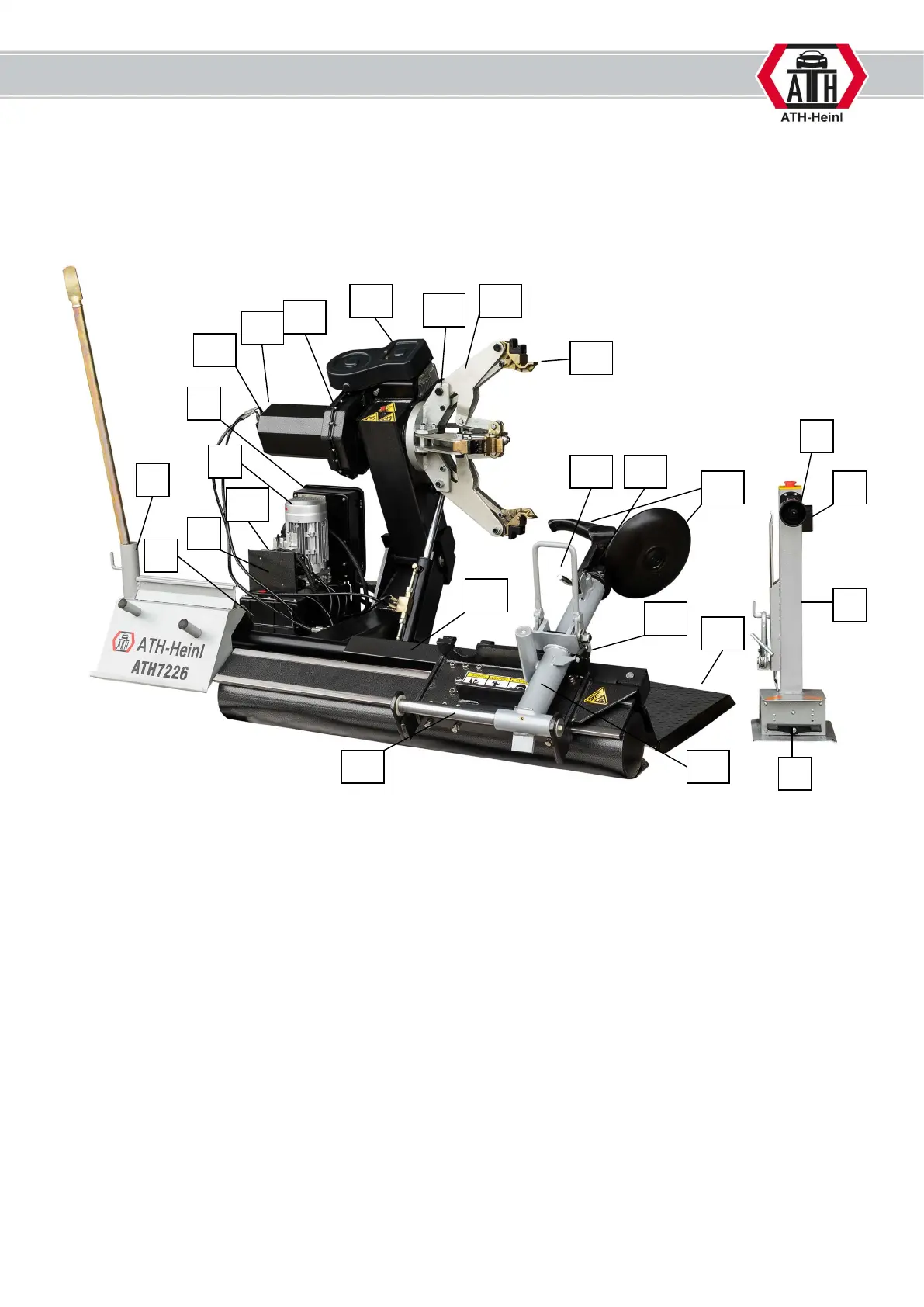

1. Operating unit 2. Switch for mounting head & carriage
3. Switch to open/close clamping jaws
4.
Pedal turner left
-
right clamping head
5. Mounting lever bracket 6. Electrical control box
7. Electrical motor
8. Oil tank
9. Hydraulic valve 10. Valve clamping cylinder
11. Pressure manometer 12. Gearbox
13. Gearbox motor
14. Clamping head
15. Clamping jaws 16. Clamping jaws
17. Mounting lever and disc 18. Pressure limiting valve
19. Mounting arm twist lock
20. Mounting arm
21. Sliding plate for wheel mounting 22. Retaining plate for mounting head
23. Lateral lock for mounting head 24. Manual lateral shift
25. Cylinder for hydraulic lateral shift
