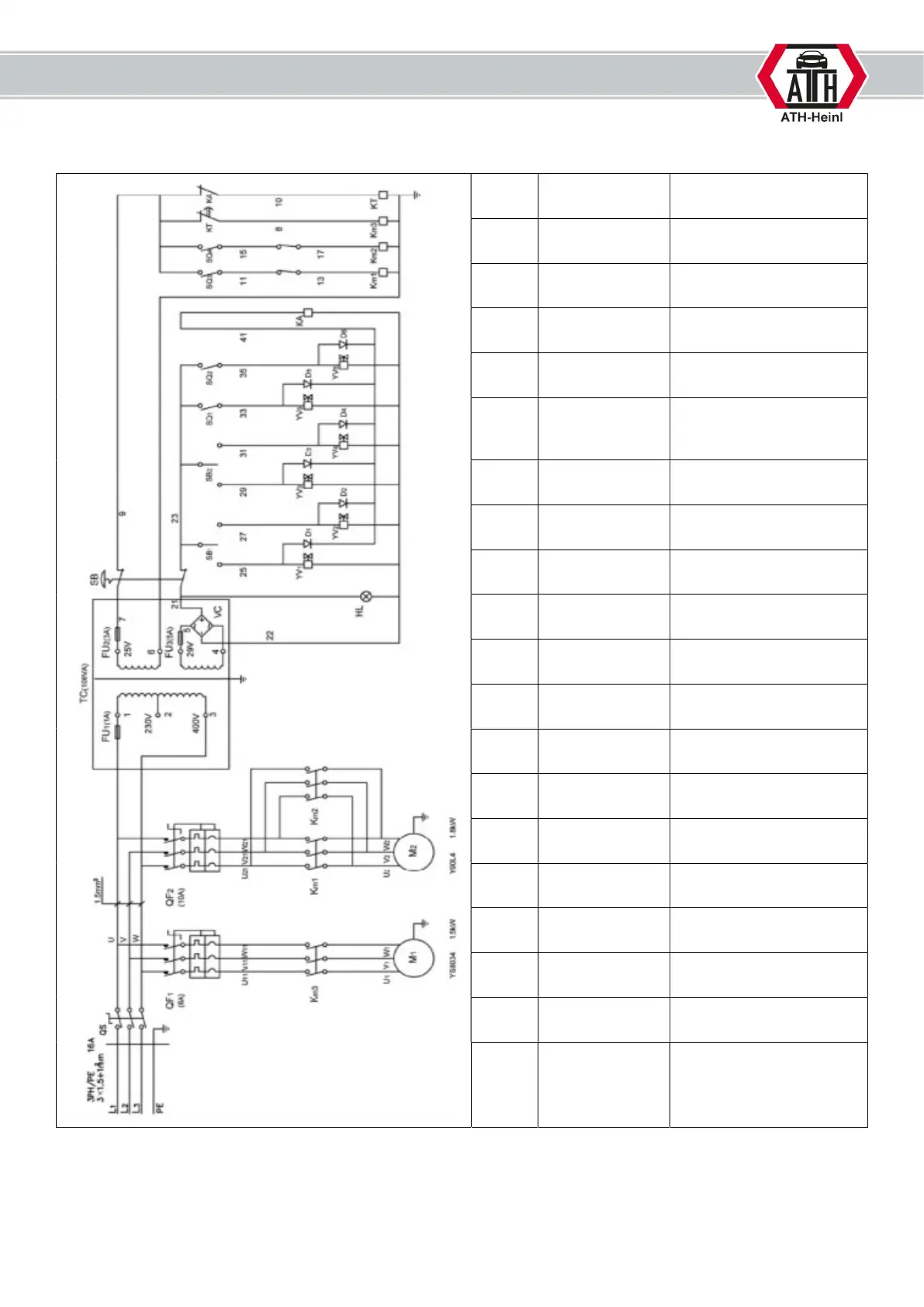

6.2 Electric circuit diagram
# Item # Description
QS RHS0414 Main switch
QF1 RSA0387 Switch for pump
QF2 RSA0387 Switch for motor
Km1 RMS0372
Contactor for clockwise
motor rotation
Km2 RMS0372
Contactor for anti-
clockwise motor
rotation
Km3 RMS0372 Power switch for pump
M1 Pump motor
M2 Gearbox motor
TC RTR0869 Transformer
FU1-
FU3
Fuse
VC RGR0412 Rectifier
HL RSL0389 LED
YV1-
YV6
Solenoid valve
SB1
SB2
Intermediate switch
SQ1
SQ2
Pressure switch
SQ3
SQ4
Microswitch
SB Emergency stop switch
KA Timer
KT Relay
