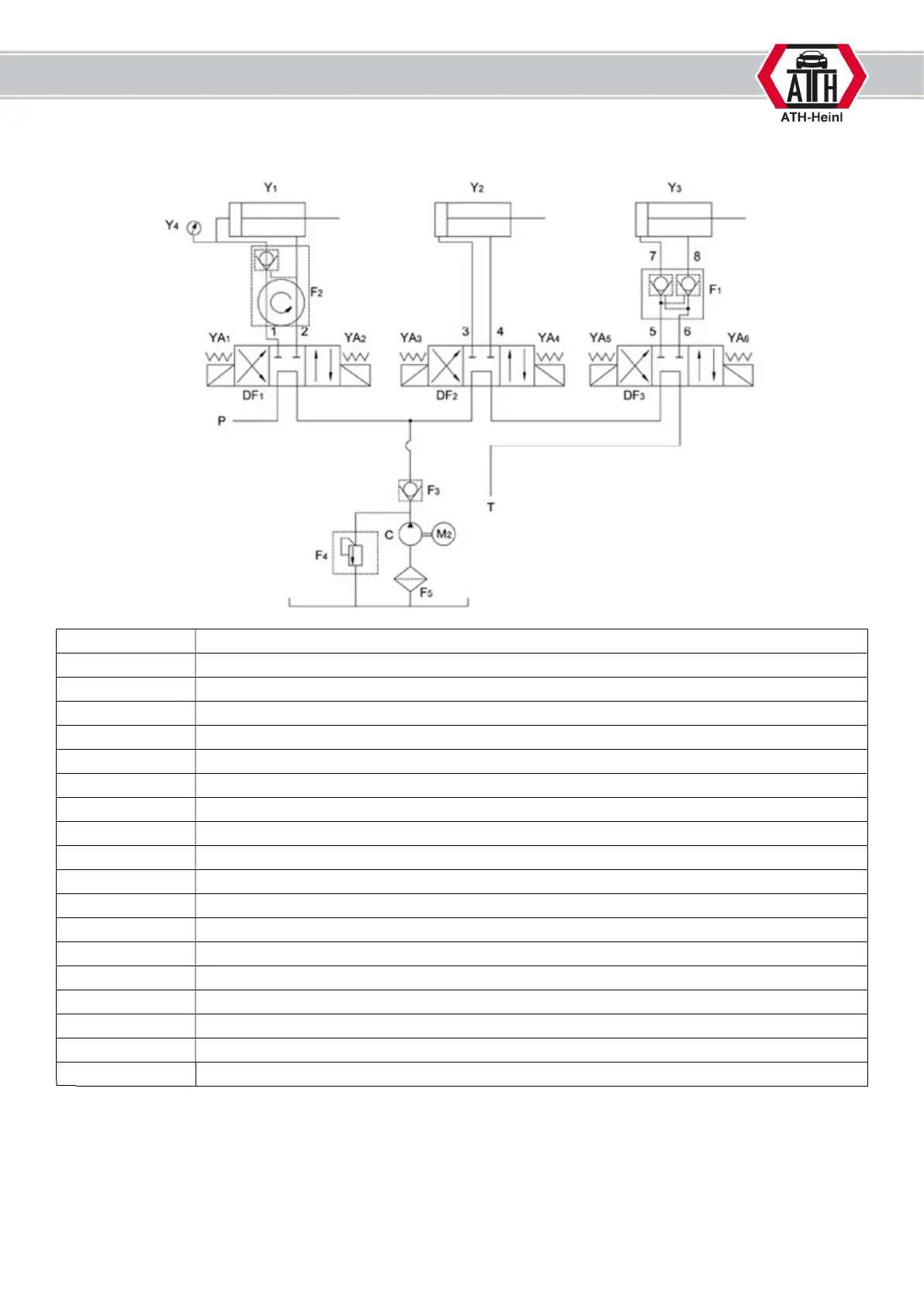

6.3 Hydraulic circuit diagram
Y1 Hydraulic cylinder TGØ95x200
Y2 Hydraulic cylinder TGØ50x1000
Y3 Hydraulic cylinder TGØ50x380
Y4 Manometer Y-40
1, 2 Hydraulic line GPU Ø6-1-4UMPa1200
3, 5, 6 Hydraulic line GPU Ø6-3, 5-4UMPa880
4 Hydraulic line GPU Ø6-3, 5-4UMPa1520
7 Hydraulic cylinder connection Ø8x140
8 Hydraulic cylinder connection Ø8x105
M2 Motor Y-90L4
F1 Hydraulic lock TGF-YS6
F2 Hydraulic swivel connection TGF-HJ4
F3 Check valve TGF-DC6C
F4 Pressure relief valve TGF-YL4-C
F5 Hydraulic filter TGL-M18
DF1-DF3 Hydraulic solenoid valve 4WE6E61/CG24
C Gear pump CBK-2.5
P Oil circuit pressure line
T Oil circulation return
